Partiron

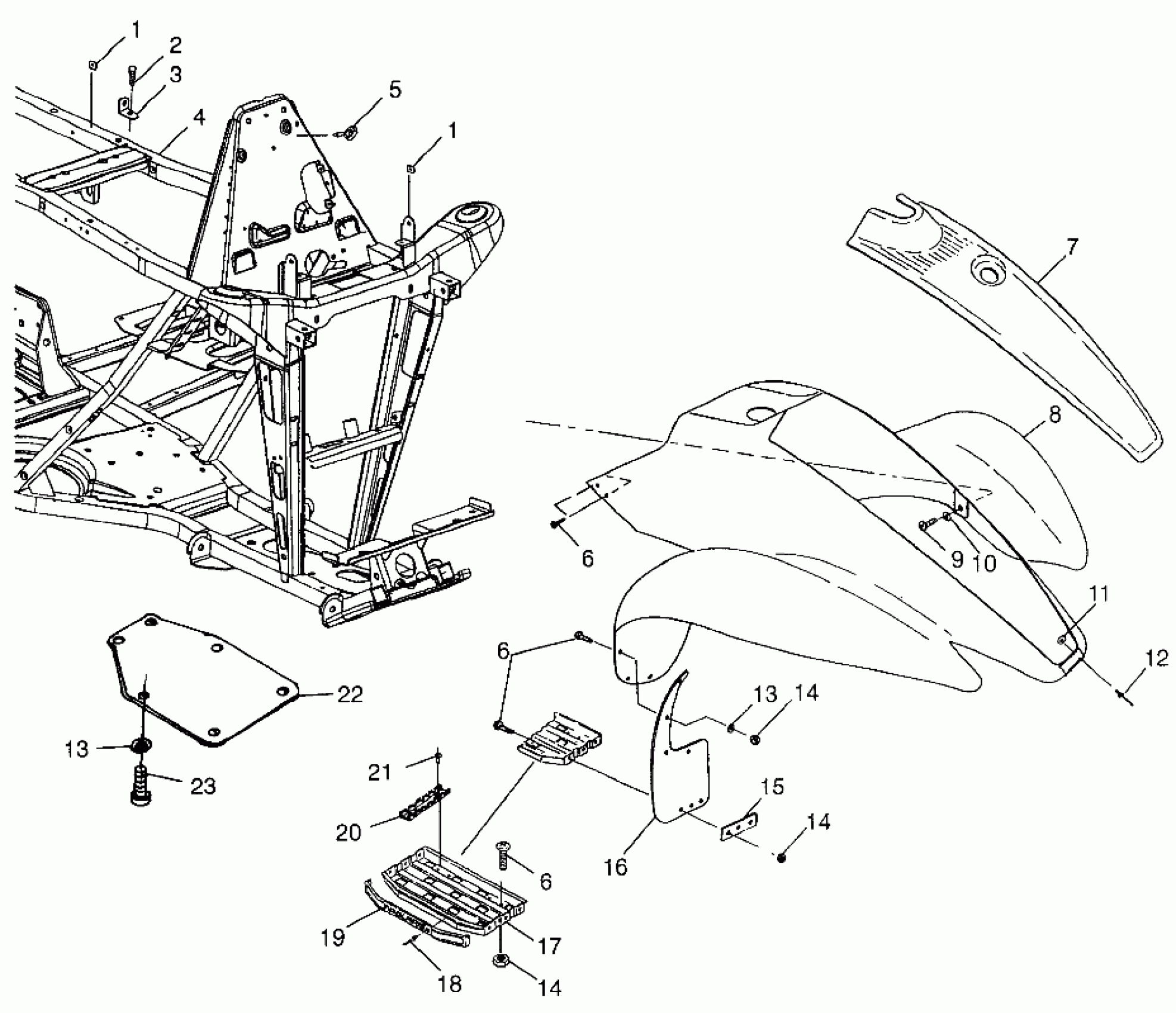

Polaris SCRAMBLER 400 - W98BC38C FRONT CAB Scrambler 400 W98BC38C (4947254725A005) Diagram

#

Description
Price

1

NUT, SPEED(10)

7670060

$3.97

1

NUT, SPEED(10)

7670060

$3.97

2

BOLT(10)

7512232

$1.19

3

BRKT,CAB MOUNT,GEN III,BLK.

5224718-067

$4.92

4

FRAME,MAIN,BLK,(SCR 400)

1040710-067

Unavailable

5

CLAMP,WIRE ROUTING(10)

7080409

$2.38

6

BOLT, BLACK(10)

7512282

Unavailable

6

BOLT, BLACK(10)

7512282

Unavailable

6

BOLT, BLACK(10)

7512282

Unavailable

7

COVER,FR,RED

5431875-136

Unavailable

8

CAB ASM,FR,BRT.WHI. Substituted by 2631988-133 (w/Warning Decals)

2631925-133

Unavailable

9

SCREW(10)

7522026

$4.76

10

WASHER(10) Substituted by 7558301

7555776

$1.19

11

WASHER, FLAT(10)

7558201

$5.79

12

RIVET [No Longer Available]

7621471

Unavailable

13

WASHER, FLAT(10)

7555859

$1.19

13

WASHER, FLAT(10)

7555859

$1.19

14

NUT-LOCK(10)

7542122

$1.19

14

NUT-LOCK(10)

7542122

$1.19

14

NUT-LOCK(10)

7542122

$1.19

15

BRKT, LH MUD FLAP (3 Hole)

5211131-067

Unavailable

15

BRKT,RH MUD FLAP (2 Hole)

5211020-067

Unavailable

16

MUDFLAP,RH,FR.HYBRID

5850150

Unavailable

16

MUDFLAP,LH,FR.HYBRID Substituted by 5811771

5850149

$49.99

17

FOOTPAD,LH,ALUM,HYBRID,BLK.

1040691-067

$69.84

18

RIVET,(50)

7661825

$0.63

19

Trim, Footrest

5431484

Unavailable

20

BRKT,HEEL CLEAT,BLK

5242525-067

$16.35

21

RIVET(50)

7621472

$1.49

22

GUARD,ROCK

5432763

$109.99

23

SCREW(10)

7515179

$2.38
