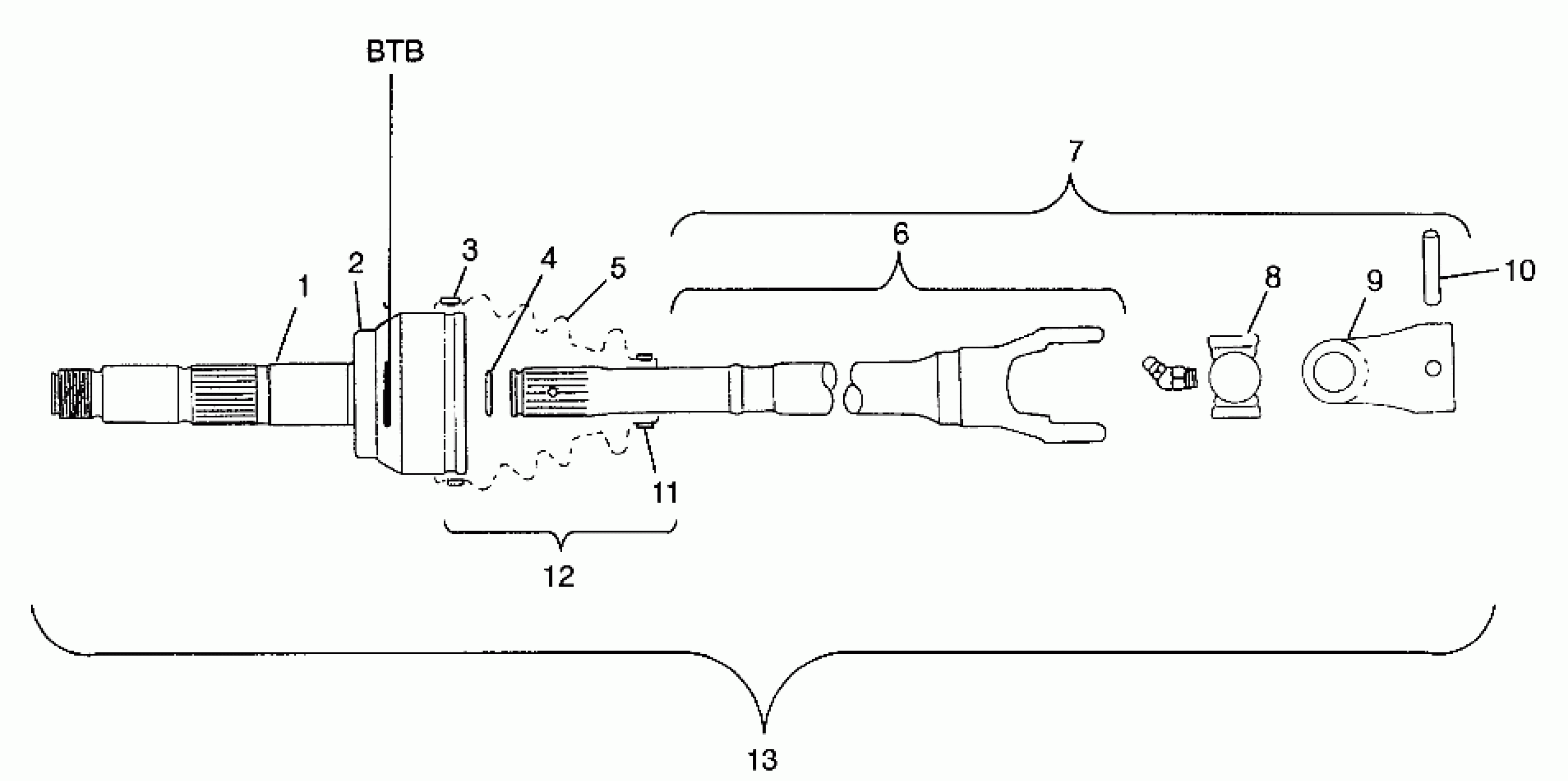

Polaris SCRAMBLER 400 - W98BC38C CV JOINT - BTB Scrambler 400 W98BC38C (4947254725B004) Diagram

#

Description
Price

1

HSG.ASM,CV,BTB,W/SLV.

1380119

Unavailable

2

Sleeve, Seal

5222299

$32.37

3

CLAMP, LARGE(10)

3260115

$9.99

4

CIRCLIP,DRIVESHAFT,BTB

7670091

Unavailable

5

Boot, CV Joint

5411106

Unavailable

6

SHAFT,LONG (Incl. 4)

1380094

$251.74

7

CARDON WELD,LONG (Incl. 4, 6, 8, 9)

1380092

$251.74

8

KIT,CROSS&BEARING

2200771

Unavailable

9

Yoke, Splined

3260130

Unavailable

10

PIN-SPRING,5/16 X 1 5/8-Y

7661913

$3.97

11

CLAMP, BAND

7080627

Unavailable

12

KIT,BOOT,CV JOINT,BTB (Incl. 3, 5, 11)

2200773

Unavailable

13

KIT,DRIVESHAFT,W/SLV,BTB

2200961

$251.74
