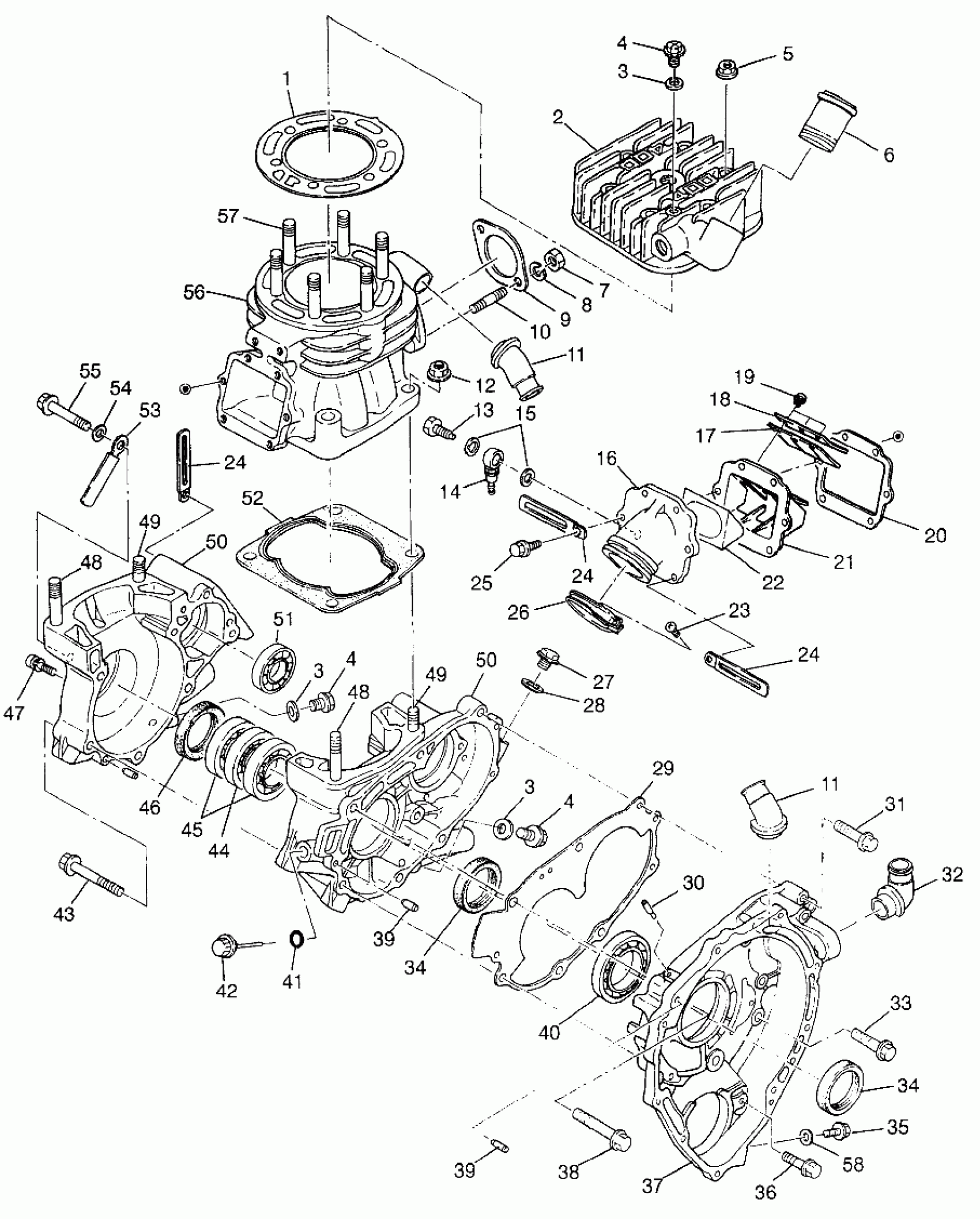

Polaris SCRAMBLER 400 - W98BC38C CRANKCASE and CYLINDER - W98BC38C (4947254725d001) Diagram

#

Description
Price

1

GASKET,HEAD (Head)

3084731

Unavailable

2

HEAD, CYLINDER Substituted by 3086755 (Incl. 6)

3084730

Unavailable

3

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

3

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

3

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

4

PLUG, DRAIN

3083767

Unavailable

4

PLUG, DRAIN

3083767

Unavailable

4

PLUG, DRAIN

3083767

Unavailable

5

NUT-FLANGE(10)

3082910

$2.39

6

PIPE, WATER (Water)

3083452

Unavailable

7

NUT(10)

3080285

Unavailable

8

WASHER LOCK ,(10)

3080530

$3.19

9

GASKET,EXHAUST,NA(10) Substituted by 3086757 (Exhaust) Non-Asbestos

3084439

Unavailable

10

STUD,(10)

3085326

Unavailable

11

PIPE, 1 ELBOW Substituted by 3086746 (Elbow)

3084129

Unavailable

11

PIPE, 1 ELBOW Substituted by 3086746 (Elbow)

3084129

Unavailable

12

NUT-FLANGE(10)

3082911

$1.99

13

BOLT-BANJO

3083137

Unavailable

14

VALVE, CHECK

3083894

Unavailable

15

WASHER(10) Substituted by 7555998

3083138

Unavailable

16

ADAPTER, CARB.

3085277

Unavailable

17

VALVE, REED(10)

3240064

Unavailable

18

Stopper

3240065

Unavailable

19

SCREW&WASHER Substituted by 3084565

3240066

Unavailable

20

GASKET, REED VALVE,(10) (Reed Valve)

3084148

Unavailable

21

VALVE ASM., REED (Incl. 17-19)

3084147

Unavailable

22

STUFFER,(REED VALVE ASM.)

3240164

$9.91

23

SCREW,(10)

3081497

$2.39

24

Clamp

3083590

$3.99

24

Clamp

3083590

$3.99

24

Clamp

3083590

$3.99

25

BOLT, FLANGE Substituted by 3086759 (Adapter)

3084145

Unavailable

26

BAND ASM. (Adapter) (Incl. 23)

3084144

Unavailable

27

PLUG Substituted by 3086749

3083453

Unavailable

28

GASKET

3082956

$4.84

29

GASKET,(CASE 3) Substituted by 3086748 (Case 3)

3084727

Unavailable

30

PIPE, BREATHER (Breather)

3084128

Unavailable

31

BOLT, FLANGE Substituted by 3086751

3084177

Unavailable

32

PIPE, 2 ELBOW Substituted by 3086747 (Elbow)

3084130

Unavailable

33

BOLT, FLANGE ,(10)

3084435

Unavailable

34

Seal, Oil

3084120

Unavailable

34

Seal, Oil

3084120

Unavailable

35

PLUG

3085152

Unavailable

36

Bolt, Flange

3084126

Unavailable

37

CRANKCASE ASM,#3 Substituted by 3086745 (See Footnote) (Incl. 11,30,32,34,35,39,40,58)

3085650

Unavailable

38

Bolt, Flange

3084134

Unavailable

39

PIN, DOWEL Substituted by 3086838

3080103

$7.14

39

PIN, DOWEL Substituted by 3086838

3080103

$7.14

40

Bearing, Ball

3084131

Unavailable

41

O-Ring

3084733

Unavailable

42

GAUGE, OIL Substituted by 3085517

3084732

Unavailable

43

BOLT, FLANGE Substituted by 3086742

3084125

Unavailable

44

Bearing, Ball

3084775

$43.99

45

Bearing, Ball

3084121

$39.99

46

Seal, Oil

3084725

Unavailable

47

SCREW & WASHER(10)

3084205

$3.99

48

Stud

3084118

Unavailable

48

Stud

3084118

Unavailable

49

Stud

3084119

$9.59

49

Stud

3084119

$9.59

50

CRANKCASE ASM. Substituted by 3086740 (See Footnote) (Incl. 3,4,34,36,39,43-46,48-51,55)

3084774

Unavailable

50

CRANKCASE ASM. Substituted by 3086740 (See Footnote) (Incl. 3,4,34,36,39,43-46,48-51,55)

3084774

Unavailable

51

Bearing, Ball

3084123

Unavailable

52

GASKET,CYLINDER

3084729

$48.56

53

Clamp

3083384

Unavailable

54

WASHER(10)

3080142

$3.99

55

Bolt, Flange

3084124

$6.23

56

CYLINDER Substituted by 3086753 (Incl. 10,11,57)

3085276

Unavailable

57

Stud

3084138

Unavailable

58

GASKET,ALUMINUM(10)

3083482

$3.22
