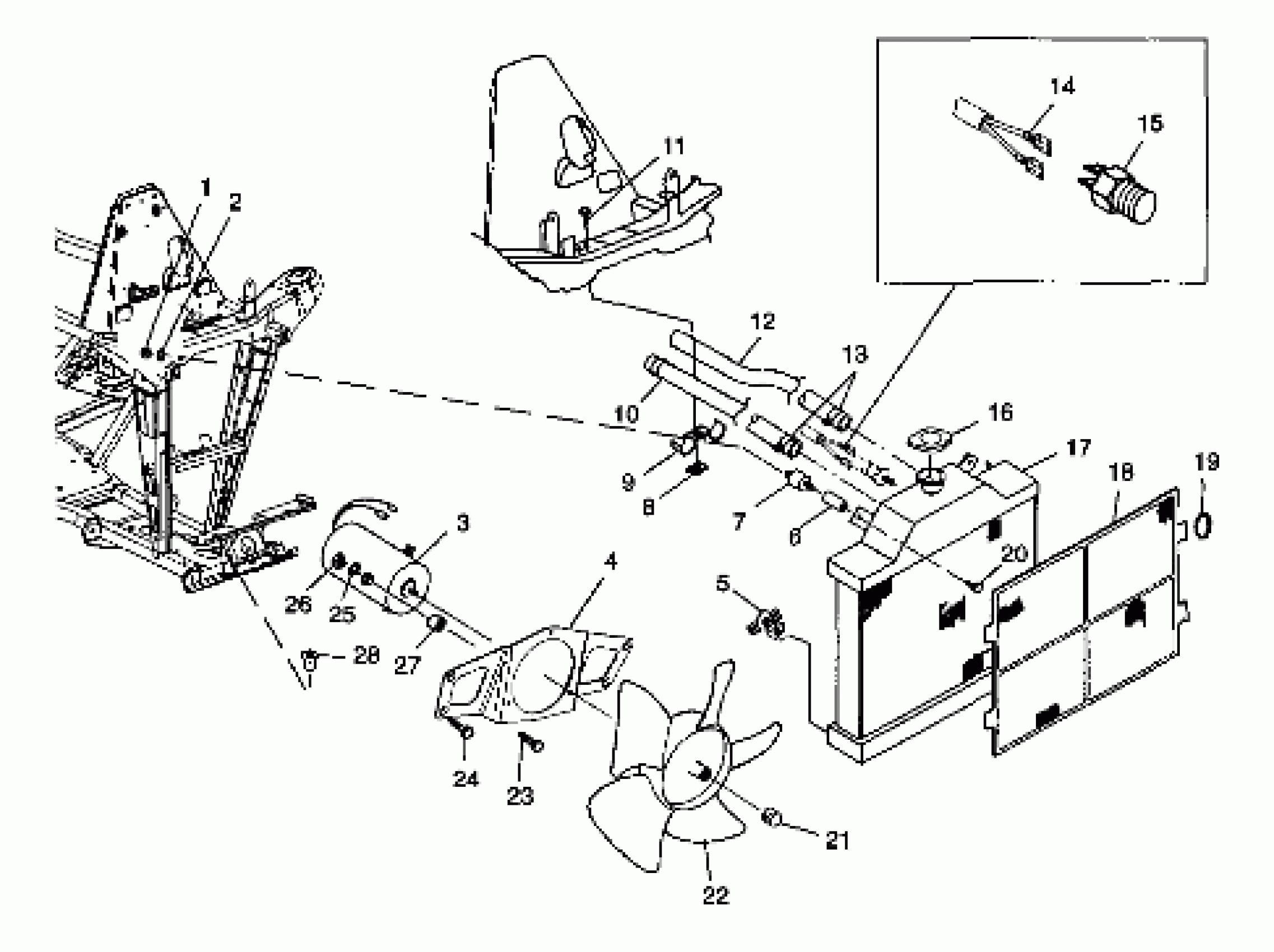

Polaris SCRAMBLER 400 - W98BC38C COOLING SYSTEM Scrambler 400 W98BC38C (4947254725A011) Diagram

#

Description
Price

1

NUT-LOCK(10)

7542122

$1.49

2

WASHER(10)

7558301

$1.49

3

MOTOR,FAN,D-SHAFT,STD

2410121

$259.99

4

BRKT.COOL.FAN,BLK

5241355-067

Unavailable

5

VALVE,DRAIN COCK

7052181

Unavailable

6

SPACER,RADIATOR MNT

5020937

Unavailable

7

Mount, Rubber

3110032

$7.99

8

NUT, SPEED(10)

7670057

$1.49

9

DESC NOT_AVAILABLE

7080798

Unavailable

10

Hose, Upper Engine (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

11

BOLT(10)

7512238

Unavailable

12

Hose, Lower Engine (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

13

CLAMP,HOSE,(10)

7080614

$7.19

14

HARNESS,FAN/THERM.SWITCH

2460515

Unavailable

15

SWITCH,THERMAL,FAN,L/C

4110226

Unavailable

16

CAP, RADIATOR Substituted by 2511270

2511189

Unavailable

17

RADIATOR,"U"FLOW

1240015

Unavailable

18

COVER,RADIATOR,W/MESH

5431610

Unavailable

19

O RING

5410607

$5.99

20

SCREW(10)

7515133

$3.99

21

CLAMP-FAN BLADE [No Longer Available]

7080680

Unavailable

22

BLADE,FAN,NYLON,8"

5242550

Unavailable

23

SCREW

7517221

$1.83

24

BOLT(10)

7512232

$1.49

25

WASHER, FLAT(10)

7558201

$5.79

26

Nut

7547004

$4.79

27

SPACER,FAN BRACKET

5432870

$10.29

28

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59
