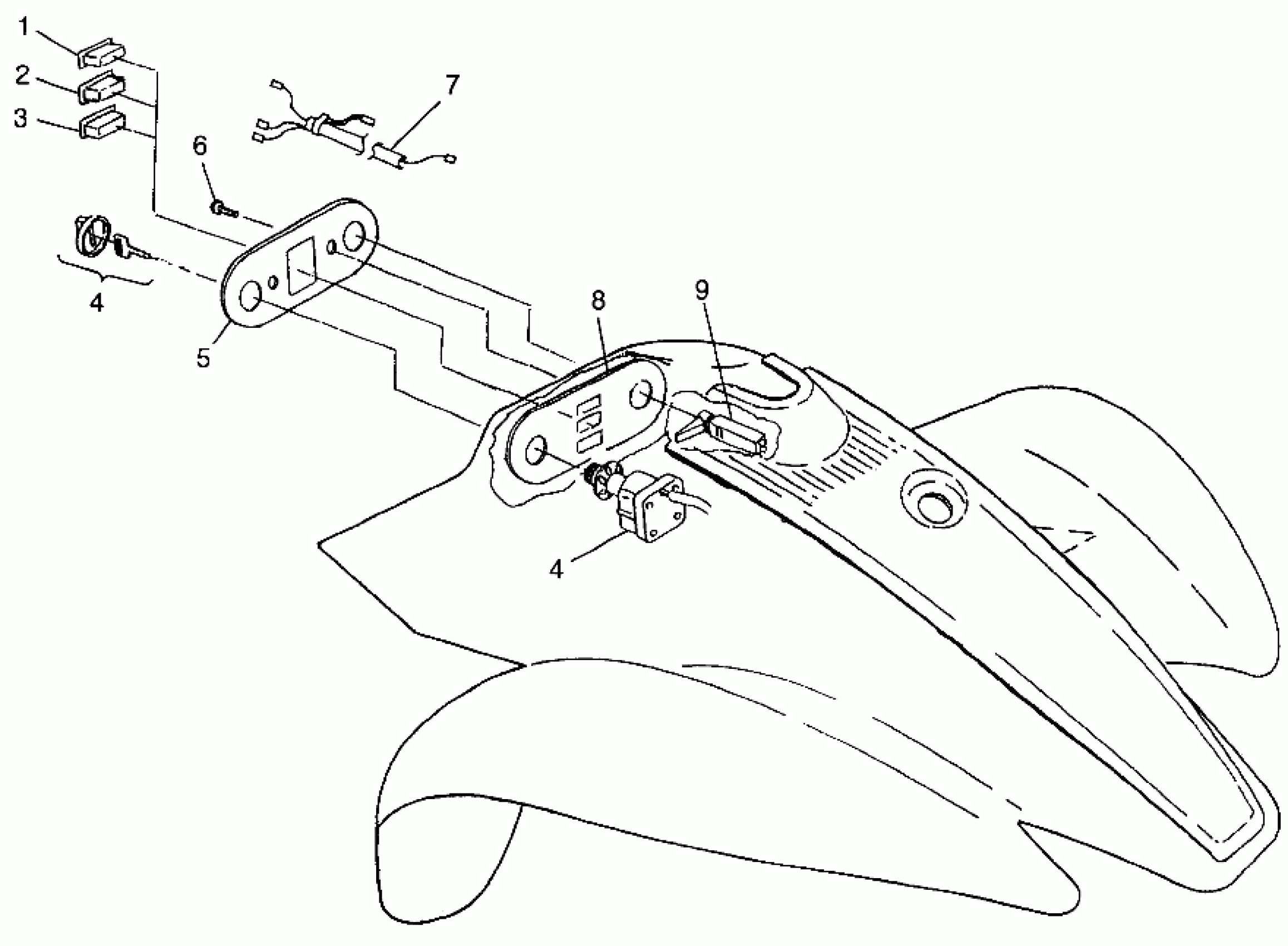

Polaris SCRAMBLER 400 - W98BC38C CONTROL PANEL Scrambler 400 W98BC38C (4947254725A008) Diagram

#

Description

Price

1

INDIC"LOW OIL&HI-BEAM."

4040052

$31.99

2

INDIC"NEUT./REV."

4040054

$31.99

3

INDIC"HOT TEMPERATURE"

4040053

$31.99

4

SWITCH, IGNITION (Incl. Key) NOTE: Ignition key blank may be

4110194

Unavailable

4

DESC NOT_AVAILABLE NOTE: Ignition Key may be ordered by using the 4 digit number on the key.

4110148-32XX

Unavailable

4

SWITCH, IGNITION (Incl. Key) NOTE: Ignition key blank may be

4110194

Unavailable

4

DESC NOT_AVAILABLE NOTE: Ignition Key may be ordered by using the 4 digit number on the key.

4110148-32XX

Unavailable

5

PANEL,CONTROL,OUTER

5431976

Unavailable

6

SCREW(10)

7512026

$1.49

7

HARNESS,CONTROL PANEL

2460521

Unavailable

8

PANEL,CONTROL,INNER

5431975

$17.43

9

CABLE, CHOKE

7080371

$97.13
