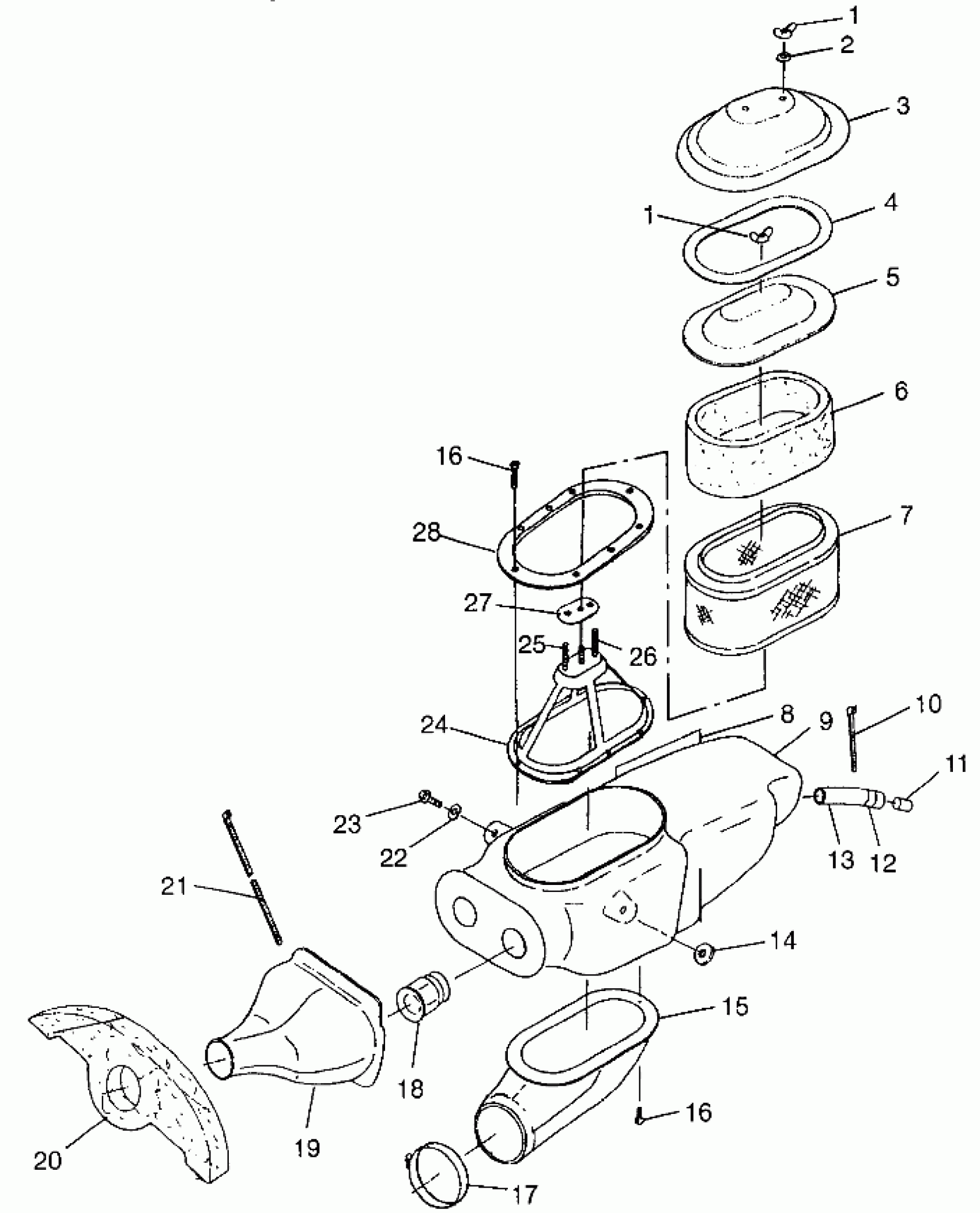

Polaris SCRAMBLER 400 - W98BC38C AIR BOX Scrambler 400 W98BC38C (4947254725C009) Diagram

#

Description
Price

1

NUT,WING(10)

7542127

$1.49

1

NUT,WING(10)

7542127

$1.49

2

WASHER(10) Substituted by 7558301

7555776

Unavailable

3

COVER,AIR BOX

5240424

Unavailable

4

GASKET,COVER

5810948

Unavailable

5

COVER, AIR BOX

5240336

Unavailable

6

FOAM,PRECLEANER,SLEEVE

5811099

Unavailable

7

FILTER,AIR

1253118

$27.99

8

FOIL, AIRBOX

5810966

$15.67

9

BOX,AIR SILENCER

5432883

Unavailable

10

STRAP, PANDUIT,4 IN.(10)

7080483

Unavailable

11

CAP, PLUG(10)

7080487

$1.67

12

CLAMP, HOSE, S.S.(10)

7080476

$6.39

13

FUELLINE,3/18 ID,600CM. Substituted by 2871058

8450051-600

Unavailable

14

WASHER,NYLON

7555932

$2.39

15

BOOT,CARB,400 HYBRID

5411413

Unavailable

16

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

16

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

17

CLAMP,NOTCHED(10)

7080643

Unavailable

18

VENTURA,INTAKE

5431698

Unavailable

19

BOOT,AIR SILENCER

5410934

Unavailable

20

FOAM,COLLAR

5811102

$27.99

21

STRAP, CABLE(10)

7080598

Unavailable

22

WASHER(10)

7558301

$1.49

23

SCREW(10)

7515180

Unavailable

24

STAND,FILTER

5432607

$39.99

25

STUD(10)

7515150

Unavailable

26

STUD(10)

7515151

Unavailable

27

SEAL,FOAM,AIRBOX

5811012

Unavailable

28

PLATE,AIR BOX

5211804

Unavailable
