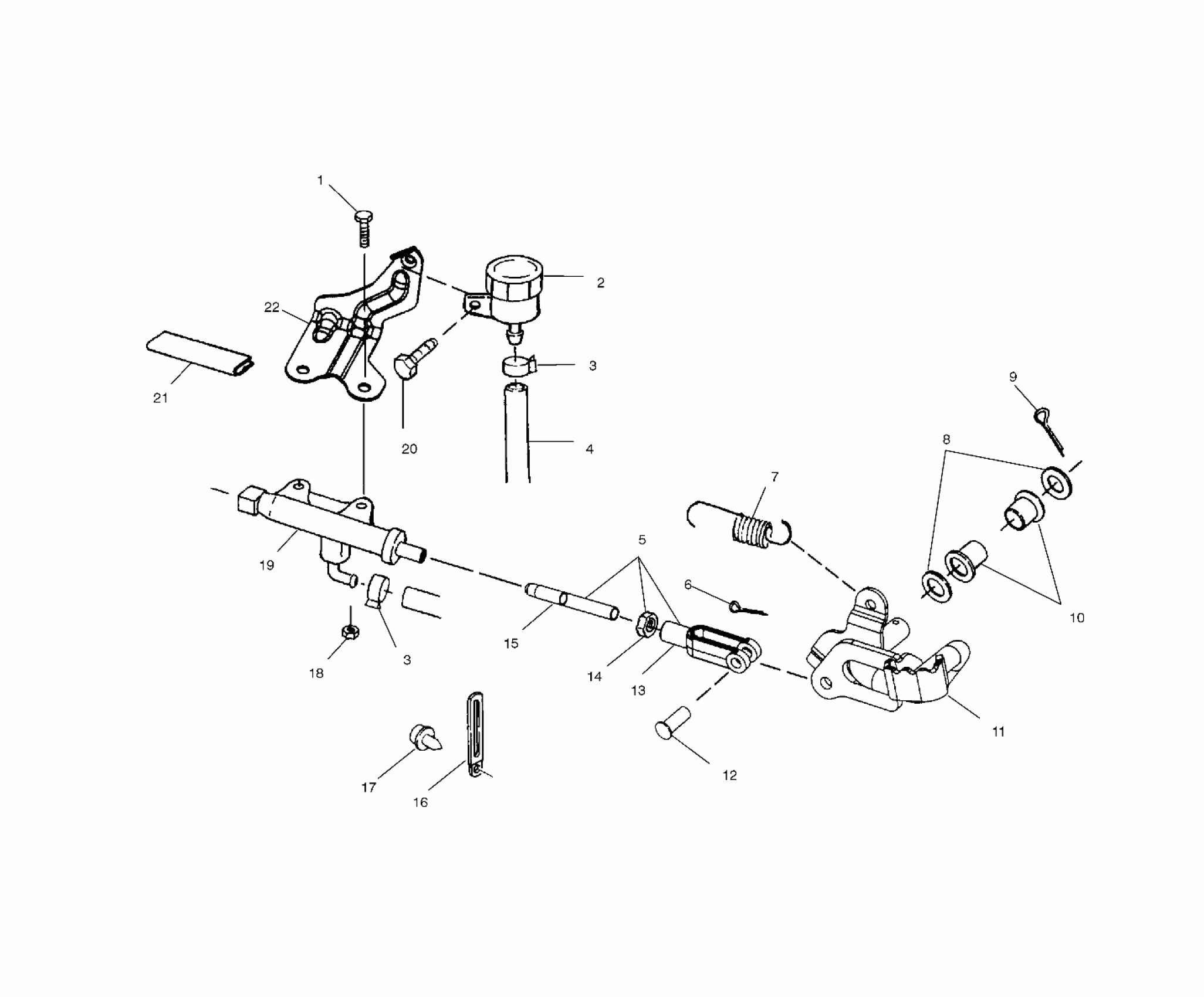

Polaris SCRAMBLER 400 - A99BG38CB REAR BRAKE MASTER CYLINDER - A99BG38CB (4952505250c003) Diagram

#

Description
Price

1

BOLT(10)

7512247

Unavailable

2

RESERVOIR ASM,R.BRAKE

1930854

Unavailable

3

HOSE CLAMP, RED

7080003

$1.19

3

HOSE CLAMP, RED

7080003

$1.19

4

HOSE-RESERVOIR,1/4 1D,10 IN

1910332

$4.13

5

PLUNGER,BRAKE,HYBRID

1910314

Unavailable

6

PIN, COTTER(10)

7661011

$4.76

7

SPRING-EXTENSION,2.90" FREE LG

7041769

$18.99

8

WASHER(10)

7555919

$4.99

9

COTTER PIN(10)

7661401

$0.79

10

BUSHING-PEDAL PIVOT

5431107

$8.73

11

BRAKE(FOOT)HYBRID,GEN3,BL.

1012844-067

$47.62

12

CLEVIS(10)

7661843

$2.38

13

CLEVIS,THREADED

7080644

Unavailable

14

NUT(10)

7542129

$4.76

15

PLUNGER,BRAKE,HYBRID,GEN4

5243066

Unavailable

16

RETAINER,SS.

7080654

$18.32

17

SCREW, SEM(10)

7511862

Unavailable

18

NUT-LOCK(10)

7542122

$1.19

19

MASTER CYL.ASM,FOOTBRAKE

1930899

Unavailable

20

SCREW(10)

7512208

$2.74

21

EDGE TRIM-BLACK,04 CM

8360012-04

$44.51

22

BRKT-RESERVOIR MOUNT,BLK Substituted by 5244091-067

5243220-067

$5.71
