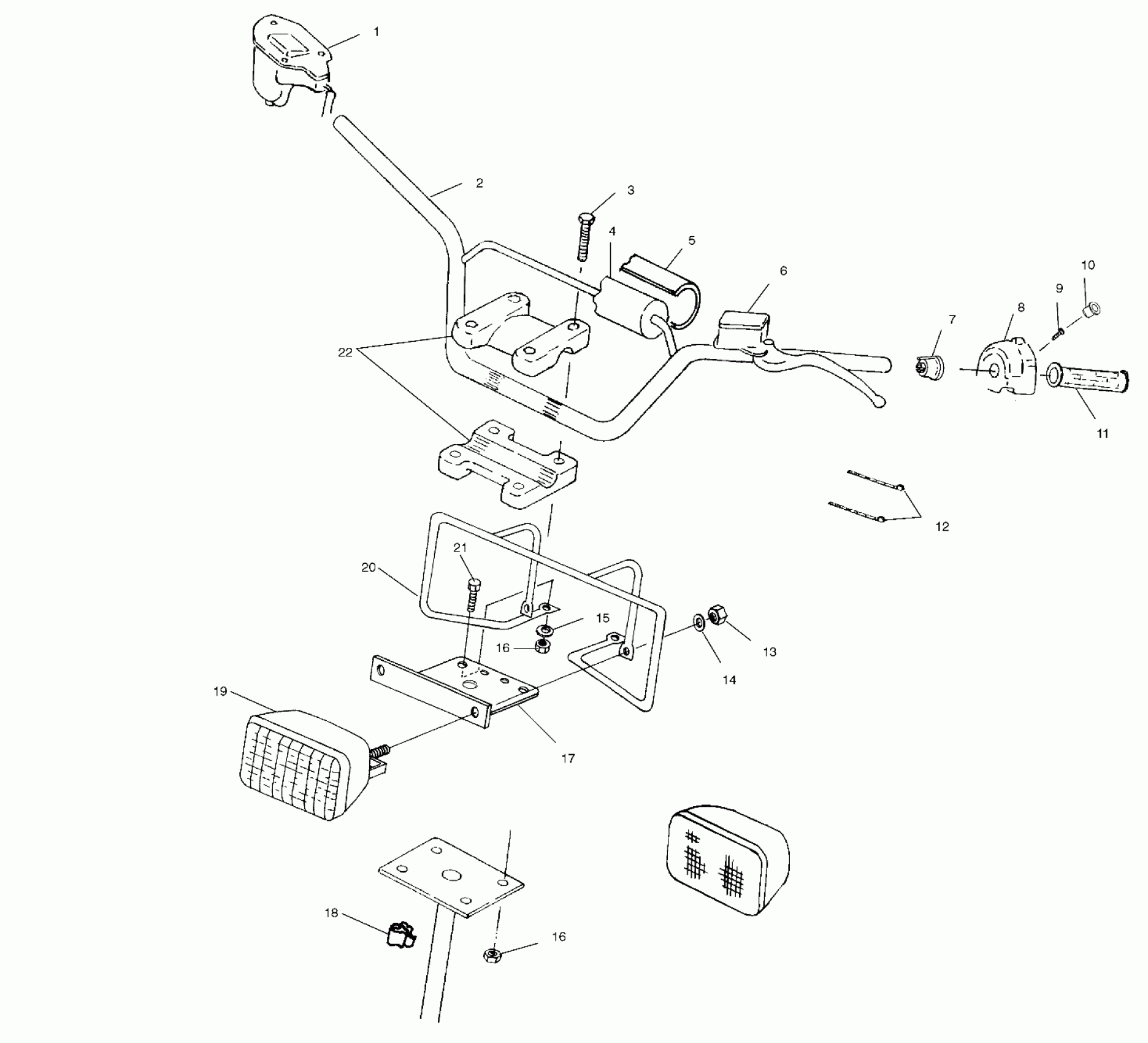

Polaris SCRAMBLER 400 - A99BG38CB HANDLEBAR/HEADLIGHT - A99BG38CB (4952505250b009) Diagram

#

Description
Price

-

KIT,H'BAR BLOCK (Incl. 3,16,22)

2200774

Unavailable

1

Asm., Throttle Control (See Footnote) (See Controls - Throttle Asm./Cable Pg. B11, Ref. 3)

-------

Unavailable

2

HANDLE BAR,BLK

1820594-067

Unavailable

3

SCREW(10)

7515189

Unavailable

4

Pad, Handlebar

5521181

Unavailable

5

COVER ASM,H'BAR PAD

2690149

$39.67

6

Asm., Master Cylinder (See Footnote) (See Controls - Master Cylinder/Brake Line Pg. B12, Ref. 1)

-------

Unavailable

7

SPACER,SWITCH,LH

5432926

$2.63

8

SWITCH-HANDLEBAR,HI/LO/OFF,2P

4010191

$169.98

9

SCREW,SET

7517625

$4.79

10

PLUG,HOLE(10)

5432952

$5.59

11

GRIP, HANDLEBAR

5431030

$24.27

12

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

13

NUT-5/16-18 NYLOK-Y

7542324

$1.49

14

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

15

WASHER(10)

7558301

$1.49

16

NUT-LOCK(10)

7542122

$1.49

16

NUT-LOCK(10)

7542122

$1.49

17

BRKT,H/L,BLK

5241973-067

Unavailable

18

CLIP,CABLE RETAIN,(10)

7080631

$6.29

19

BULB,H/L,30/30 W.

4030061

Unavailable

19

H/L ASM,35/35W,BOTT.MT.

2431016

Unavailable

20

GUARD,H/L,BLK.

1040579-067

Unavailable

21

BOLT(10) Substituted by 7512240

7512111

Unavailable

22

BLOCK,H'BAR RETAINER,BLK

5630616-067

Unavailable
