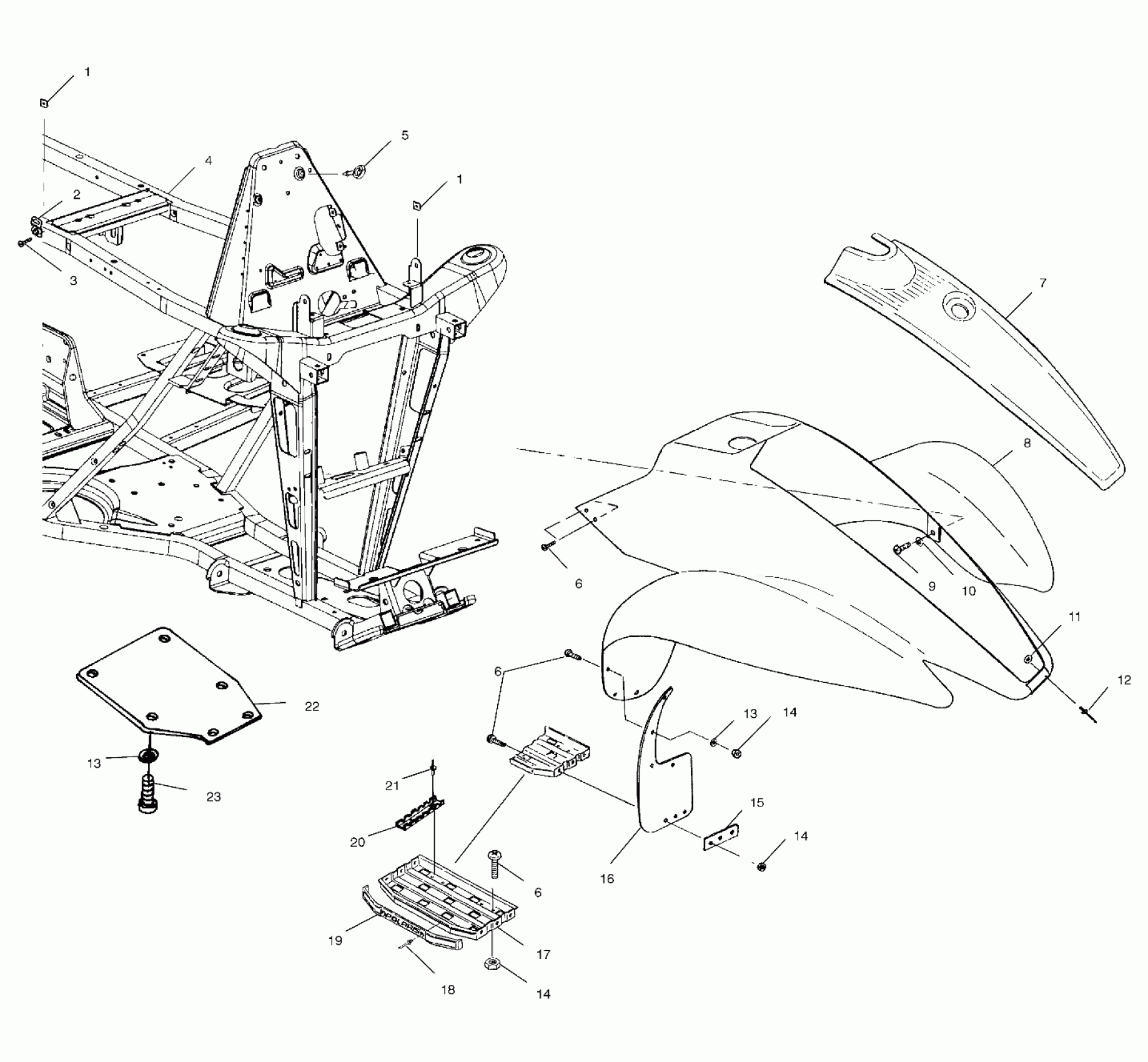

Polaris SCRAMBLER 400 - A99BG38CB FRONT CAB - A99BG38CB (4952505250a005) Diagram

#

Description
Price

1

NUT, SPEED(10)

7670060

$3.99

1

NUT, SPEED(10)

7670060

$3.99

2

BRKT,CAB MOUNT,GEN III,BLK.

5224718-067

$4.95

3

BOLT(10)

7512232

$1.49

4

FRAME-MAIN,SCR/SPORT,BLK.

1012847-067

Unavailable

5

CLAMP,WIRE ROUTING(10)

7080409

$2.39

6

BOLT, BLACK(10)

7512282

$1.49

6

BOLT, BLACK(10)

7512282

$1.49

6

BOLT, BLACK(10)

7512282

$1.49

7

COVER,FR,RED

5431875-136

Unavailable

8

CAB,FRONT,SVC,BR.WH. Substituted by 2632424-133 (w/Warning Decals)

2631988-133

Unavailable

9

SCREW(10)

7522026

$4.79

10

WASHER(10)

7558301

$1.49

11

WASHER, FLAT(10)

7558201

$5.79

12

RIVET [No Longer Available]

7621471

Unavailable

13

WASHER, FLAT(10)

7555859

$1.49

13

WASHER, FLAT(10)

7555859

$1.49

14

NUT-LOCK(10)

7542122

$1.49

14

NUT-LOCK(10)

7542122

$1.49

14

NUT-LOCK(10)

7542122

$1.49

15

BRKT, LH MUD FLAP

5211131-067

Unavailable

16

MUDFLAP,RH,FR.HYBRID

5850150

Unavailable

16

MUDFLAP-FRONT,HYBRID,LH Substituted by 5811831

5811771

Unavailable

17

FOOTPAD,LH,ALUM,HYBRID,BLK.

1040691-067

$70.39

18

RIVET,(50)

7661825

$1.49

19

Trim, Footrest

5431484

Unavailable

20

BRKT,HEEL CLEAT,BLK

5242525-067

$16.47

21

RIVET(50)

7621472

$1.49

22

GUARD,ROCK

5432763

$87.99

23

SCREW(10)

7515179

$2.39
