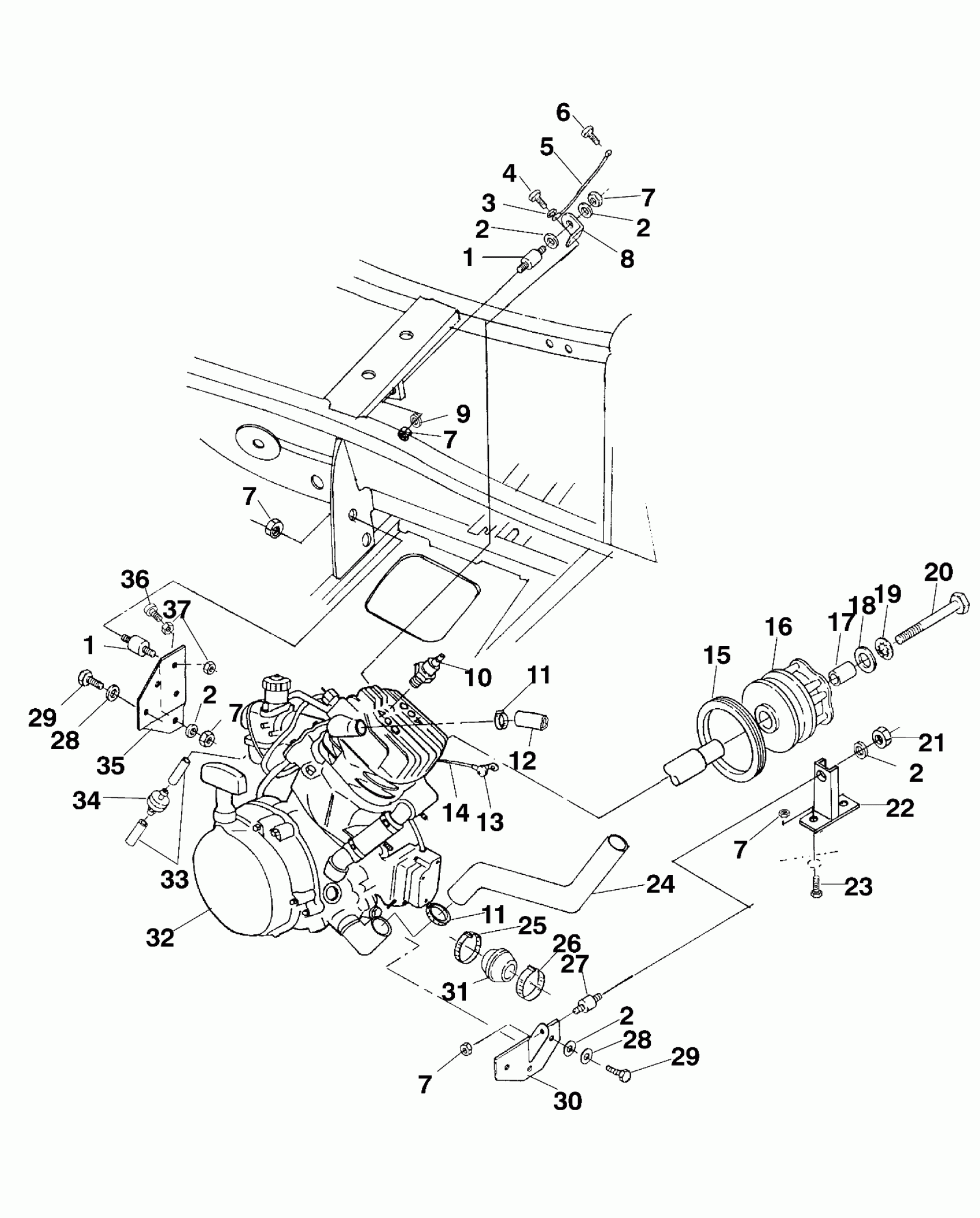

Polaris SCRAMBLER 400 - A99BG38CB ENGINE MOUNTING - A99BG38CB (4952505250a009) Diagram

#

Description
Price

1

MT.,RUBBER,ENG.

3110038

Unavailable

1

MT.,RUBBER,ENG.

3110038

Unavailable

2

WASHER(10)

7555806

$1.49

2

WASHER(10)

7555806

$1.49

2

WASHER(10)

7555806

$1.49

2

WASHER(10)

7555806

$1.49

2

WASHER(10)

7555806

$1.49

3

LOCK WASHER(10)

7552901

$1.49

4

BOLT(10)

7515321

$1.49

5

CABLE,GND-ENGINE

4010132

Unavailable

6

BOLT(10)

7512232

$1.49

7

NUT LOCK(10)

7542411

$3.19

7

NUT LOCK(10)

7542411

$3.19

7

NUT LOCK(10)

7542411

$3.19

7

NUT LOCK(10)

7542411

$3.19

7

NUT LOCK(10)

7542411

$3.19

7

NUT LOCK(10)

7542411

$3.19

8

BRKT,ENG.MT,TOP,BLK,400

5242692-067

Unavailable

9

WASHER(10)

7555801

$3.99

10

SPARKPLUG (10)

3070156

$3.99

11

CLAMP,HOSE,(10)

7080614

$7.19

11

CLAMP,HOSE,(10)

7080614

$7.19

12

HOSE,ENG,UPPER

5410570

$44.51

13

INSULATOR-CABLE

5410346

$6.39

14

CABLE-RED,SOL/STRTR,DBLBOOT34"

4010218

$47.99

15

Seal, Cover Case (See Footnote) (See Clutch Cover Pg. C6, Ref. 3)

-------

Unavailable

16

Asm., Drive Clutch, Basic ATV-06 (See Footnote) (See Drive Clutch Pg. B13, Ref. 14)

-------

Unavailable

17

BUSHING-.437 X.770 X.50

5430261

$7.19

18

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

19

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

20

BOLT(10)

7512566

$30.79

21

NUT LOCK(10)

7542403

$3.99

22

MOUNT,FR.ENGINE,BLK.

1040687-067

$15.56

23

BOLT(10)

7512457

$3.99

24

HOSE,FORMED,3/4X21.75,W/ CHAFE

5411637

Unavailable

25

CLAMP,BAND,NARROW

7080413

$3.19

26

CLAMP, NARROW BAND(10)

7080511

$4.79

27

MOUNT,RUBBER,ENG.

3110042

Unavailable

28

WASHER(10)

7552603

$1.49

28

WASHER(10)

7552603

$1.49

29

SCREW(10)

7512490

$3.99

29

SCREW(10)

7512490

$3.99

30

MOUNT,ENGINE

1040231-067

Unavailable

31

BOOT,CLUTCH INLET,2.4X2.1X5.2

5411681

Unavailable

32

ENG.EC38PLE08,09,11 [No Longer Available] (See Footnote) NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior

3085821

Unavailable

33

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

34

VENT,CHECKVALVE

7051011

Unavailable

35

BRKT,ENG.MT,REAR,BLK

5242463-067

$56.99

36

MT,TORQUE STOP,RUBBER

3110048

$7.43

37

NUT, JAM(10)

7542432

$3.99
