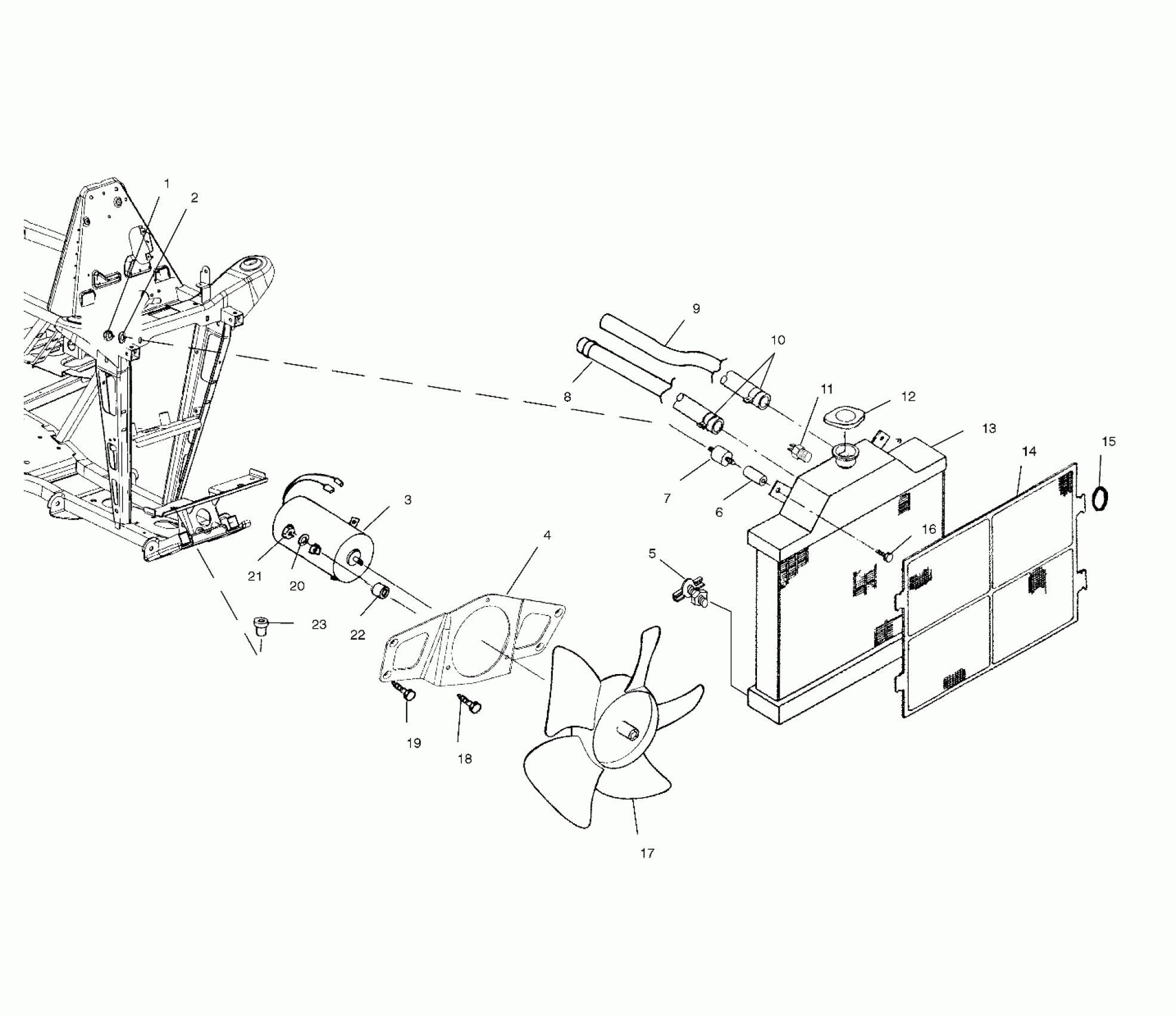

Polaris SCRAMBLER 400 - A99BG38CB COOLING SYSTEM - A99BG38CB (4952505250a011) Diagram

#

Description
Price

1

NUT-LOCK(10)

7542122

$1.49

2

WASHER(10)

7558301

$1.49

3

MOTOR,FAN,LIQ,D-SHAFT,CONN

4170013

Unavailable

4

BRKT.COOL.FAN,BLK

5241355-067

Unavailable

5

VALVE,DRAIN COCK

7052181

Unavailable

6

SPACER,RADIATOR MNT

5020937

Unavailable

7

Mount, Rubber

3110032

$7.99

8

Hose, Upper Engine (See Footnote) (See Engine Mounting Pg. A10, Ref. 12)

-------

Unavailable

9

Hose, Lower Engine (See Footnote) (See Engine Mounting Pg. A10, Ref. 24)

-------

Unavailable

10

CLAMP,HOSE,(10)

7080614

$7.19

11

SWITCH,THERMAL,FAN,L/C

4110226

Unavailable

12

CAP, RADIATOR Substituted by 2511270

2511189

Unavailable

13

RADIATOR,"U"FLOW

1240015

Unavailable

14

COVER,RADIATOR,W/MESH

5431610

Unavailable

15

O RING

5410607

$5.99

16

SCREW(10)

7515133

$3.99

17

BLADE,FAN,NYLON,8"

5242550

Unavailable

18

SCREW

7517475

Unavailable

19

BOLT(10)

7512232

$1.49

20

WASHER, FLAT(10)

7558201

$5.79

21

Nut

7547004

$4.79

22

SPACER,FAN BRACKET

5432870

$10.29

23

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59
