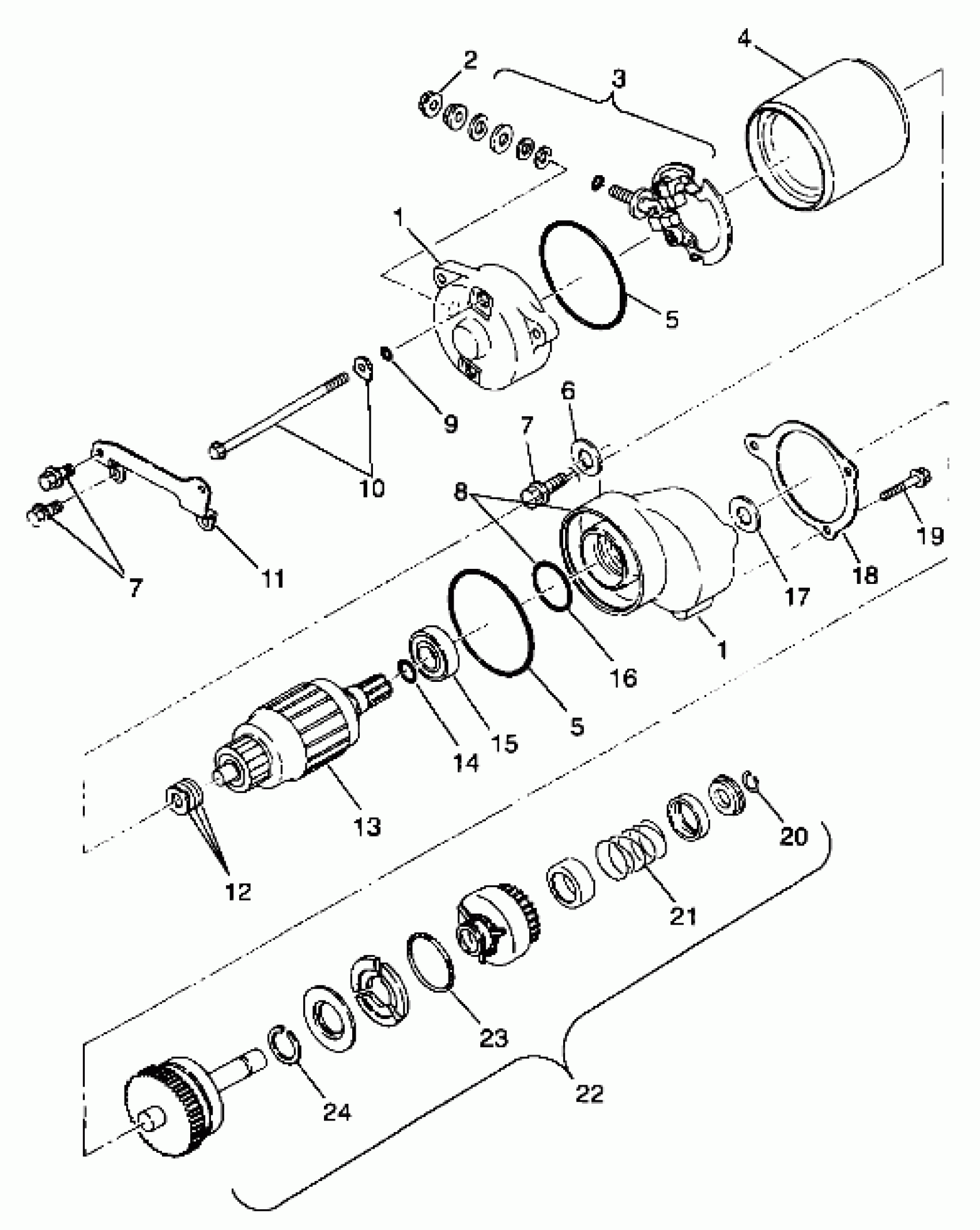

Polaris SCRAMBLER 400 - A99BG38CA STARTING MOTOR - A99BG38CA (4949664966d007) Diagram

#

Description
Price

1

COVER,REAR,STARTER(300-400)

3085032

$81.75

1

COVER,REAR,STARTER(300-400)

3085032

$81.75

2

NUT, FLANGE(10)

3083649

$3.97

3

BRUSH,COMPL.2-POLE *

3084406

$125.46

4

MOTOR ASM,STARTER Substituted by 3087043 (Incl. 1-5,8-10,12-17,20-24)

3085392

Unavailable

4

STARTER MOTOR ASM. * (Incl. 1-3,5,8-10,12-16)

3085393

Unavailable

5

RING, RUBBER

3084405

Unavailable

5

RING, RUBBER

3084405

Unavailable

6

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

7

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.97

7

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.97

8

COVER, FRONT (Incl. 16)

3085305

$123.02

9

O-RING

3084408

Unavailable

10

Bolt, Through

3084407

Unavailable

11

BRACKET Substituted by 3086780

3084214

Unavailable

12

Washer Set

3083754

$2.38

13

ARMATURE ASM. * (Incl. 14,15)

3084404

$142.99

14

O RING

3083934

Unavailable

15

BALL BEARING

3083777

$31.75

16

O RING

3083741

$9.37

17

WASHER, GEARSHAFT Substituted by 7555908

3083737

$3.17

18

GASKET,STARTER(NON-ASBESTOS)

3085283

Unavailable

19

BOLT, FLANGE Substituted by 3086781

3084215

$4.76

20

CLIP

3084409

$7.14

21

SPRING, RETURN

3084410

Unavailable

22

SHAFT ASM,GEAR Substituted by 3087030 (Incl. 17,20-24)

3085394

$271.10

23

SPRING, WEIGHT

3084411

$15.56

24

CLIP

3084412

$9.52
