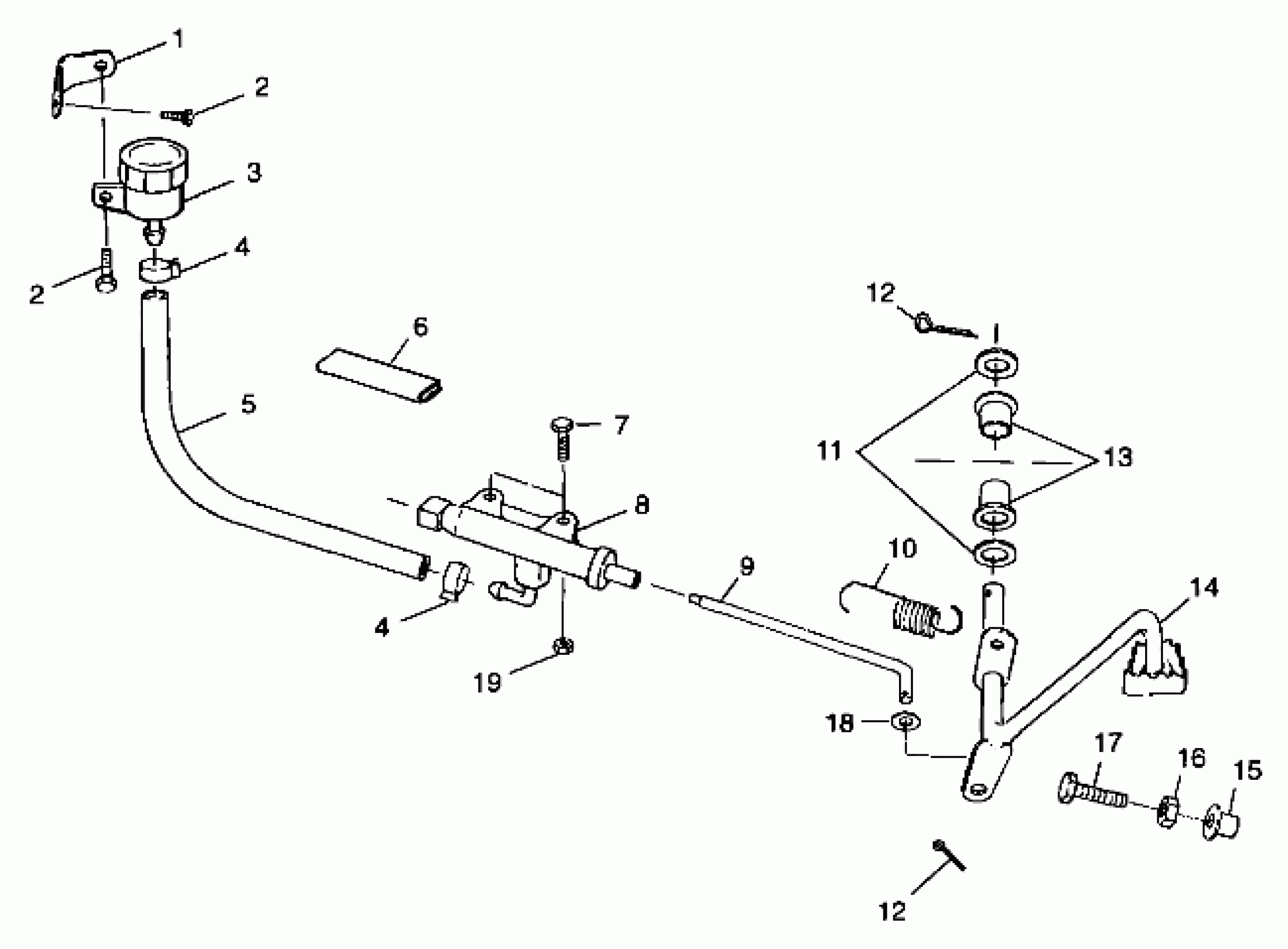

Polaris SCRAMBLER 400 - A99BG38CA REAR BRAKE MASTER CYLINDER - A99BG38CA (4949664966c003) Diagram

#

Description
Price

-

KIT,FOOT,MC.OVERHAUL

2201178

$31.11

1

BRKT,RESERVOIR,BLK

5242614-067

$5.11

2

SCREW(10)

7512208

$2.74

2

SCREW(10)

7512208

$2.74

3

RESERVOIR ASM,R.BRAKE

1930854

$36.41

4

HOSE CLAMP, RED

7080003

$1.19

4

HOSE CLAMP, RED

7080003

$1.19

5

HOSE,RESERVOIR,HYBRID

1930889

Unavailable

6

EDGE TRIM - BLACK Substituted by 5521131

8360012

$44.51

7

BOLT(10)

7512247

Unavailable

8

MASTER CYL.ASM,FOOTBRAKE

1930899

Unavailable

9

ROD,BRAKE,HYBRID

5242789

Unavailable

10

SPRING,EXTENSION

7041720

Unavailable

11

WASHER(10)

7555919

$4.99

12

COTTER PIN(10)

7661401

$0.79

12

COTTER PIN(10)

7661401

$0.79

13

BUSHING-PEDAL PIVOT

5431107

$8.73

14

FOOTBRAKE,HYBRID,BLK.

1910275-067

Unavailable

15

NUTSERT,HEX(10)

7547069

$3.97

16

NUT HEX(10)

7542105

$3.97

17

BOLT(10)

7512103

$3.17

18

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

19

NUT-LOCK(10)

7542122

$1.19
