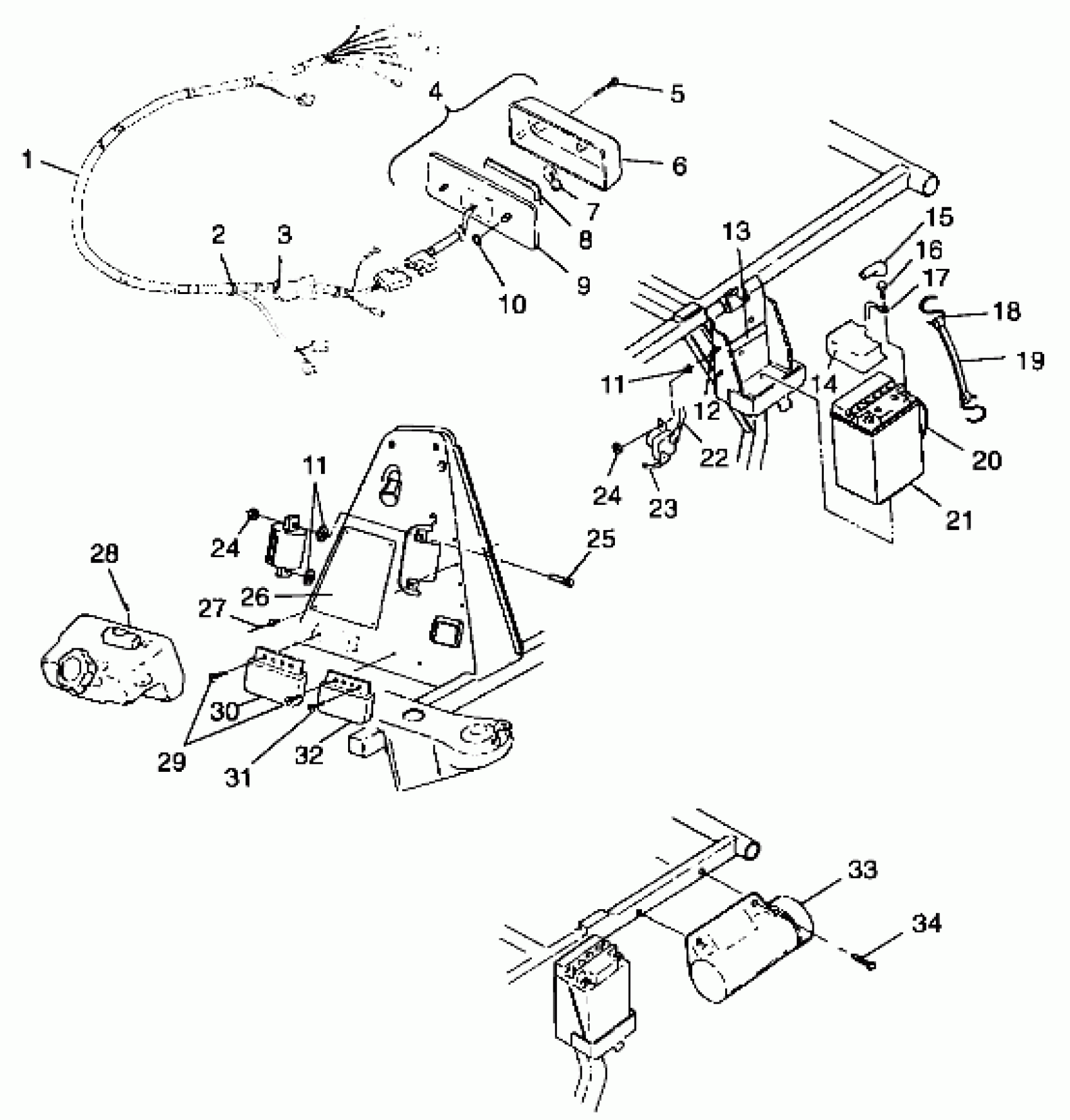

Polaris SCRAMBLER 400 - A99BG38CA ELECTRICAL/TAILLIGHT - A99BG38CA (4949664966c008) Diagram

#

Description
Price

1

HARNESS,MAIN WIRE

2460495

Unavailable

2

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

3

CKT.BREAKER,20 AMP.

2434012

$38.89

4

LIGHT,TAIL/BRAKE (Incl. 5-10)

2432038

$81.07

5

SCREW,TAIL LIGHT

7512088

$2.39

6

LENS,STOP&T/L.

4032085

$36.41

7

BULB,TAILLIGHT

4030043

$6.46

8

GASKET,T/L&STOP/L

4032086

Unavailable

9

BACKING,(STOP&TAIL)

4032087

Unavailable

10

CLIP, RETAINER(10)

7670093

$5.99

11

WASHER(10)

7571602

$4.79

11

WASHER(10)

7571602

$4.79

12

SCREW(10)

7512027

$1.49

13

PAD-BATTERY

5810290

$7.27

14

COVER,BATTERY

5431769

$14.39

15

INSULATOR-CABLE

5410346

$6.39

16

BOLT,BATT,KIT(SHORT)

2200361

$3.99

17

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

18

HOOK-BATT.H/D(10)

7010032

$1.59

19

STRAP,BATTERY HOLDDOWN

5410424

Unavailable

20

TUBE,BATTERY VENT

5432077

$8.08

21

Battery

4140006

$99.99

22

CABLE,BATT/SOLENOID,RED

4010094

Unavailable

23

CABLE,SOL/START,DBLBOOT

4010129

Unavailable

24

NUT(10)

7541925

$1.49

24

NUT(10)

7541925

$1.49

25

SCREW(10)

7512007

$3.99

26

BOARD,TERMINAL,150 ALT,ATV

4040063

Unavailable

27

RIVET,(50)

7621336

$1.59

28

SCREW(10)

7512076

$1.49

29

SCREW,(10)

7512024

$4.79

30

LIMITER,RPM,HUB,GND.LR83-1

4060199

Unavailable

31

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

32

RECTIFIER/REGULATOR,LR39-1

4060193

Unavailable

33

TOOLBOX ASM. Substituted by 2632221 (Incl. Lid Cover and Gasket)

2620087

Unavailable

33

LID COVER,TOOLBOX Substituted by 2620087

5431973

Unavailable

33

GASKET,TOOLBOX LID

5811079

Unavailable

34

BOLT(10)

7512232

$1.49
