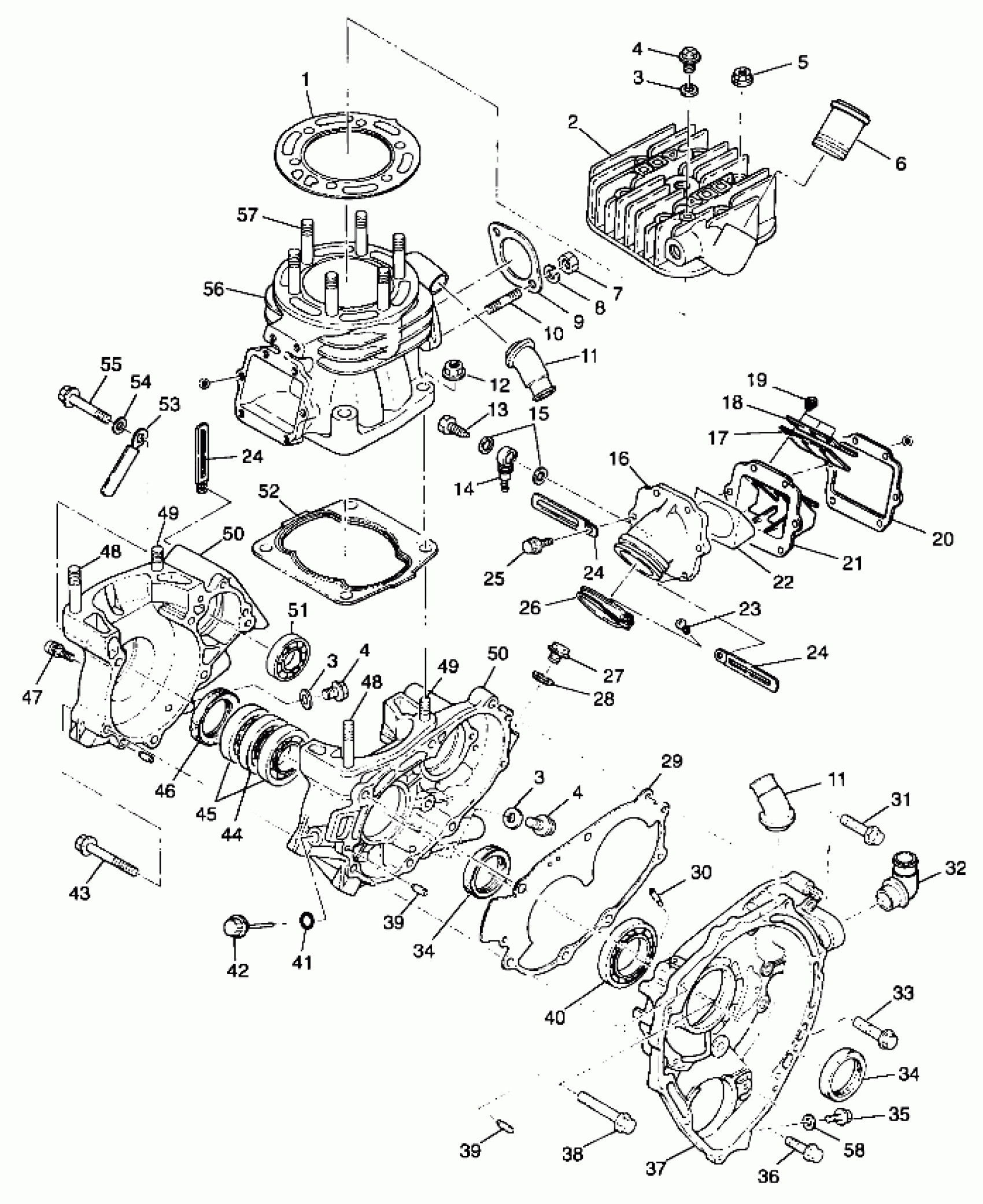

Polaris SCRAMBLER 400 - A99BG38CA CRANKCASE and CYLINDER - A99BG38CA (4949664966d001) Diagram

#

Description
Price

1

GASKET,HEAD

3084731

Unavailable

2

HEAD, CYLINDER Substituted by 3086755 (Incl. 6)

3084730

Unavailable

3

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

3

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

3

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

4

PLUG, DRAIN

3083767

Unavailable

4

PLUG, DRAIN

3083767

Unavailable

4

PLUG, DRAIN

3083767

Unavailable

5

NUT-FLANGE(10)

3082910

Unavailable

6

Pipe, Water

3083452

Unavailable

7

NUT(10)

3080285

Unavailable

8

WASHER LOCK ,(10)

3080530

$3.17

9

GASKET,EXHAUST,NA(10) Substituted by 3086757

3084439

Unavailable

10

STUD,(10)

3085326

Unavailable

11

PIPE, 1 ELBOW Substituted by 3086746

3084129

$45.24

11

PIPE, 1 ELBOW Substituted by 3086746

3084129

$45.24

12

NUT-FLANGE(10)

3082911

$1.99

13

BOLT-BANJO

3083137

Unavailable

14

VALVE, CHECK

3083894

Unavailable

15

WASHER(10) Substituted by 7555998

3083138

$1.19

16

ADAPTER, CARB.

3085277

Unavailable

17

VALVE, REED(10)

3240064

Unavailable

18

Stopper

3240065

Unavailable

19

SCREW&WASHER Substituted by 3084565

3240066

Unavailable

20

GASKET, REED VALVE,(10)

3084148

Unavailable

21

VALVE ASM., REED (Incl. 17-19)

3084147

Unavailable

22

STUFFER,(REED VALVE ASM.)

3240164

$12.39

23

SCREW,(10)

3081497

$2.38

24

Clamp

3083590

$3.97

24

Clamp

3083590

$3.97

24

Clamp

3083590

$3.97

25

BOLT, FLANGE Substituted by 3086759

3084145

Unavailable

26

BAND ASM. (Incl. 23)

3084144

Unavailable

27

PLUG Substituted by 3086749

3083453

Unavailable

28

GASKET

3082956

$4.84

29

GASKET,(CASE 3) Substituted by 3086748

3084727

Unavailable

30

Pipe, Breather

3084128

Unavailable

31

BOLT, FLANGE Substituted by 3086751

3084177

Unavailable

32

PIPE, 2 ELBOW Substituted by 3086747

3084130

Unavailable

33

BOLT, FLANGE ,(10)

3084435

Unavailable

34

Seal, Oil

3084120

Unavailable

34

Seal, Oil

3084120

Unavailable

35

PLUG

3085152

Unavailable

36

Bolt, Flange

3084126

$1.98

37

CRANKCASE ASM,#3 Substituted by 3086745 (See Footnote) (Incl. 11,30,32,34,35,39,40,58)

3085650

$579.99

38

Bolt, Flange

3084134

Unavailable

39

PIN, DOWEL Substituted by 3086838

3080103

$7.14

39

PIN, DOWEL Substituted by 3086838

3080103

$7.14

40

Bearing, Ball

3084131

Unavailable

41

O-Ring

3084733

Unavailable

42

GAUGE, OIL Substituted by 3085517

3084732

Unavailable

43

BOLT, FLANGE Substituted by 3086742

3084125

Unavailable

44

Bearing, Ball

3084775

$43.65

45

Bearing, Ball

3084121

$39.68

46

Seal, Oil

3084725

Unavailable

47

SCREW & WASHER(10)

3084205

$3.97

48

Stud

3084118

Unavailable

48

Stud

3084118

Unavailable

49

Stud

3084119

$9.52

49

Stud

3084119

$9.52

50

CRANKCASE ASM. Substituted by 3086740 (See Footnote) (Incl. 3,4,34,36,39,43-46,48-51,55)

3084774

Unavailable

50

CRANKCASE ASM. Substituted by 3086740 (See Footnote) (Incl. 3,4,34,36,39,43-46,48-51,55)

3084774

Unavailable

51

Bearing, Ball

3084123

Unavailable

52

GASKET,CYLINDER

3084729

$48.56

53

Clamp

3083384

Unavailable

54

WASHER(10)

3080142

Unavailable

55

Bolt, Flange

3084124

Unavailable

56

CYLINDER Substituted by 3086753 (Incl. 10,11,57)

3085276

Unavailable

57

Stud

3084138

Unavailable

58

GASKET,ALUMINUM(10)

3083482

Unavailable
