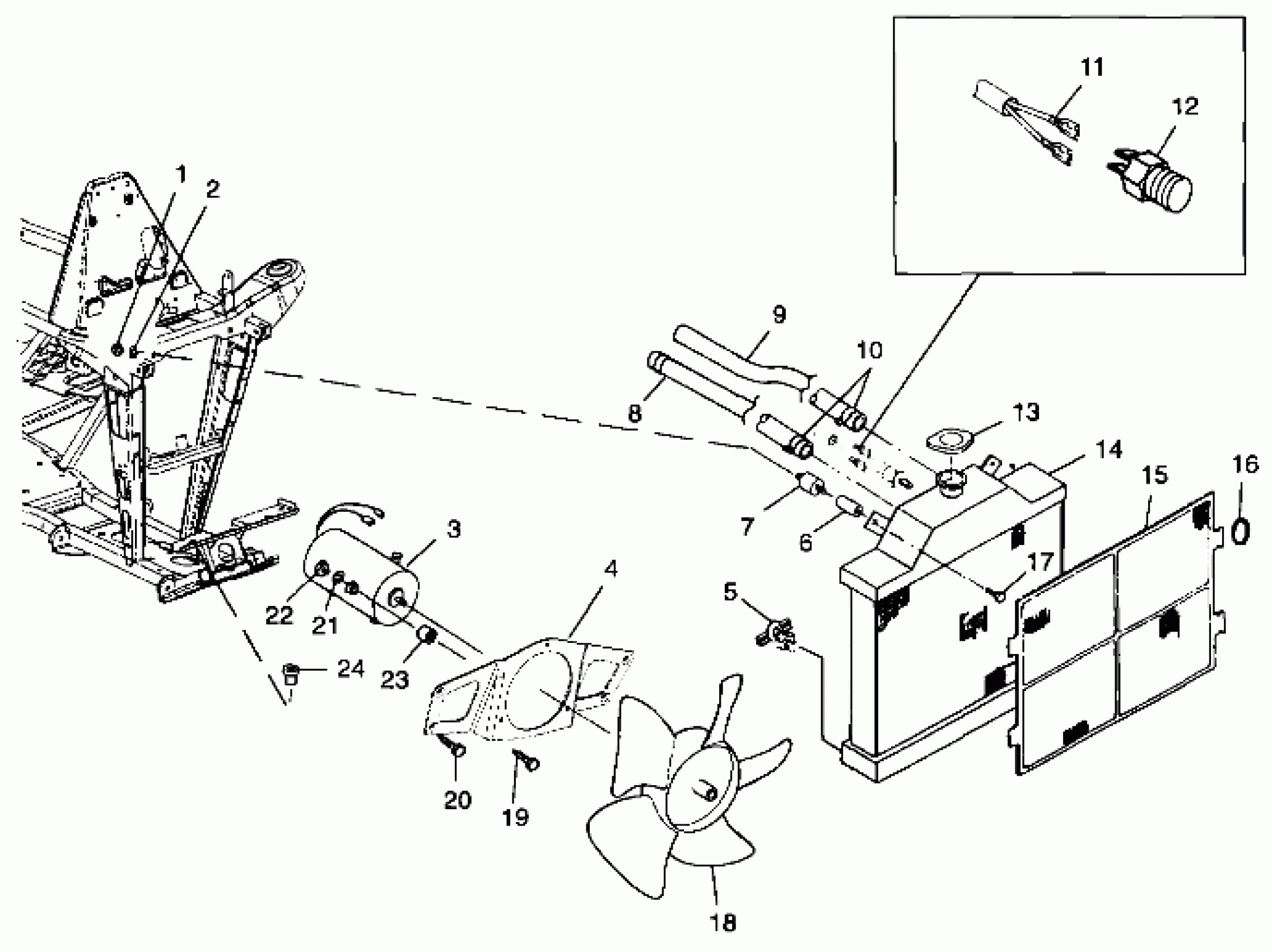

Polaris SCRAMBLER 400 - A99BG38CA COOLING SYSTEM - A99BG38CA (4949664966a011) Diagram

#

Description
Price

1

NUT-LOCK(10)

7542122

$1.49

2

WASHER(10)

7558301

$1.49

3

MOTOR,FAN,D-SHAFT,STD

2410121

$259.99

4

BRKT.COOL.FAN,BLK

5241355-067

Unavailable

5

VALVE,DRAIN COCK

7052181

Unavailable

6

SPACER,RADIATOR MNT

5020937

Unavailable

7

Mount, Rubber

3110032

$7.99

8

Hose, Upper Engine (See Footnote) (See Engine Mounting Pg. A10, Ref. 12)

-------

Unavailable

9

Hose, Lower Engine (See Footnote) (See Engine Mounting Pg. A10, Ref. 26)

-------

Unavailable

10

CLAMP,HOSE,(10)

7080614

$7.19

11

HARNESS,FAN/THERM.SWITCH

2460515

Unavailable

12

SWITCH,THERMAL,FAN,L/C

4110226

Unavailable

13

CAP, RADIATOR Substituted by 2511270

2511189

Unavailable

14

RADIATOR,"U"FLOW

1240015

Unavailable

15

COVER,RADIATOR,W/MESH

5431610

Unavailable

16

O RING

5410607

$5.99

17

SCREW(10)

7515133

$3.99

18

BLADE,FAN,NYLON,8"

5242550

Unavailable

19

SCREW

7517221

$1.83

20

BOLT(10)

7512232

$1.49

21

WASHER, FLAT(10)

7558201

$5.79

22

Nut

7547004

$4.79

23

SPACER,FAN BRACKET

5432870

$10.29

24

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59
