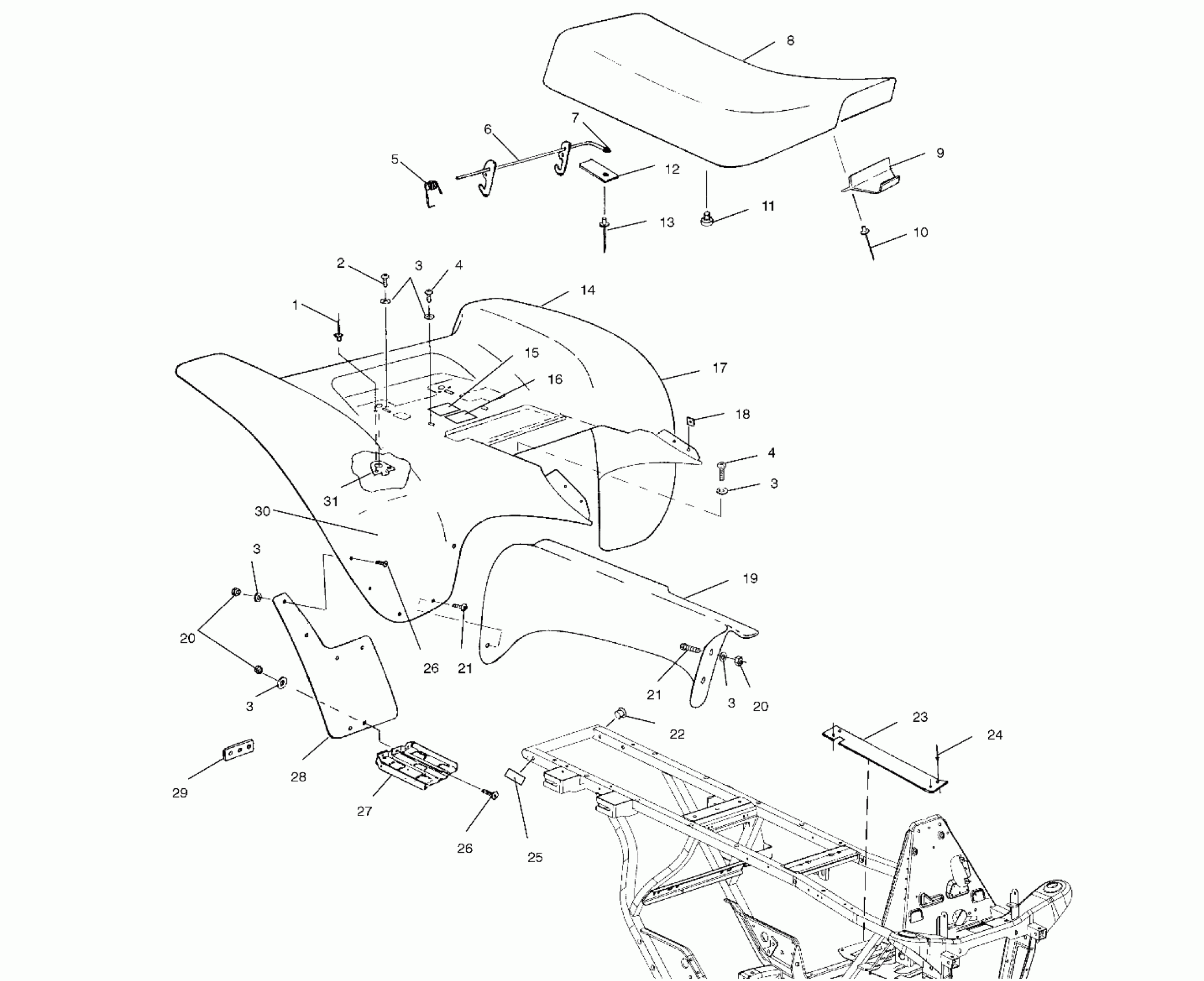

Polaris SCRAMBLER 400 - A00BG38CA REAR CAB - A00BG38CA (4954845484A006) Diagram

#

Description
Price

1

RIVET(50)

7621472

$1.49

2

BOLT(10)

7512232

$1.19

3

WASHER, FLAT(10)

7555859

$1.19

3

WASHER, FLAT(10)

7555859

$1.19

3

WASHER, FLAT(10)

7555859

$1.19

3

WASHER, FLAT(10)

7555859

$1.19

3

WASHER, FLAT(10)

7555859

$1.19

4

SCREW(10)

7512242

$2.38

4

SCREW(10)

7512242

$2.38

5

SPRING,LATCH,LIGHT

7041607

Unavailable

6

LATCH, SEATBACK

1040412

Unavailable

7

CAP,SEATLATCH,GEN 3

5411392

Unavailable

8

SEAT,RED,W/WHITE "POLARIS"

2682453-288

Unavailable

8

COVER,SEAT,BLAZ.RED

2681769-288

Unavailable

9

TONGUE,SEAT

5431986

$10.51

10

RIVET(50)

7621479

$1.98

11

Bumper, Rubber

5410414

$3.17

12

BRACKET,LEVER RETAINER

5211033

$34.99

13

BLIND RIVET(50)

7621403

$1.19

14

Foil, Rear Cab, Small

5810991

Unavailable

15

DECAL,CARB.INFO.

7073761

Unavailable

16

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable

17

CAB-REAR,GEN III,BLAZING RED Substituted by 5434014-288

5432820-288

Unavailable

18

NUT, SPEED(10)

7670057

$1.19

19

FOIL,FOAM

5811113

Unavailable

19

SHIELD,MUFFLER,BLK. Substituted by 2632274

5431869-070

Unavailable

20

NUT-LOCK(10)

7542122

$1.19

20

NUT-LOCK(10)

7542122

$1.19

21

Screw

7517264

$3.97

21

Screw

7517264

$3.97

22

PLUG,ENDCAP,RIBBED

5432831

$5.65

23

GUARD-CLUTCH, BLK

5241403-067

$5.71

24

RIVET,INTERLOCK,B(50)

7661638

$1.19

25

REFLECTOR ASM,RED

2670133

$5.71

26

BOLT, BLACK(10)

7512282

Unavailable

26

BOLT, BLACK(10)

7512282

Unavailable

27

Footpad (See Front Cab Pg. A5, Ref. 17)

----

Unavailable

28

MUDFLAP,LH,R.HYBRID Substituted by 5812134

5850147

Unavailable

28

MUDFLAP,RH,R.HYBRID

5850148

Unavailable

29

BRKT, LH MUD FLAP

5211131-067

Unavailable

30

Foil, Rear Cab

5810957

Unavailable

31

BRKT,R.HOLDDOWN

5220880

Unavailable
