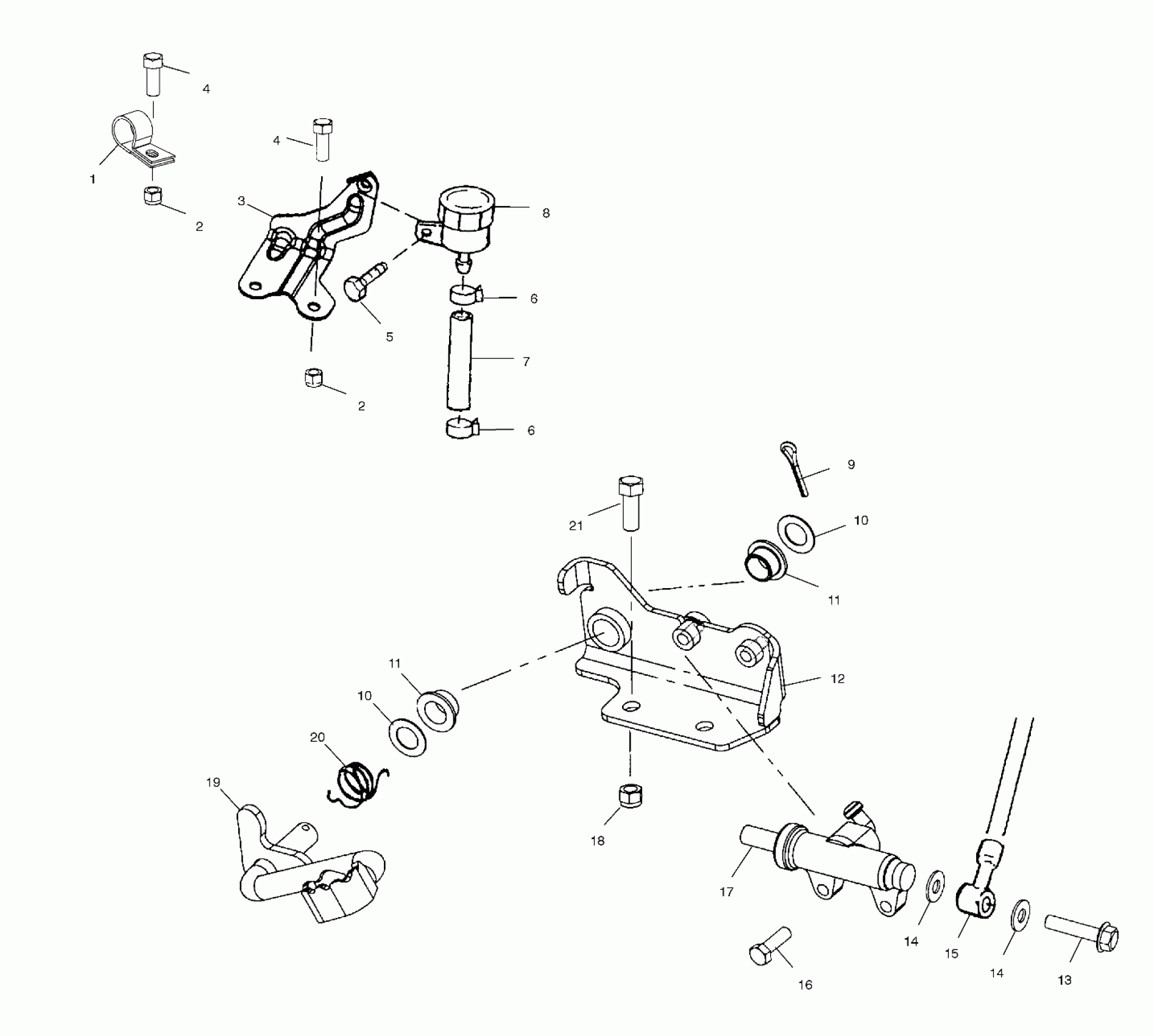

Polaris SCRAMBLER 400 - A00BG38CA REAR BRAKE MASTER CYLINDER - A00BG38CA (4954845484C004) Diagram

#

Description
Price

1

CLAMP-HOSE,.625 DIA VNL COATED

7080880

$5.59

2

NUT-LOCK(10)

7542122

$1.49

2

NUT-LOCK(10)

7542122

$1.49

3

BRKT,RESERVOIR MNT,BLK

5244091-067

$5.75

4

SCREW(10)

7512113

$3.99

4

SCREW(10)

7512113

$3.99

5

SCREW(10)

7512208

$3.99

6

HOSE CLAMP, RED

7080003

$1.49

6

HOSE CLAMP, RED

7080003

$1.49

7

HOSE,RESERVOIR,1/4ID,4.75 IN

1910404

Unavailable

8

RESERVOIR ASM,R.BRAKE

1930854

$35.99

9

COTTER PIN(10)

7661401

$1.49

10

WASHER(10)

7555919

$4.99

10

WASHER(10)

7555919

$4.99

11

BUSHING-PEDAL PIVOT

5431107

$8.79

11

BUSHING-PEDAL PIVOT

5431107

$8.79

12

MOUNT,BRAKE,CDS,BLK

1910375-067

Unavailable

13

BOLT,BANJO,BRAKE

1930674

Unavailable

14

Seal

5410988

$4.84

14

Seal

5410988

$4.84

15

Line, Foot Brake, Rear (See Rear Caliper Mounting Pg. C3, Ref. 6)

-------

Unavailable

16

SCREW(10)

7515179

$2.39

17

BRAKE MSTR CYL,FOOT,BANJO

1910311

$166.01

18

NUT-5/16-18 NYLOK-Y

7542324

$1.49

19

BRAKE ROD,CDS,GEN 3,BLK

1910377-067

Unavailable

20

SPRING-TORSION,BRAKE

7041750

$8.79

21

BOLT(10)

7512383

$1.99
