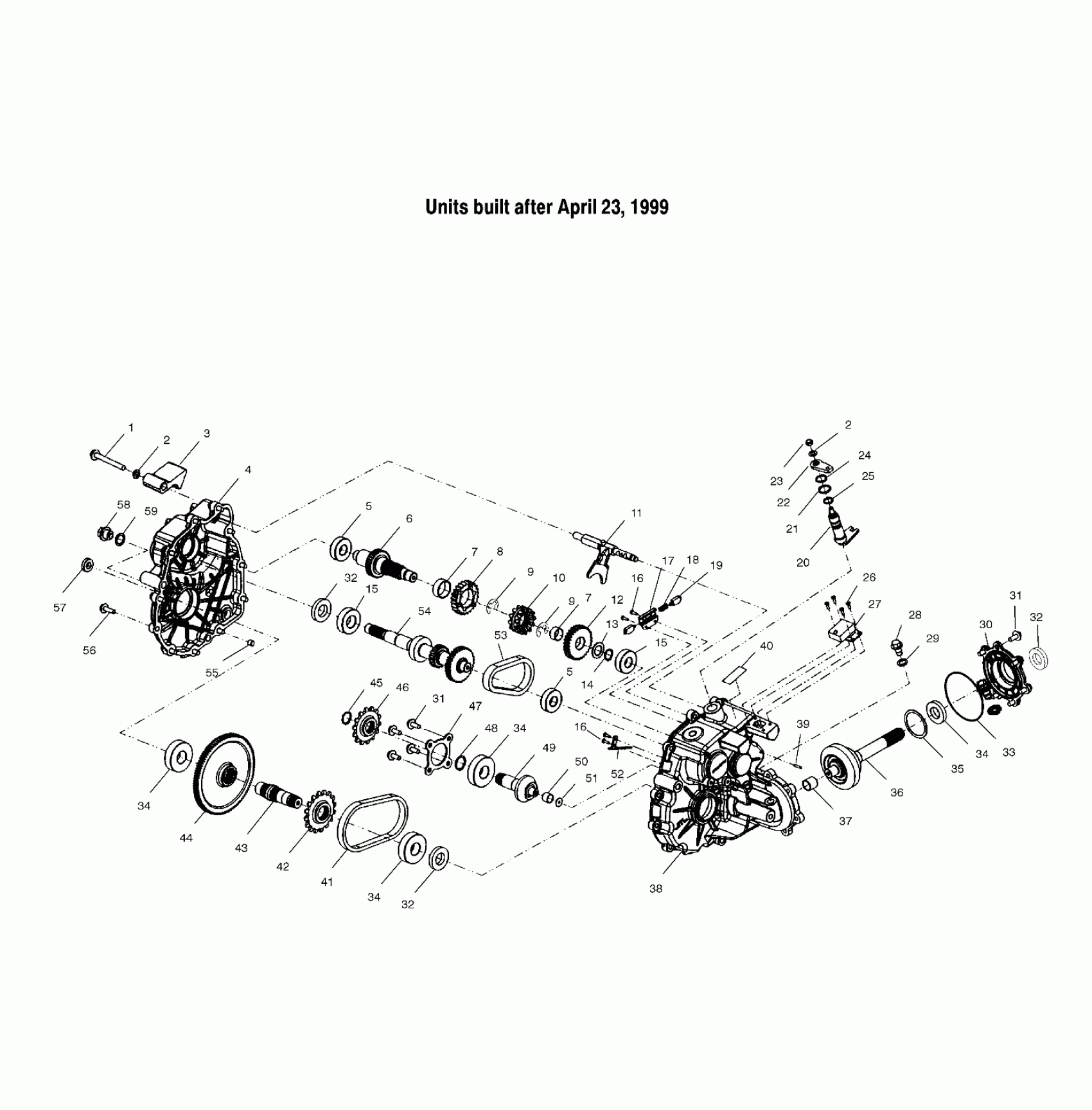

Polaris SCRAMBLER 400 - A00BG38CA GEARCASE - A00BG38CA (4954845484C013) Diagram

#

Description
Price

-

GEARCASE,HR,CDS,SCR 400 (Incl. 1-59) (Units built after April 23, 1999)

1341327

Unavailable

1

Screw

3233525

$1.59

2

Washer

3233054

$6.46

2

Washer

3233054

$6.46

3

DAMPENER,CARB.VIBRATION

3233526

Unavailable

4

GEARCASE-LH

3233632

$354.99

5

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

5

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

6

SHAFT,REVERSE,33T

3233717

$233.33

7

BEARING,NDL,SPLIT CAGE

3233718

$35.71

7

BEARING,NDL,SPLIT CAGE

3233718

$35.71

8

SPROCKET,24T

3233719

$109.27

9

RING,RET-RING,EXTERNAL

3233720

$9.52

9

RING,RET-RING,EXTERNAL

3233720

$9.52

10

DOG,ENGAGEMENT,HIGH/REV

3233721

Unavailable

11

FORK,SHIFT,HIGH/REV

3233633

$141.65

12

GEAR,30T

3233722

Unavailable

13

Washer

3233176

$9.52

14

RING,RETAINING

3233177

$6.46

15

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

15

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

16

SCREW Substituted by 3233747

3233033

Unavailable

16

SCREW Substituted by 3233747

3233033

Unavailable

17

BRACKET,INTERLOCK

3233309

$20.48

18

SPRING,SHIFT.INTERLOCK

3233550

Unavailable

19

PIN,INTERLOCK

3233308

Unavailable

20

SHAFT,SHIFT

3233549

Unavailable

21

Washer

3233040

$9.52

22

Bellcrank

3233547

$56.99

23

Nut

3233055

$3.32

24

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.76

25

O-Ring

3233548

$33.24

26

SCREW Substituted by 3233749

3233691

$5.65

27

SWITCH-H/R,ITW

3233635

$174.99

28

PLUG,OIL FILL

3233711

Unavailable

29

Washer

3233324

$8.54

30

COVER,SNORKEL

3233556

$31.11

31

Screw

3233539

Unavailable

31

Screw

3233539

Unavailable

32

Seal

3233248

$32.37

32

Seal

3233248

$32.37

32

Seal

3233248

$32.37

33

O-Ring

3233555

$6.06

34

BEARING

3233020

$47.62

34

BEARING

3233020

$47.62

34

BEARING

3233020

$47.62

34

BEARING

3233020

$47.62

35

SHIM

3233554

Unavailable

36

SNORKEL,SUBASM,SHAFT

3233723

Unavailable

37

BUSHING-GARLOCK

3233552

$23.81

38

GEARCASE,RH,H/R

3233798

$499.99

39

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

39

Vent

3233037

Unavailable

40

DECAL-SWITCH

3233636

Unavailable

41

CHAIN,ROLLER

3233546

$68.79

42

SPROCKET,16/26T

3233545

$55.56

43

SHAFT,OUTPUT

3233544

$174.99

44

GEAR,96T,HCR.

3233543

$249.21

45

RING,RETAINING

3233537

$6.99

46

SPROCKET,14/22T

3233538

Unavailable

47

COVER,CTR.DRIVE BRG.

3233263

Unavailable

48

RING,RETAINING

3233306

$4.76

49

SHAFT,PINION,13T

3233540

$158.73

50

BUSHING,GARLOCK

3233541

$23.81

51

WASHER,THRUST

3233542

$11.32

52

DEFLECTOR,OIL

3233043

$13.10

53

CHAIN,SILENT,34P

3233036

Unavailable

54

SHAFT,INPUT,HI/REV.HCR.EXT.

3233536

$220.49

55

PIPE,KNOCK

3233529

$10.99

56

Screw

3233252

$5.69

57

BUSHING,PIVOT

3233527

$39.99

58

Plug

3233448

$23.81

59

Washer

3233035

Unavailable
