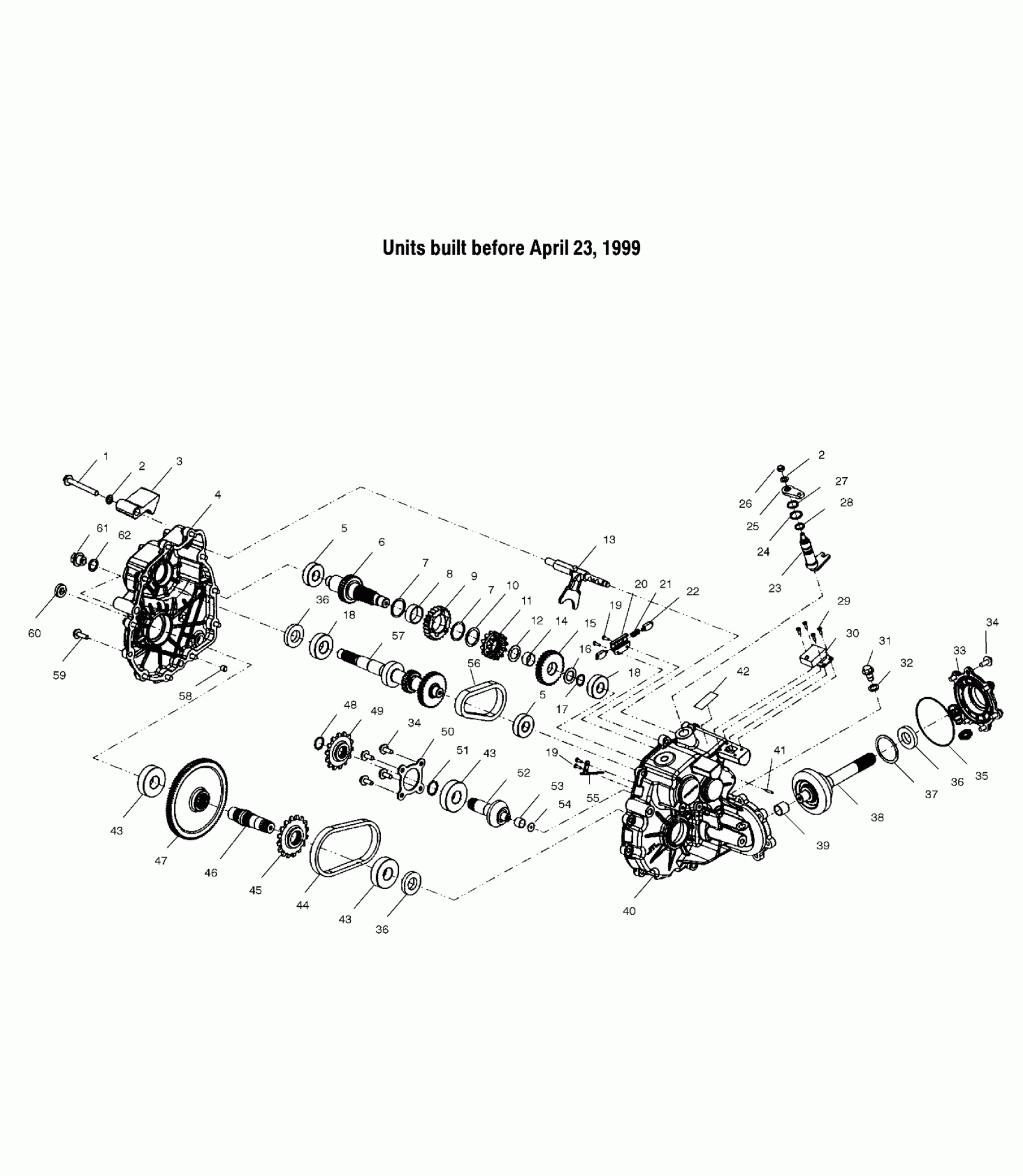

Polaris SCRAMBLER 400 - A00BG38CA GEARCASE - A00BG38CA (4954845484C011) Diagram

#

Description
Price

-

GEARCASE,H/R,HYBRID,2.82 Substituted by 1341327 (Incl. 1-62) (Units built before April 23, 1999)

1341285

Unavailable

1

Screw

3233525

$1.59

2

Washer

3233054

$6.46

2

Washer

3233054

$6.46

3

DAMPENER,CARB.VIBRATION,SCB

5432856

Unavailable

4

GEARCASE-LH

3233632

$354.99

5

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

5

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

6

SHAFT,REVERSE,33T

3233531

$170.39

7

WASHER

3233012

Unavailable

7

WASHER

3233012

Unavailable

8

BEARING, NEEDLE

3233014

$43.99

9

SPROCKET,24T,12-POINT

3233532

Unavailable

10

RING,RETAINING

3233029

$5.59

11

DOG,ENGAGE,12PT,HI/REV

3233533

Unavailable

12

Washer

3233010

Unavailable

13

FORK,SHIFT,HIGH/REV

3233633

$139.99

14

BUSHING,GARLOCK

3233534

Unavailable

15

GEAR,30T,12-POINT

3233535

Unavailable

16

Washer

3233176

$9.59

17

RING,RETAINING

3233177

$6.39

18

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

18

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

19

SCREW Substituted by 3233747

3233033

Unavailable

19

SCREW Substituted by 3233747

3233033

Unavailable

20

BRACKET,INTERLOCK

3233309

$20.63

21

SPRING,SHIFT.INTERLOCK

3233550

Unavailable

22

PIN,INTERLOCK

3233308

Unavailable

23

SHAFT,SHIFT

3233549

Unavailable

24

Washer

3233040

$9.59

25

Bellcrank

3233547

$43.99

26

Nut

3233055

Unavailable

27

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

28

O-Ring

3233548

$27.99

29

SCREW,TAP

3233616

Unavailable

30

SWITCH-H/R,ITW

3233635

Unavailable

31

DIPSTICK,(PLUG) Substituted by 3233711

3233325

Unavailable

32

Washer

3233324

$8.99

33

COVER,SNORKEL

3233556

$31.11

34

Screw

3233539

$15.49

34

Screw

3233539

$15.49

35

O-Ring

3233555

$6.06

36

Seal

3233248

$30.88

36

Seal

3233248

$30.88

36

Seal

3233248

$30.88

37

SHIM

3233554

Unavailable

38

GEAR,SNORKEL

3233553

Unavailable

39

BUSHING-GARLOCK

3233552

$23.99

40

GEARCASE-RH Substituted by 3233752

3233634

$469.99

41

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

41

Vent

3233037

Unavailable

42

DECAL-SWITCH

3233636

Unavailable

43

BEARING

3233020

$47.99

43

BEARING

3233020

$47.99

43

BEARING

3233020

$47.99

44

CHAIN,ROLLER

3233546

$67.99

45

SPROCKET,16/26T

3233545

$55.99

46

SHAFT,OUTPUT

3233544

$174.99

47

GEAR,96T,HCR.

3233543

$251.19

48

RING,RETAINING

3233537

$6.99

49

SPROCKET,14/22T

3233538

Unavailable

50

COVER,CTR.DRIVE BRG.

3233263

Unavailable

51

RING,RETAINING

3233306

$4.79

52

SHAFT,PINION,13T

3233540

$159.99

53

BUSHING,GARLOCK

3233541

$23.99

54

WASHER,THRUST

3233542

$11.32

55

DEFLECTOR,OIL

3233043

$13.19

56

CHAIN,SILENT,34P

3233036

Unavailable

57

SHAFT,INPUT,HI/REV.HCR.EXT.

3233536

$220.49

58

PIPE,KNOCK

3233529

$7.99

59

Screw

3233252

$5.27

60

BUSHING,PIVOT

3233527

$35.19

61

Plug

3233448

$23.99

62

Washer

3233035

Unavailable
