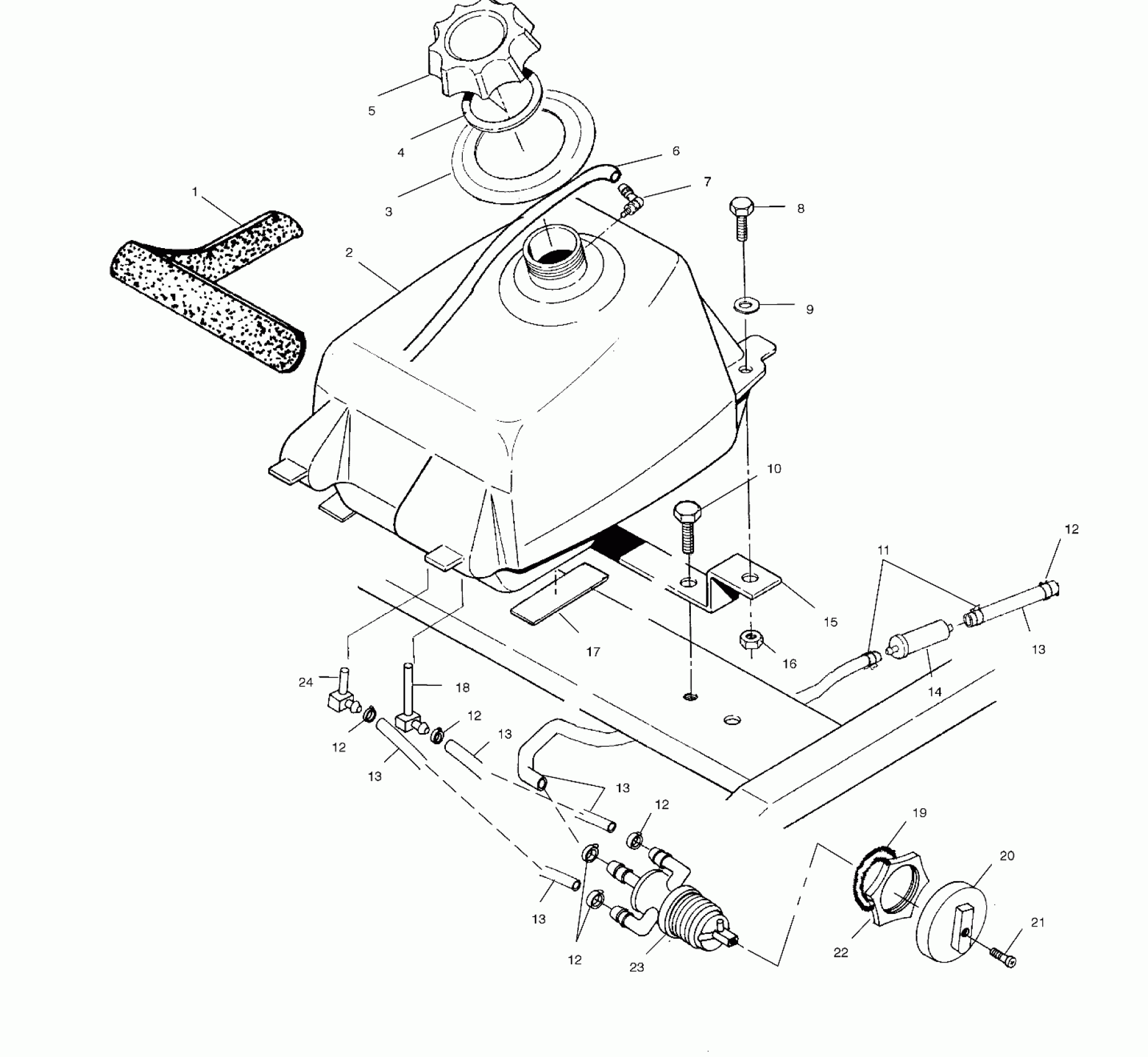

Polaris SCRAMBLER 400 - A00BG38CA FUEL TANK - A00BG38CA (4954845484A013) Diagram

#

Description
Price

1

SEAL,FOAM

5811527

Unavailable

2

FUELTANK,90-,PERPENDICULR (Incl. 7,18,24)(If built after 8/16/99)

1240082

Unavailable

2

FUEL TANK,W/ FITTINGS Substituted by 1240082 (Incl. 7,18,24)(If built before 8/16/99)

1240048

Unavailable

3

GROMMET,FUELTANK

5410842

Unavailable

4

GASKET-GAS CAP

5810144

$5.65

5

CAP, GAS, (BLACK)

5430725

$24.27

6

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

7

Vent, Tank

5431053

$24.27

8

SCREW(10)

7512310

$2.38

9

WASHER(10)

7555734

$0.79

10

SCREW(10)

7512208

$2.74

11

CLAMP,SPRING,(10)

7080534

$1.59

12

HOSE CLAMP, RED

7080003

$1.19

12

HOSE CLAMP, RED

7080003

$1.19

12

HOSE CLAMP, RED

7080003

$1.19

12

HOSE CLAMP, RED

7080003

$1.19

12

HOSE CLAMP, RED

7080003

$1.19

13

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

13

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

13

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

13

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

13

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

14

FILTER FUEL,(10)

2530008

$5.65

15

BRKT,R.TANK MT,BLK.

5220916-067

Unavailable

16

NUT-5/16-18 NYLOK-Y

7542324

$0.79

17

PAD,BULK FUEL

8360026

Unavailable

18

ELBOW, MAIN

7052147

Unavailable

19

SPACER,FUEL VALVE

5242977

Unavailable

20

KNOB,FUEL VALVE

5432559

$11.32

21

SCREW(10)

7517505

$1.59

22

NUT,FUELVALVE,ATV

5432733

Unavailable

23

VALVE,3-WAY,HORIZ PORTS

7052154

$44.51

24

FITTING,FUEL OUT,90DEG,RES,Z

7052148

$9.52
