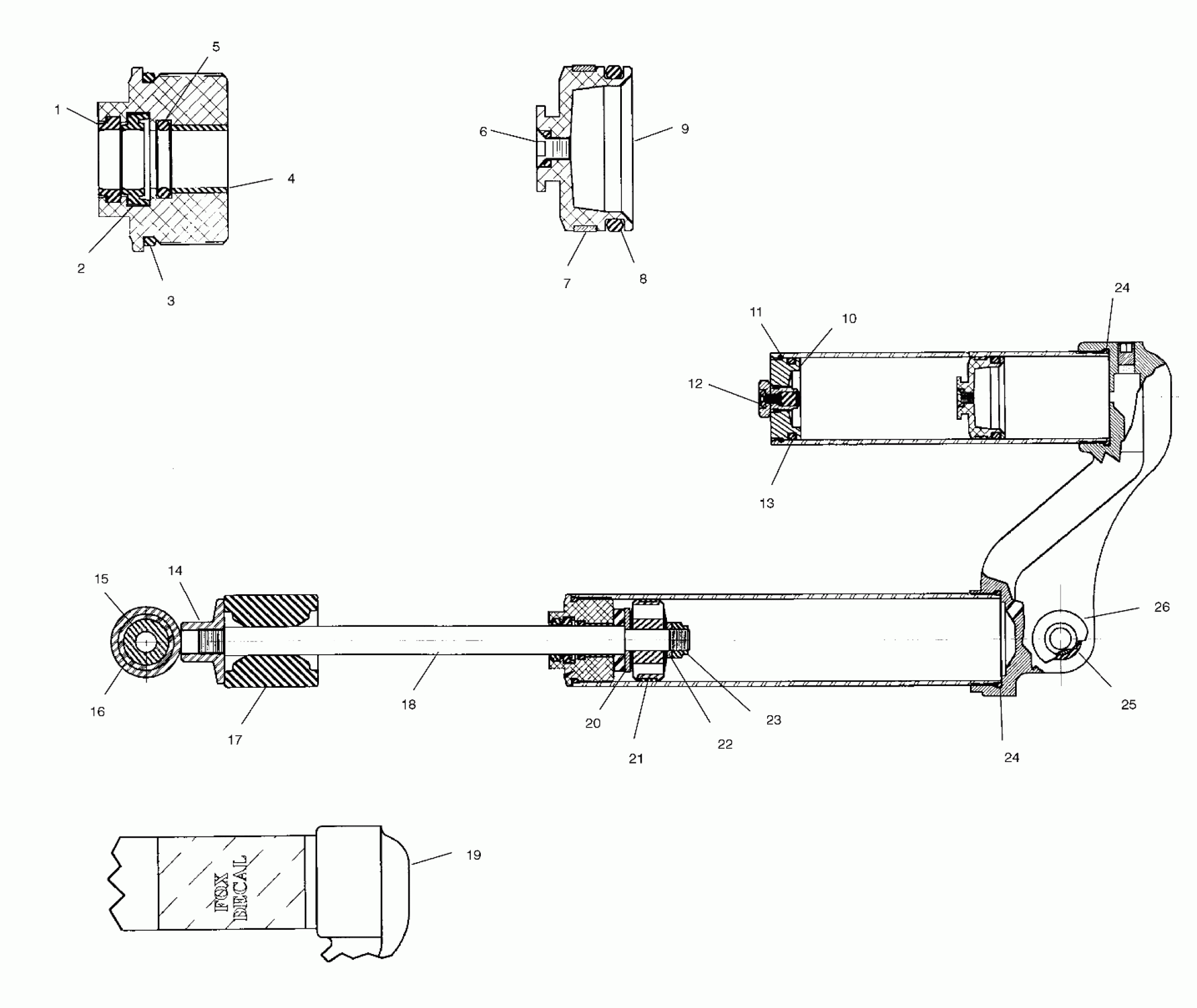

Polaris SCRAMBLER 400 - A00BG38CA FOX SHOCK, GAS, RESERVOIR - A00BG38CA (4954845484D002) Diagram

#

Description
Price

-

SHOCK-MONO,GAS,CH,19.08LG

7041867

Unavailable

1

WIPER,CLR,OUTER

1500024

Unavailable

2

WIPER INNER Substituted by 1500266

1500025

$24.27

3

O-RING,(10).103W-1.299ID

1500020

$10.63

4

BEARING Substituted by 1500186

1500009

Unavailable

5

O-RING INNER (10)

1500021

$10.99

6

O-RING,OUTER

1500023

$2.84

6

Screw

1500018

$5.56

7

RING,PISTON,FLOATING,FOX

1500006

$19.99

8

O-RING,ENDCAP,FOX,(10)

1500003

$8.89

9

PISTON

1500011

$59.99

10

CAP,RESERV.ASM,(FOX)-ATV (Incl. 11,12,13)

1500099

$49.59

11

RING,RETAIN.(FOX)-ATV

1500097

$4.79

12

VALVE ASM,AIR Substituted by 1500014

1500072

Unavailable

12

Screw

1500019

$6.39

12

O-RING,DRUM OUTER

1500022

Unavailable

13

O-RING,(FOX)-ATV Substituted by 1500003

1500098

$8.89

14

Eyelet

1500013

$76.89

15

SLEEVE Substituted by 1500216

1500102

Unavailable

16

BSG-EYELET

1500103

$8.08

17

BUMPER,R.COMPRESS.,ATV

5410987

Unavailable

18

SHAFT-.498 X 8.7

1500272

$52.79

19

CAP,BODY ASM,(FOX)

1500101

Unavailable

20

PLATE,TOP OUT

1500017

$20.22

21

DAMPER,PISTONRING,FOX

1500002

$31.99

22

BUSHING,BACKUP

1500015

$6.76

23

NUT,LOCK

1500016

$12.79

24

O-RING,BODY,FOX,.139W-1.234ID

1500004

$1.83

24

O-RING,BODY,FOX,.139W-1.234ID

1500004

$1.83

25

BUSHING, 1.40

5020657

$15.99

26

BSG-EYELET

1500104

Unavailable
