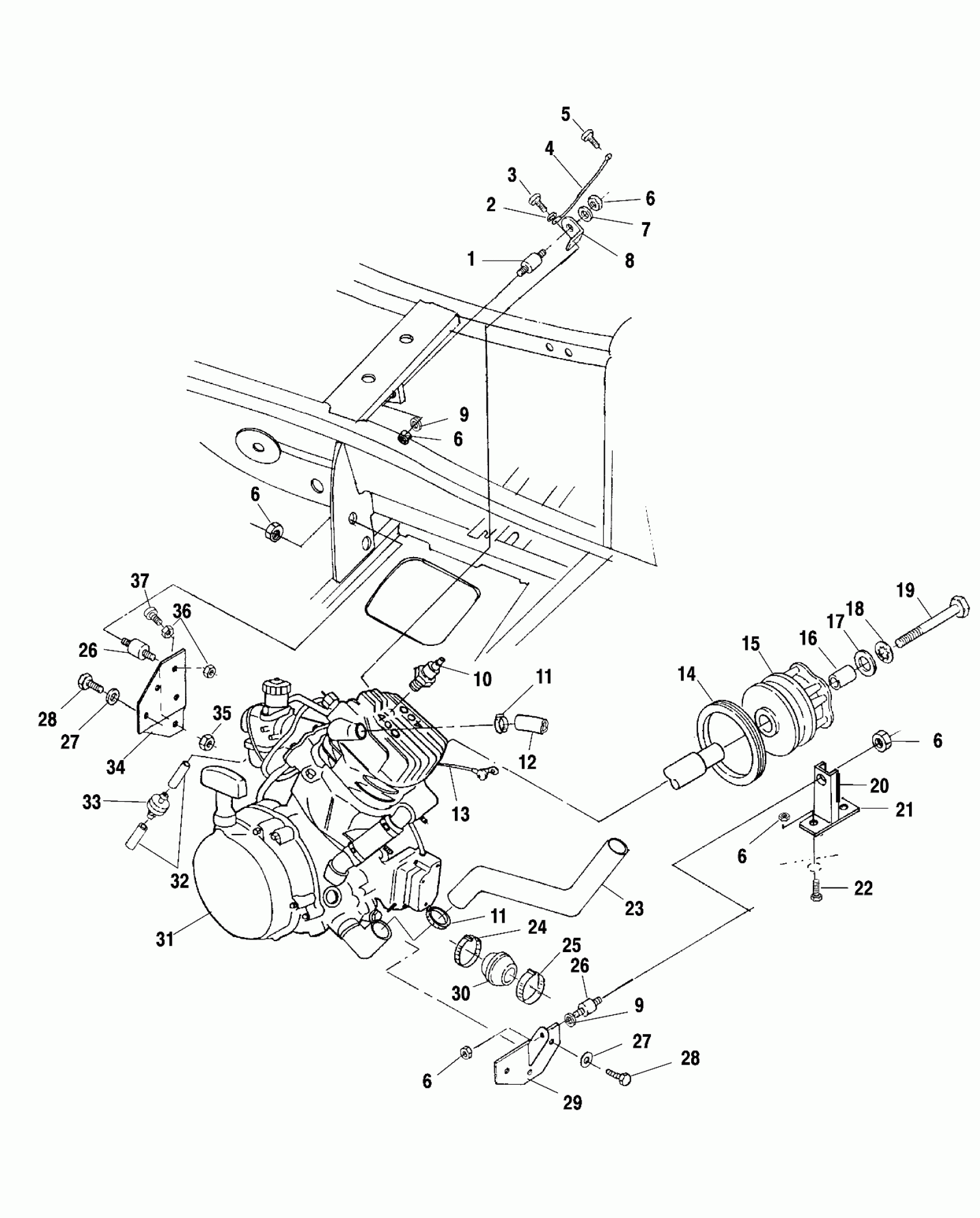

Polaris SCRAMBLER 400 - A00BG38CA ENGINE MOUNTING - A00BG38CA (4954845484A009) Diagram

#

Description
Price

1

MT.,RUBBER,ENG.

3110038

Unavailable

2

LOCK WASHER(10)

7552901

$1.49

3

BOLT(10)

7512315

$4.79

4

CABLE,GND-ENGINE

4010132

Unavailable

5

BOLT(10)

7512232

$1.49

6

NUT

7547108

$4.79

6

NUT

7547108

$4.79

6

NUT

7547108

$4.79

6

NUT

7547108

$4.79

6

NUT

7547108

$4.79

6

NUT

7547108

$4.79

7

WASHER(10)

7555806

$1.49

8

BRKT,ENG.MT,TOP,BLK,400

5242692-067

Unavailable

9

WASHER(10)

7555823

Unavailable

9

WASHER(10)

7555823

Unavailable

10

SPARKPLUG (10)

3070156

$3.99

11

CLAMP,HOSE,(10)

7080614

$7.19

11

CLAMP,HOSE,(10)

7080614

$7.19

12

HOSE,ENG,UPPER

5410570

$44.51

13

CABLE-RED,SOL/STRTR,DBLBOOT34"

4010218

$47.99

14

Seal, Cover Case (See Clutch Cover Pg. C7, Ref. 3)

-------

Unavailable

15

Asm., Drive Clutch, Basic ATV-06 (See Drive Clutch Pg. B14, Ref. 14)

-------

Unavailable

16

BUSHING-.437 X.770 X.50

5430261

$7.19

17

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

18

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

19

BOLT(10)

7512566

$30.79

20

EDGE TRIM-BLACK,04 CM

8360012-04

Unavailable

21

MOUNT,FR.ENGINE,BLK.

1040687-067

$15.56

22

SCREW ,(10)

7517289

$4.79

23

HOSE,FORMED,3/4X21.75,W/ CHAFE

5411637

Unavailable

24

CLAMP,BAND,NARROW

7080656

Unavailable

25

CLAMP, NARROW BAND(10)

7080511

$4.79

26

MOUNT,RUBBER,ENG.

3110042

Unavailable

26

MOUNT,RUBBER,ENG.

3110042

Unavailable

27

WASHER(10)

7552603

$1.49

27

WASHER(10)

7552603

$1.49

28

SCREW(10)

7512490

$3.99

28

SCREW(10)

7512490

$3.99

29

MOUNT,ENGINE

1040231-067

Unavailable

30

BOOT,CLUTCH INLET,2.4X2.1X5.2

5411681

Unavailable

31

ENG.EC38PLE08,09,11 [No Longer Available] (EC38PLE09) NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior au

3085821

Unavailable

32

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

33

VENT,CHECKVALVE

7051011

Unavailable

34

BRKT,ENG.MT,REAR,BLK

5242463-067

$56.99

35

NUT LOCK(10)

7542411

$3.19

36

NUT, JAM(10)

7542432

$3.99

37

MT,TORQUE STOP,RUBBER

3110048

$7.43
