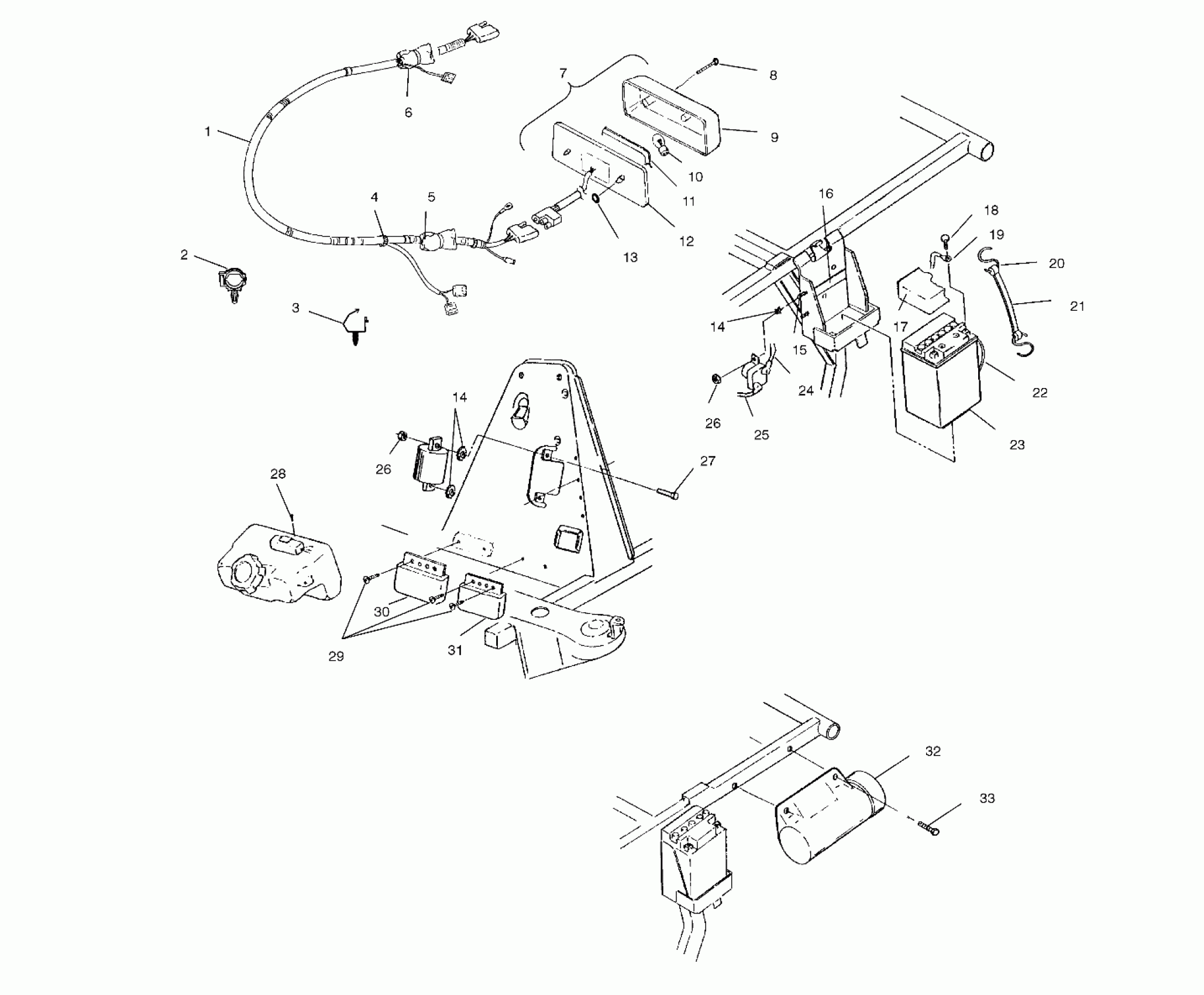

Polaris SCRAMBLER 400 - A00BG38CA ELECTRICAL/TAILLIGHT - A00BG38CA (4954845484C009) Diagram

#

Description
Price

1

HARNESS-MAIN,SCRAMBLER 400

2460788

Unavailable

2

CLIP,ROSEBUD

4020149

$6.39

3

CLIP-ROUTING

7670109

$2.39

4

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

5

CKT.BREAKER,20 AMP.

2434012

$38.89

6

KIT-CIRCUT BREAKER,FAN

2201795

$68.79

7

LIGHT,TAIL/BRAKE (Incl. 8-13)

2432038

$81.07

8

SCREW,TAIL LIGHT

7512088

$2.39

9

LENS,STOP&T/L.

4032085

$36.41

10

BULB,TAILLIGHT

4030043

$6.46

11

GASKET,T/L&STOP/L

4032086

Unavailable

12

BACKING,(STOP&TAIL)

4032087

Unavailable

13

CLIP, RETAINER(10)

7670093

$5.99

14

WASHER(10)

7571602

$4.79

14

WASHER(10)

7571602

$4.79

15

SCREW(10)

7512027

$1.49

16

PAD-BATTERY

5810290

$7.27

17

COVER,BATTERY

5431769

$14.39

18

BOLT,BATT,KIT(SHORT)

2200361

$3.99

19

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

20

HOOK-BATT.H/D(10)

7010032

$1.59

21

STRAP,BATTERY HOLDDOWN

5410424

Unavailable

22

TUBE,BATTERY VENT

5432077

$8.08

23

Battery

4140006

$99.99

24

CABLE,BATT/SOLENOID,RED

4010094

Unavailable

25

CABLE-RED,SOL/STRTR,DBLBOOT34"

4010218

$47.99

26

NUT(10)

7541925

$1.49

26

NUT(10)

7541925

$1.49

27

SCREW(10)

7512007

$3.99

28

SCREW(10)

7512076

$1.49

29

SCREW,(10)

7512024

$4.79

30

LIMITER-RPM,HUB,GROUND,LR83-1

4010188

Unavailable

31

RECTIFIER/REGULATOR,LR39-1

4060208

Unavailable

32

TOOLBOX ASM. Substituted by 2632221 (Incl. Lid Cover and Gasket)

2620087

Unavailable

32

LID COVER,TOOLBOX Substituted by 2620087

5431973

Unavailable

32

GASKET,TOOLBOX LID

5811079

Unavailable

33

BOLT(10)

7512232

$1.49
