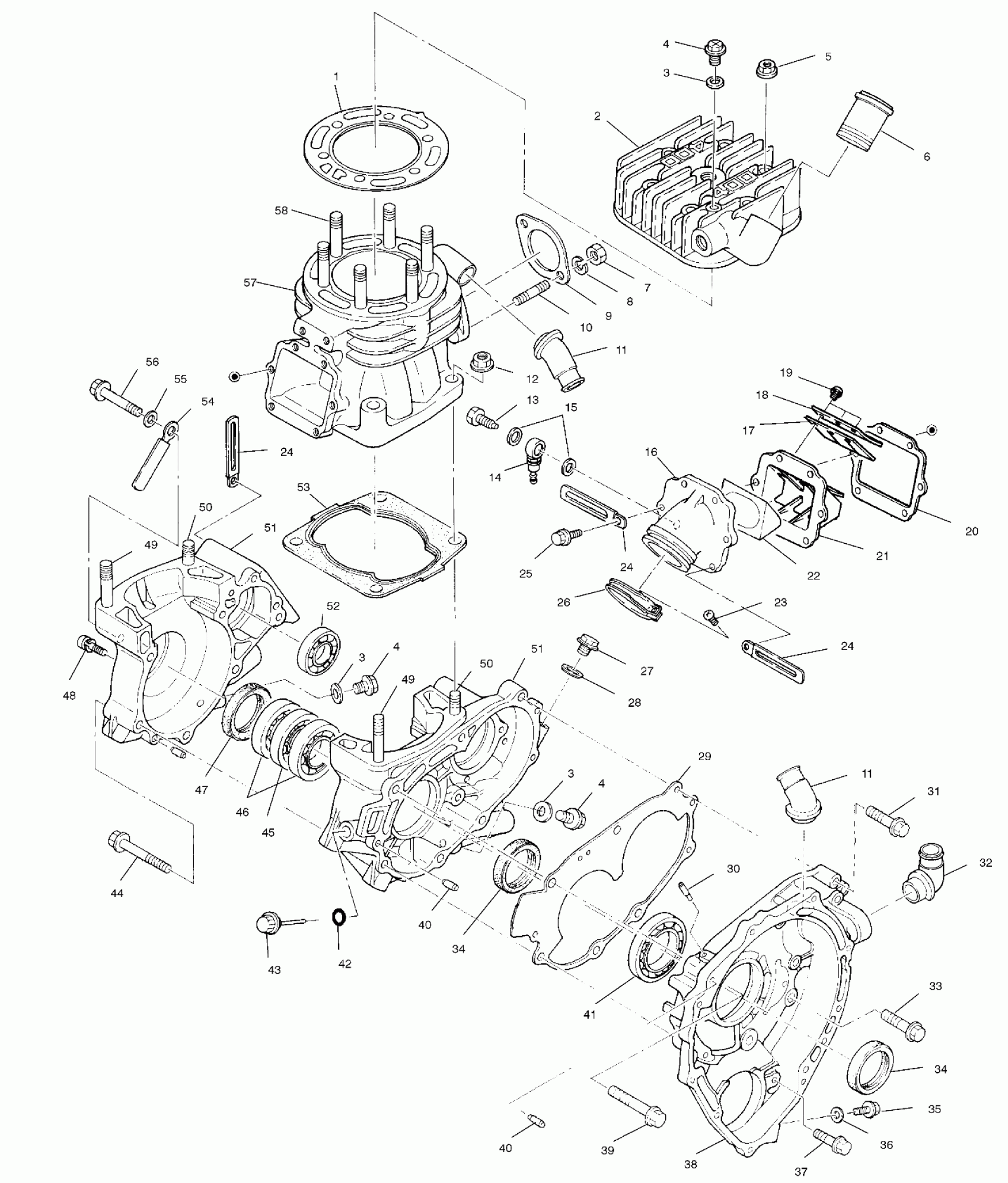

Polaris SCRAMBLER 400 - A00BG38CA CRANKCASE and CYLINDER - A00BG38CA (4954845484D005) Diagram

#

Description
Price

1

GASKET,HEAD

3084731

Unavailable

2

CYLINDER-HEAD (Incl. 6)

3086755

Unavailable

3

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

3

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

3

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

4

PLUG Substituted by 3083767

3086744

$5.22

4

PLUG Substituted by 3083767

3086744

$5.22

4

PLUG Substituted by 3083767

3086744

$5.22

5

NUT-FLANGE(10)

3082910

Unavailable

6

PIPE-WATER Substituted by 3083452

3086756

Unavailable

7

NUT(10)

3080285

Unavailable

8

WASHER LOCK ,(10)

3080530

$3.17

9

GASKET-EXHAUST

3086757

Unavailable

10

STUD,(10)

3085326

Unavailable

11

PIPE-1,ELBOW

3086746

$45.24

11

PIPE-1,ELBOW

3086746

$45.24

12

NUT-FLANGE(10)

3082911

$1.99

13

BOLT-BANJO Substituted by 3083137

3086758

Unavailable

14

VALVE, CHECK

3083894

Unavailable

15

WASHER(10) Substituted by 7555998

3083138

$1.19

16

ADAPTER, CARB.

3085277

Unavailable

17

VALVE, REED(10)

3240064

Unavailable

18

Stopper

3240065

Unavailable

19

SCREW&WASHER Substituted by 3084565

3240066

Unavailable

20

GASKET-REED,VALVE Substituted by 3084148

3086760

Unavailable

21

VALVE ASM., REED (Incl. 17-19)

3084147

Unavailable

22

STUFFER,(REED VALVE ASM.)

3240164

$12.39

23

SCREW,(10)

3081497

$2.38

24

Clamp

3083590

$3.97

24

Clamp

3083590

$3.97

24

Clamp

3083590

$3.97

25

BOLT-FLANGE,ADAPTER Substituted by 3087150

3086759

Unavailable

26

BAND ASM. (Incl. 23)

3084144

Unavailable

27

PLUG

3086749

Unavailable

28

GASKET

3082956

$4.84

29

GASKET-CASE 3

3086748

Unavailable

30

Pipe, Breather

3084128

Unavailable

31

BOLT-FLANGE

3086751

Unavailable

32

PIPE-2,ELBOW

3086747

Unavailable

33

BOLT-FLANGE Substituted by 3084435

3086752

Unavailable

34

Seal, Oil

3084120

Unavailable

34

Seal, Oil

3084120

Unavailable

35

PLUG Substituted by 3085152

3086750

Unavailable

36

GASKET,ALUMINUM(10)

3083482

Unavailable

37

BOLT-FLANGE Substituted by 3084126

3086743

$1.98

38

CRANKCASE 3 (See Footnote) (Incl. 11,30,32,34,35,36,40,41)

3086745

$579.99

39

Bolt, Flange

3084134

Unavailable

40

PIN-DOWEL Substituted by 3080103

3086741

$7.14

40

PIN-DOWEL Substituted by 3080103

3086741

$7.14

41

Bearing, Ball

3084131

Unavailable

42

O-Ring

3084733

Unavailable

43

GAUGE-OIL

3086761

Unavailable

44

BOLT-FLANGE

3086742

Unavailable

45

Bearing, Ball

3084775

$43.65

46

Bearing, Ball

3084121

$39.68

47

Seal, Oil

3084725

Unavailable

48

SCREW & WASHER(10)

3084205

$3.97

49

Stud

3084118

Unavailable

49

Stud

3084118

Unavailable

50

Stud

3084119

$9.52

50

Stud

3084119

$9.52

51

ASM-CRANKCASE (See Footnote) (Incl. 3,4,34,37,40,44-47,49-52,56)

3086740

Unavailable

51

ASM-CRANKCASE (See Footnote) (Incl. 3,4,34,37,40,44-47,49-52,56)

3086740

Unavailable

52

Bearing, Ball

3084123

Unavailable

53

GASKET,CYLINDER

3084729

$48.56

54

Clamp

3083384

Unavailable

55

WASHER(10)

3080142

Unavailable

56

Bolt, Flange

3084124

Unavailable

57

CYLINDER (Incl. 10,11,58)

3086753

Unavailable

58

Stud

3084138

Unavailable
