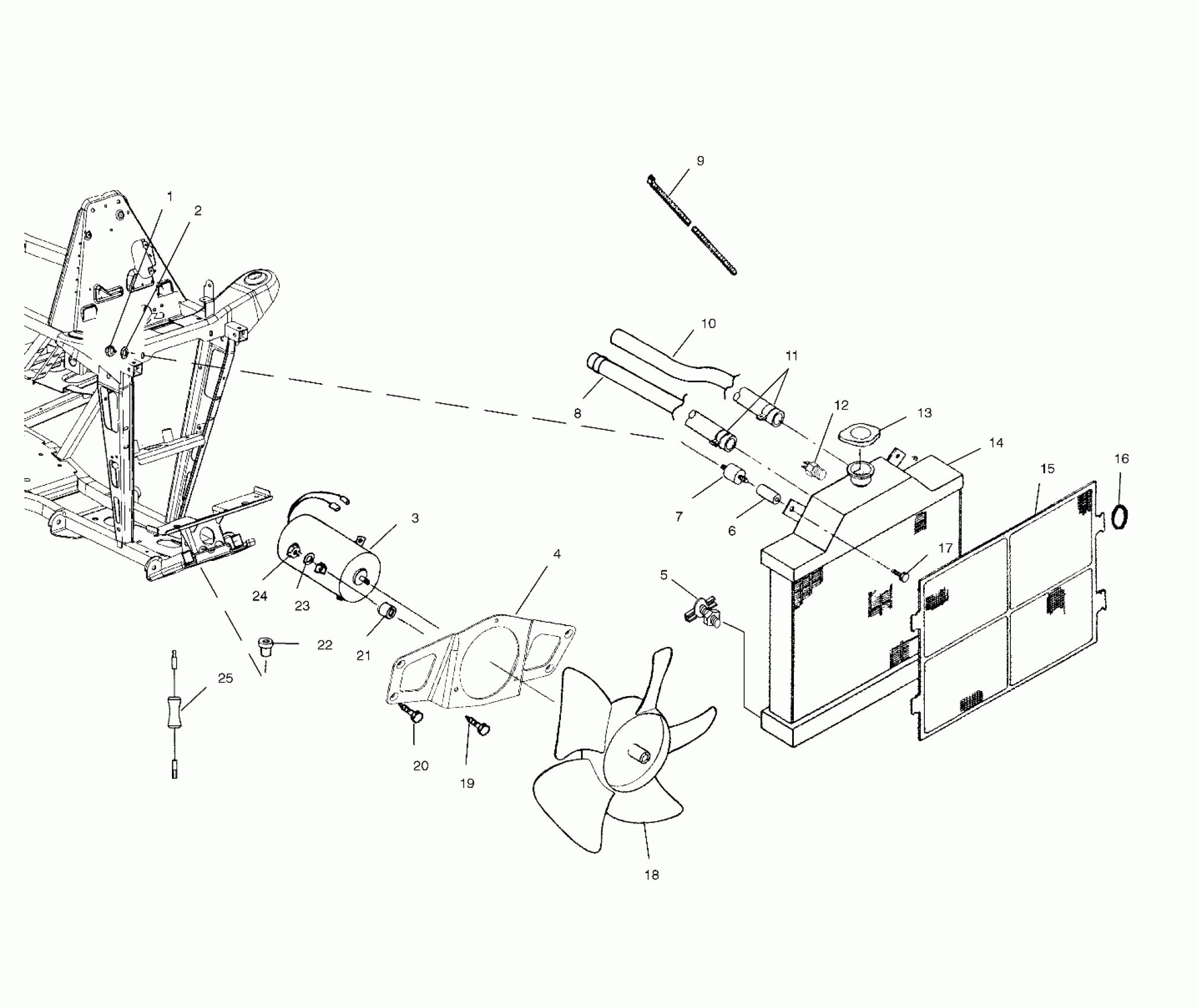

Polaris SCRAMBLER 400 - A00BG38CA COOLING SYSTEM - A00BG38CA (4954845484A011) Diagram

#

Description
Price

1

NUT-LOCK(10)

7542122

$1.19

2

WASHER(10)

7558301

$1.19

3

MOTOR,FAN,LIQ,D-SHAFT,CONN (If built before 1/01/00)

4170013

Unavailable

3

FAN MOTOR,CONN. (If built after 1/01/00)

2410141

Unavailable

4

BRKT.COOL.FAN,BLK

5241355-067

Unavailable

5

VALVE,DRAIN COCK

7052181

Unavailable

6

SPACER,RADIATOR MNT

5020937

Unavailable

7

Mount, Rubber

3110032

Unavailable

8

Hose, Upper Engine (See Engine Mounting Pg. A10, Ref. 12)

----

Unavailable

9

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

10

Hose, Lower Engine (See Engine Mounting Pg. A10, Ref. 23)

----

Unavailable

11

CLAMP,HOSE,(10)

7080614

$7.14

12

SWITCH,THERMAL,FAN,L/C

4110226

Unavailable

13

CAP, RADIATOR Substituted by 2511270

2511189

$24.27

14

RADIATOR,"U"FLOW

1240015

Unavailable

15

COVER,RADIATOR,W/MESH (If built before 9/01/99)

5431610

Unavailable

16

O RING (If built before 9/01/99)

5410607

Unavailable

17

SCREW(10)

7515133

$3.97

18

BLADE,FAN,NYLON,8"

5242550

Unavailable

19

SCREW

7517475

Unavailable

20

BOLT(10)

7512232

$1.19

21

SPACER,FAN BRACKET

5432870

Unavailable

22

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.56

23

WASHER, FLAT(10)

7558201

$5.79

24

Nut

7547004

$4.76

25

BREAKER,CIRCUT,10A,FAN [No Longer Available]

4010369

$72.84
