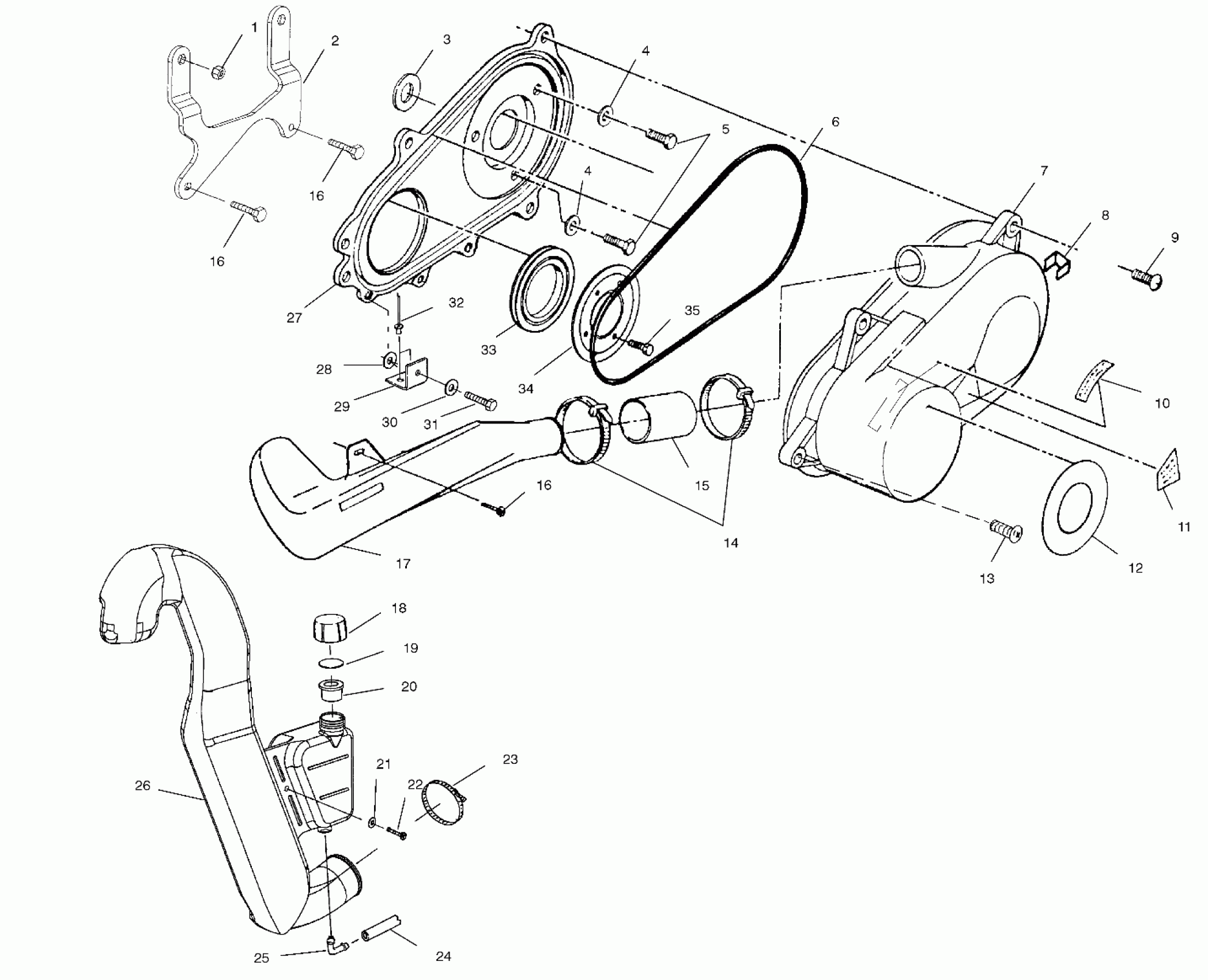

Polaris SCRAMBLER 400 - A00BG38CA CLUTCH COVER - A00BG38CA (4954845484C007) Diagram

#

Description
Price

1

NUTSERT,HEX

7547067

$6.23

2

BRKT,CLUTCH,LOW,BLK

5242208-067

Unavailable

3

SEAL,CLUTCH CVR,INNER

5411554

Unavailable

4

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

4

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

5

SCREW (10)

7517542

$6.23

6

SEAL,CLUTCHCOVER

5521301

$30.88

7

COVER-CLUTCH,FRONT,ST-801HS

5433542

$179.99

8

CLIP,CLUTCH COVER(10)

7670051

$2.99

9

SCREW(10)

7512093

$1.49

10

DECAL,CLUTCH COVER Substituted by 7078689

7074946

Unavailable

11

DECAL,ENG/CLUTCH MOD. Substituted by 7078689

7077377

Unavailable

12

DECAL,AUTO.TRANSMISSION

7074782

Unavailable

13

SCREW(10)

7512094

$1.59

14

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

15

BOOT,CLUTCH INTAKE

5410421

$11.19

16

BOLT(10)

7512232

$1.49

16

BOLT(10)

7512232

$1.49

16

BOLT(10)

7512232

$1.49

17

DUCT,AIR OUT,CLUTCH

5432615

Unavailable

18

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

19

GASKET-OVERFLOW CAP

5810279

$2.41

20

PLUG,CAP Substituted by 5433774

5431895

Unavailable

21

WASHER(10)

7555783

$3.99

22

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

23

CLAMP, NARROW BAND(10)

7080511

$4.79

24

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

25

FITTING,90 DEGREE

7052065

$7.19

26

DUCT,CLUTCH INLET,HYBRID

5433342

Unavailable

27

COVER,CLUTCH INNER 400 (Incl. 9,13,31,33)

2201159

$141.65

28

WASHER,NYLON

7555932

$2.39

29

BRKT,CLUTCH COVER,BLK

5242693-067

Unavailable

30

WASHER(10)

7555935

$2.39

31

Screw

7512098

$1.59

32

RIVET,INTERLOCK,B(50)

7661638

$1.49

33

Seal, Cover Case

5410575

Unavailable

34

BRKT,RETAINER,SEAL

5222446-067

Unavailable

35

Screw and Washer (See Crankcase and Cylinder Pg. D6, Ref. 48)

-------

Unavailable
