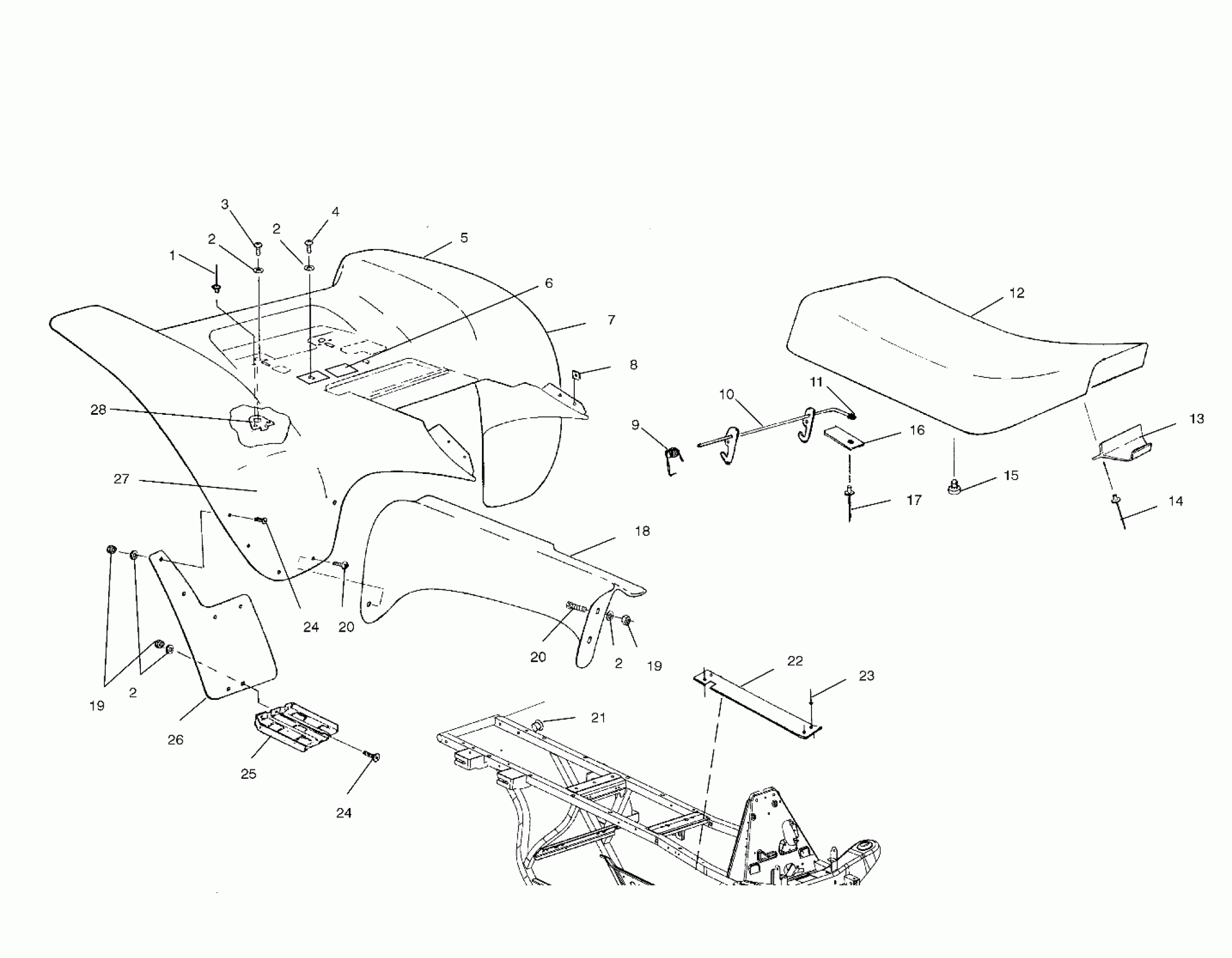

Polaris SCRAMBLER 400 4X4 - A02BG38CA REAR CAB - A02BG38CA (4974677467A04) Diagram

#

Description
Price

1

RIVET

7621472

$1.49

2

Washer, Flat

7555859

$1.19

2

Washer, Flat

7555859

$1.19

2

Washer, Flat

7555859

$1.19

2

Washer, Flat

7555859

$1.19

3

SCREW

7512232

$1.19

4

SCREW

7512242

$2.38

5

Foil, Rear Cab, Small

5810991

Unavailable

6

Decal, Carb/Filter Information

7079901

Unavailable

7

Cab, Rear, Sonic Blue

5434014-341

Unavailable

8

Nut, Speed, U-Type

7670057

$1.19

9

Spring, Latch, Light

7041607

Unavailable

10

Latch, Seat

1040412

Unavailable

11

Cap, Seat Latch

5411392

Unavailable

12

Cover, Seat

2682996

Unavailable

12

Asm., Seat

2682995

Unavailable

13

Tongue, Seat

5431986

$10.51

14

RIVET

7621479

$1.98

15

BUMPER-RUBBER

5412067

$3.97

16

BRACKET, LEVER RETAINER

5211033

$34.99

17

RIVET

7621403

$1.19

18

Shield, Muffler

2632274

Unavailable

18

Foam, Foil

5811113

Unavailable

19

Nut, Nylok

7542122

$1.19

19

Nut, Nylok

7542122

$1.19

20

Screw

7517916

$6.35

20

Screw

7517916

$6.35

21

Plug, End Cap, Ribbed

5432831

$5.65

22

Guard, Clutch

5241403-067

$5.71

23

RIVET-3/16-.090-.290

7661637

$1.19

24

Bolt

7512282

Unavailable

24

Bolt

7512282

Unavailable

25

FOOTPAD [SEE FRONT CAB PG. A3, REF. 14]

----

Unavailable

26

Mudflap, Rear, RH

5850148

Unavailable

26

Mudflap, Rear, LH

5812134

Unavailable

27

Foil, Rear Cab

5810957

Unavailable

28

Bracket, Rear Seat Holddown

5220880

Unavailable
