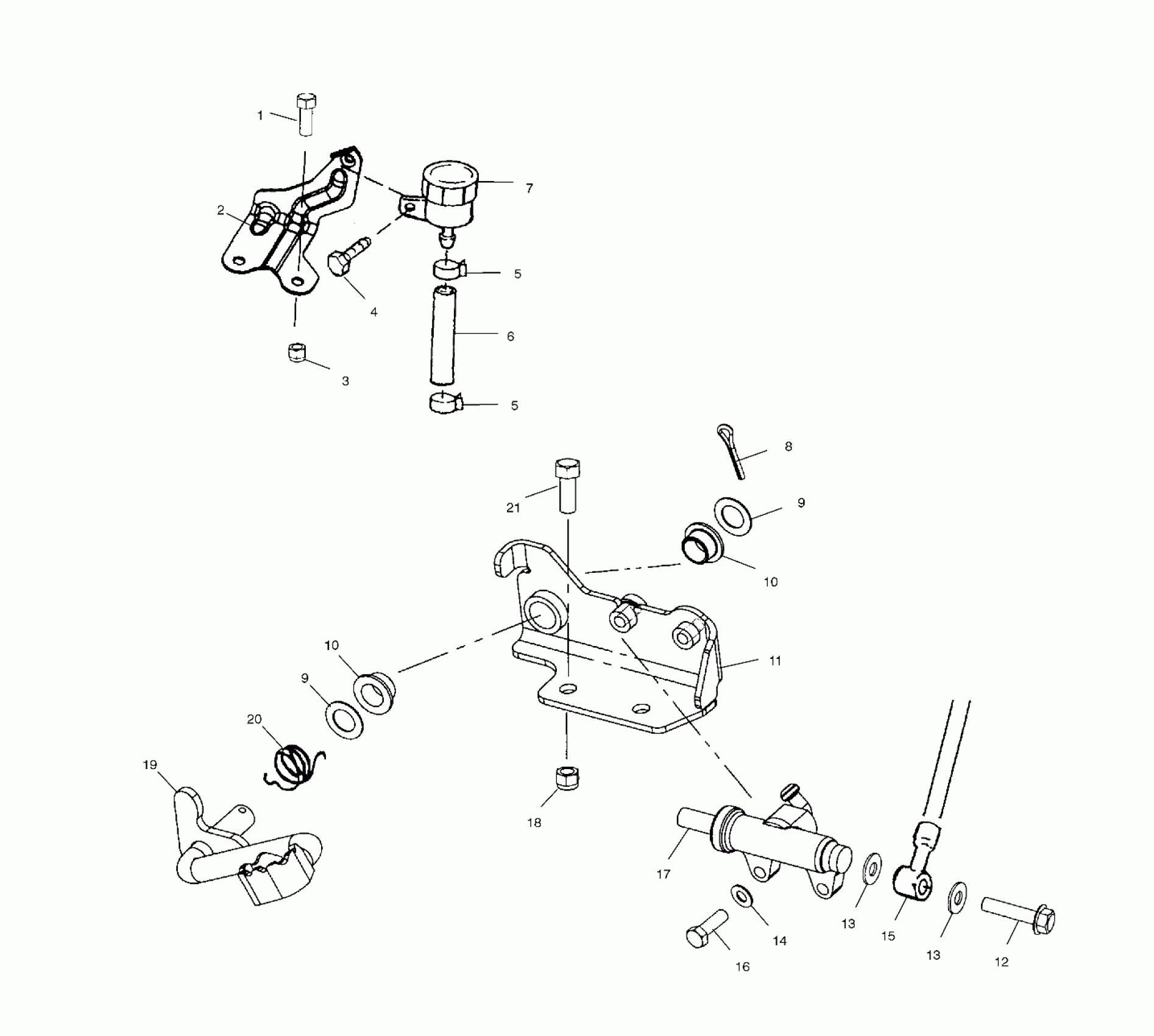

Polaris SCRAMBLER 400 4X4 - A02BG38CA REAR BRAKE MASTER CYLINDER - A02BG38CA (4974677467C04) Diagram

#

Description
Price

1

Bolt

7512113

$3.97

2

Bracket, Reservoir Mount

5244091-067

$5.71

3

Nut, Nylok

7542122

$1.19

4

SCREW

7517386

$1.19

5

HOSE CLAMP, RED

7080003

$1.19

5

HOSE CLAMP, RED

7080003

$1.19

6

Hose, Reservoir

1910404

Unavailable

7

Reservoir

1930854

$36.41

8

PIN, COTTER

7661401

$0.79

9

WASHER

7555919

$4.99

9

WASHER

7555919

$4.99

10

BUSHING-PEDAL PIVOT

5431107

$8.73

10

BUSHING-PEDAL PIVOT

5431107

$8.73

11

Mount, Brake

1910375-067

Unavailable

12

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.94

13

Seal

5410988

$4.84

13

Seal

5410988

$4.84

14

Washer, Flat

7552801

$1.59

15

LINE, FOOT BRAKE, REAR [See Rear Caliper Mounting Pg. C6, Ref. 6]

----

Unavailable

16

Screw

7515179

$2.38

17

Asm., Foot Brake Master Cylinder

1910311

$174.03

18

NUT-5/16-18 NYLOK-Y

7542324

$0.79

19

Rod, Brake

1910377-067

Unavailable

20

SPRING-TORSION,BRAKE

7041750

$8.89

21

Screw

7515321

Unavailable
