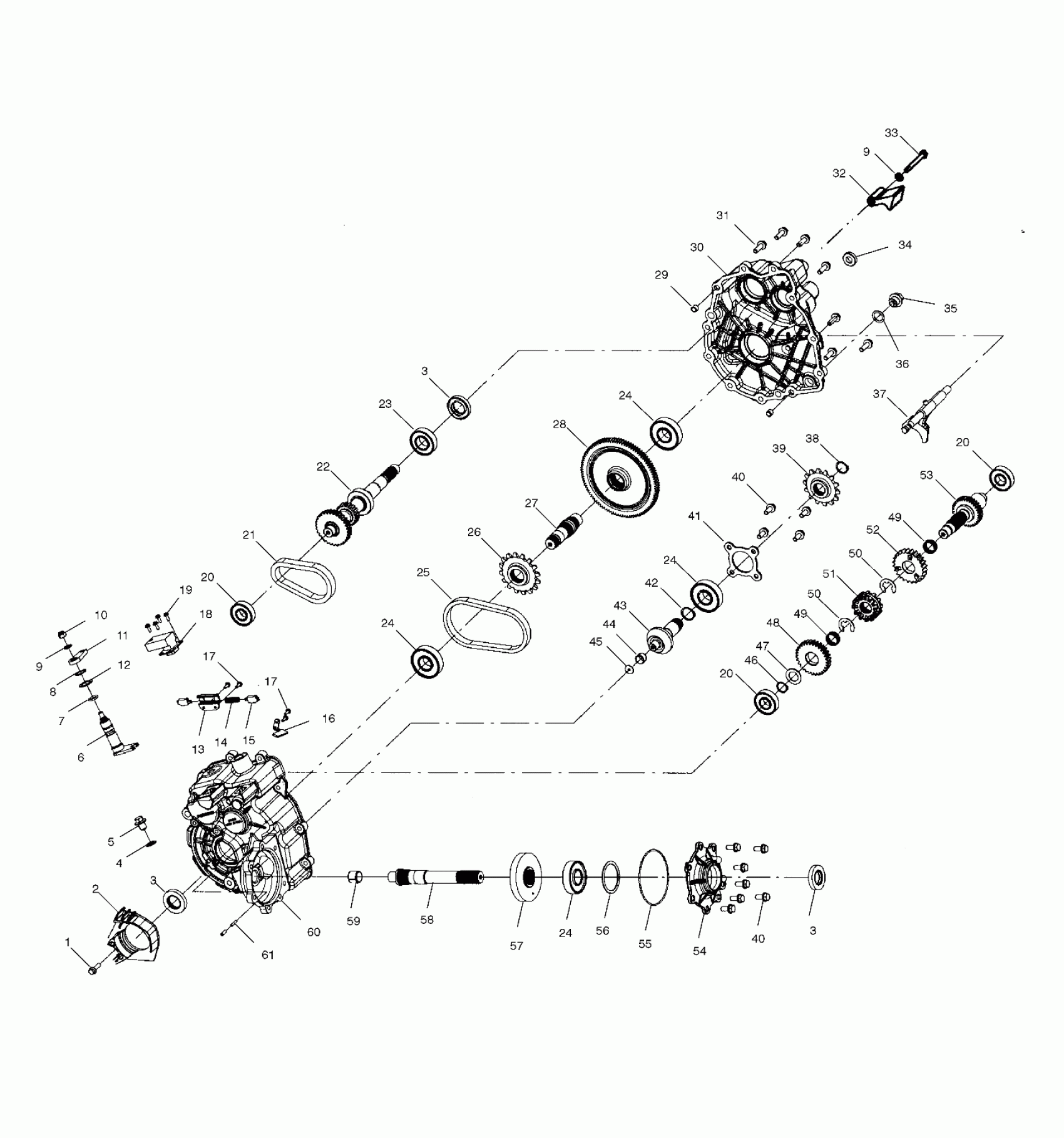

Polaris SCRAMBLER 400 4X4 - A02BG38CA GEARCASE - A02BG38CA (4974677467C07) Diagram

#

Description
Price

-

Asm., Gearcase [Incl.1-61]

1341380

Unavailable

1

Screw

3233026

$6.46

2

Guide, Chain

3233897

$59.99

3

Seal, Triple Lip

3233788

$32.37

3

Seal, Triple Lip

3233788

$32.37

3

Seal, Triple Lip

3233788

$32.37

4

Washer

3233324

$8.54

5

Plug

3233711

Unavailable

6

Shaft, Shift

3233549

Unavailable

7

O-Ring

3233548

$33.24

8

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.76

9

Washer

3233054

$6.46

9

Washer

3233054

$6.46

10

Nut, FLEXLOC

3233055

$3.32

11

Bellcrank

3233547

$56.99

12

Washer

3233040

$9.52

13

Bracket, Interlock

3233309

$20.48

14

Spring, Shifting Interlock

3233550

Unavailable

15

Pin, Interlock

3233308

Unavailable

16

Deflector, Oil

3233043

$13.10

17

Screw, Tapping, Torx

3233747

Unavailable

17

Screw, Tapping, Torx

3233747

Unavailable

18

Switch, H/R

3233635

$174.99

19

Screw, Tapping, Torx

3233749

$5.65

20

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

20

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

20

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

21

Chain, Silent

3233036

Unavailable

22

Shaft, Input

3233536

$220.49

23

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

24

BEARING

3233020

$47.62

24

BEARING

3233020

$47.62

24

BEARING

3233020

$47.62

24

BEARING

3233020

$47.62

25

Chain, Roller 26P

3233546

$68.79

26

Sprocket, 16/26T

3233545

$55.56

27

Shaft, Output

3233544

$174.99

28

Gear, 96T

3233543

$249.21

29

Pipe, Knock

3233529

$10.99

30

Gearcase, LH Mach

3233632

$354.99

31

Screw

3233252

$5.69

32

Dampener, Carb Vibration

3233526

Unavailable

33

Screw

3233525

$1.59

34

Bushing, Pivot

3233527

$39.99

35

Plug

3233448

$23.81

36

Washer

3233035

Unavailable

37

Fork, Shift High/Rev., Mach

3233633

$141.65

38

Ring, Retaining

3233537

$6.99

39

Sprocket, 14/22T

3233538

Unavailable

40

Screw

3233539

Unavailable

40

Screw

3233539

Unavailable

41

Bearing, Cover, Center Drive

3233263

Unavailable

42

RING, RETAINING

3233306

$4.76

43

Shaft, Pinion 13T

3233540

$158.73

44

Bushing, Garlock

3233541

$23.81

45

Washer, Thrust Button Pinion

3233542

$11.32

46

Ring, Retaining

3233177

$6.46

47

WASHER, THRUST

3233176

$9.52

48

Gear, 30T

3233722

Unavailable

49

BEARING, NEEDLE

3233718

$35.71

49

BEARING, NEEDLE

3233718

$35.71

50

Ring, Retaining, E-Ring

3233720

$9.52

50

Ring, Retaining, E-Ring

3233720

$9.52

51

Dog, Engagement

3233721

Unavailable

52

Sprocket, 24T

3233719

$109.27

53

Shaft, Reverse 33T

3233717

$233.33

54

Cover, Snorkel

3233556

$31.11

55

O-Ring

3233555

$6.06

56

SHIM

3233554

Unavailable

57

Gear, 25T

3233898

$229.37

58

Shaft, Snorkel

3233899

$133.56

59

BUSHING-GARLOCK

3233552

$23.81

60

Gearcase, RH

3233896

$499.99

61

Tube, Vent

3233037

Unavailable
