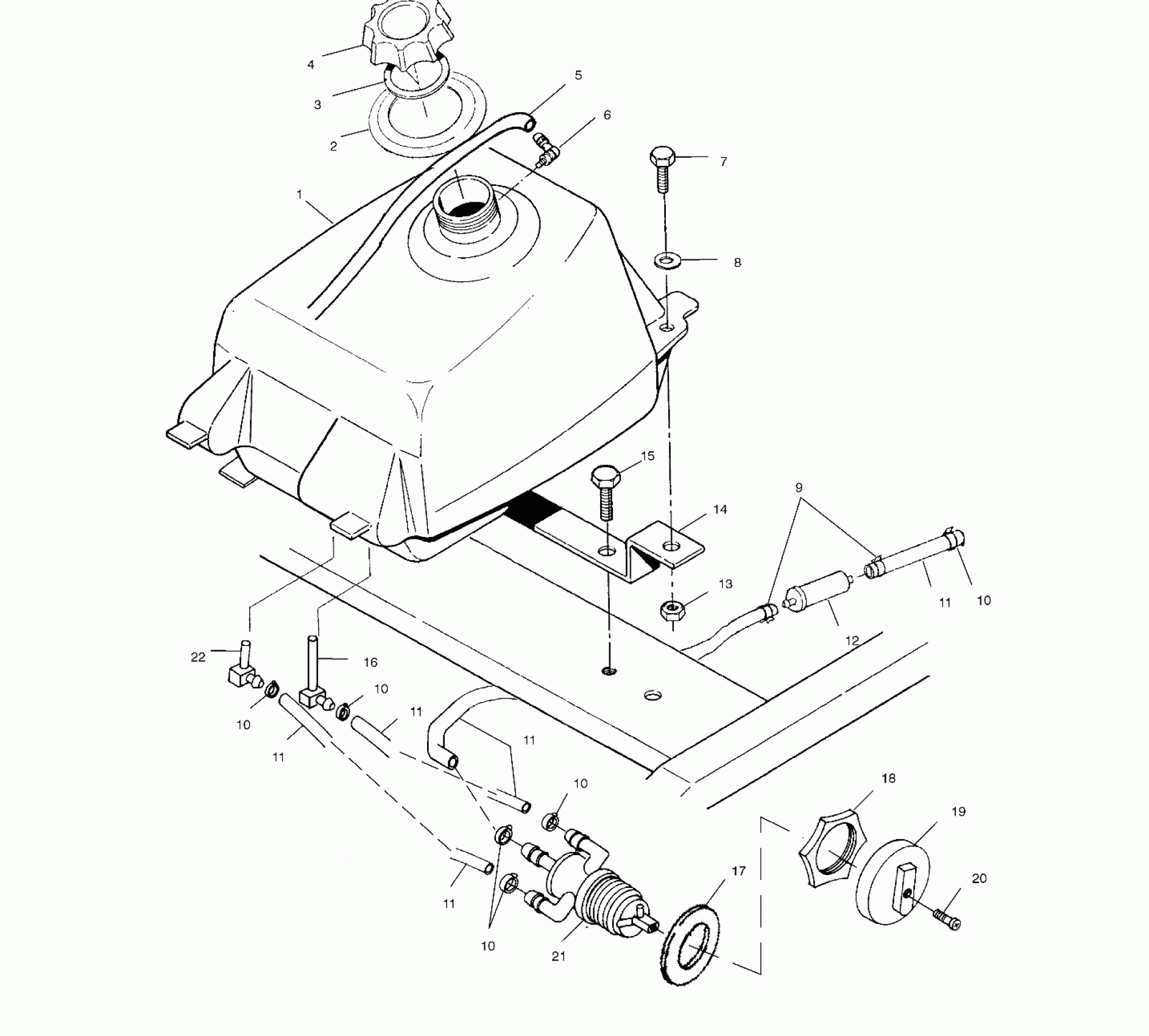

Polaris SCRAMBLER 400 4X4 - A02BG38CA FUEL TANK - A02BG38CA (4974677467B02) Diagram

#

Description
Price

1

Asm., Fuel Tank [Incl. 6,16,22]

1240082

Unavailable

2

Grommet, Tank, Fuel

5410842

Unavailable

3

Gasket, Cap, Fuel

5810144

$5.59

4

Cap, Tank, Fuel

5433687

$20.22

5

LINE, FUEL

8360009-600

Unavailable

6

Vent

5431053

$19.99

7

Bolt

7512310

$2.39

8

Washer, Flat

7555734

$1.49

9

Clamp

7080534

$1.59

10

HOSE CLAMP, RED

7080003

$1.49

10

HOSE CLAMP, RED

7080003

$1.49

10

HOSE CLAMP, RED

7080003

$1.49

10

HOSE CLAMP, RED

7080003

$1.49

10

HOSE CLAMP, RED

7080003

$1.49

11

Line, Fuel

8450040-600

Unavailable

11

Line, Fuel

8450040-600

Unavailable

11

Line, Fuel

8450040-600

Unavailable

11

Line, Fuel

8450040-600

Unavailable

11

Line, Fuel

8450040-600

Unavailable

12

Filter

2530008

$4.84

13

NUT-5/16-18 NYLOK-Y

7542324

$1.49

14

Bracket, Tank Mount, Rear

5220916-067

Unavailable

15

Screw

7512208

$3.99

16

Fitting, Fuel Outlet, Main, 90 Degree

7052147

Unavailable

17

Spacer, Valve, Fuel

5242977

Unavailable

18

Nut, Valve, Fuel

5432733

Unavailable

19

Knob, Valve, Fuel

5432559

$10.39

20

Screw

7517505

$1.59

21

Valve, Fuel, 3-Way

7052154

$39.99

22

Fitting, Fuel Outlet, 90 Degree

7052148

Unavailable
