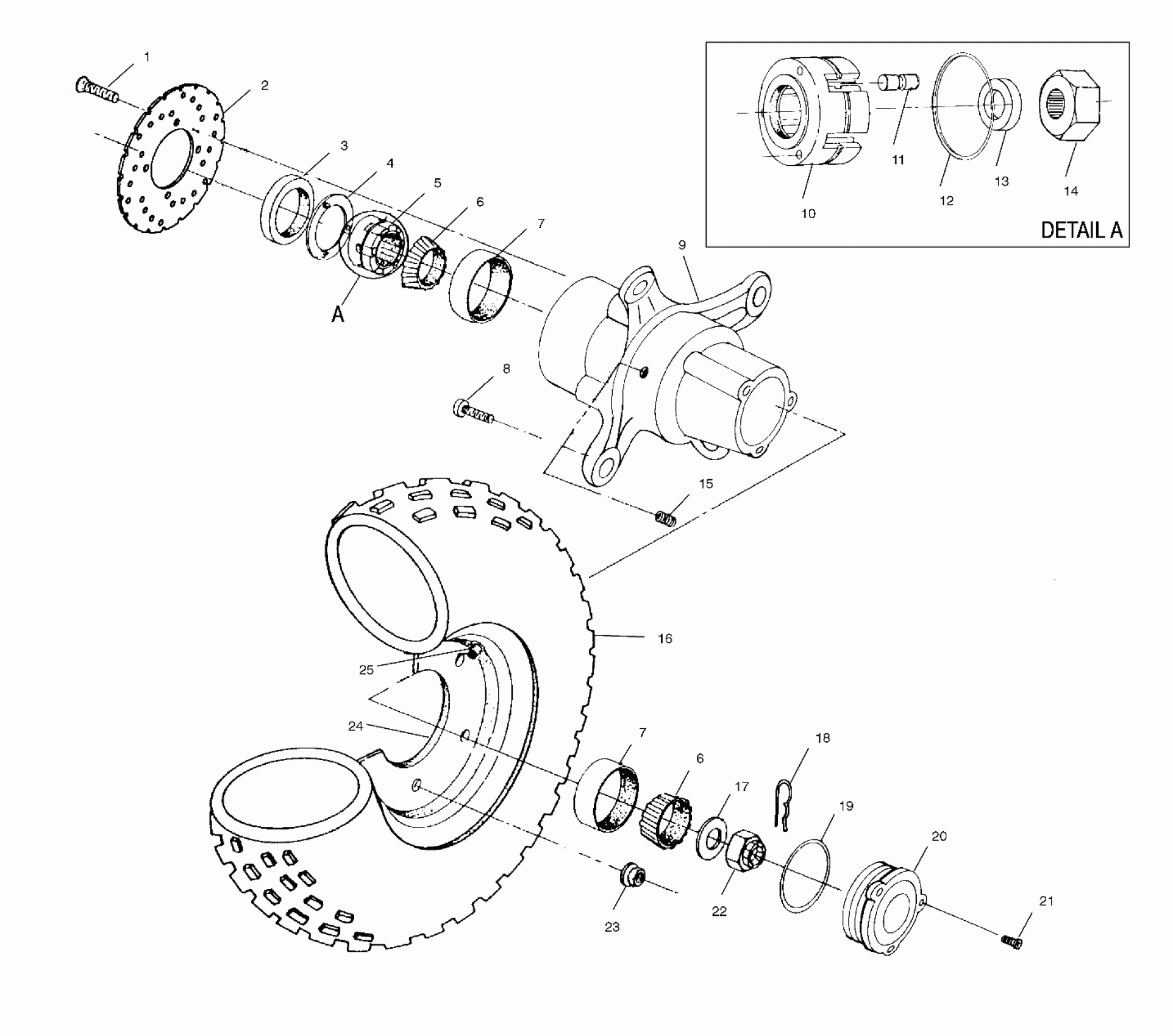

Polaris SCRAMBLER 400 4X4 - A02BG38CA FRONT WHEEL - A02BG38CA (4974677467B08) Diagram

#

Description
Price

1

BOLT

7512325

$2.38

2

Disc, Brake

5243675

Unavailable

3

Seal, Front Hub

3610019

$36.41

4

Plate, Armature

5211148

$28.32

5

Asm. Clutch, Front Hub, Elec./Mech. [Splined Drive Shaft]

1520281

$374.99

6

Bearing, Tapered Roller Cone

3554506

$31.75

6

Bearing, Tapered Roller Cone

3554506

$31.75

7

Bearing, Tapered Roller Cup

3554507

$31.75

7

Bearing, Tapered Roller Cup

3554507

$31.75

8

Stud

7515523

$3.17

9

Kit, Wheel Hub Asm., w/Cap [Incl. 3,7,8]

2202595

Unavailable

10

Cage, Roll

3250028

Unavailable

11

Roll

3250010

$24.74

12

Spring, Garter

3250032

$17.46

13

Spacer

1321814

$24.99

14

Cam

3250030

$208.16

15

Plug, Magnetic Drain

7052045

$13.75

16

Tire, Titan [23x7-10]

5411264

Unavailable

17

WASHER

7556004

$7.14

18

PIN, COTTER

7661401

$0.79

19

O-Ring

5410470

$2.41

20

Cap, Hub

5432611

$14.56

21

Screw

7512027

$1.19

22

Nut

7542810

$3.17

23

NUT-HXFL-3/8-24 B ZTB P-A

7542459

$1.59

24

Rim, Front

1520207-117

Unavailable

25

VALVE-RIM

1525017

$6.46
