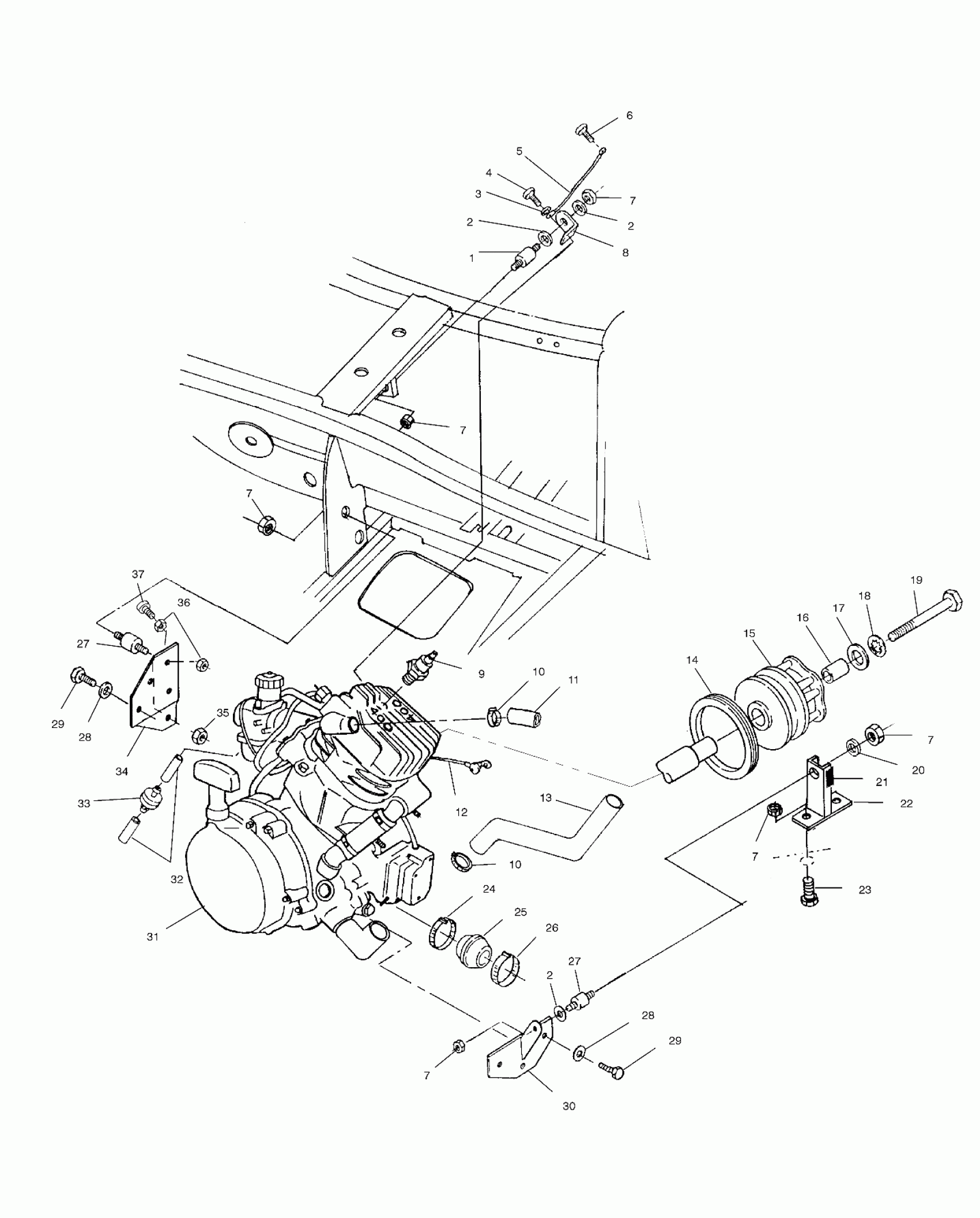

Polaris SCRAMBLER 400 4X4 - A02BG38CA ENGINE MOUNTING - A02BG38CA (4974677467A07) Diagram

#

Description
Price

1

Mount, Motor

3110038

Unavailable

2

WASHER, FLAT

7555823

$3.99

2

WASHER, FLAT

7555823

$3.99

2

WASHER, FLAT

7555823

$3.99

3

WASHER, SPRING LOCK

7552901

$1.49

4

BOLT

7512315

$4.79

5

Cable, Ground, Engine

4010132

Unavailable

6

SCREW

7512232

$1.49

7

NUT, FLANGE LOCK

7547108

$4.79

7

NUT, FLANGE LOCK

7547108

$4.79

7

NUT, FLANGE LOCK

7547108

$4.79

7

NUT, FLANGE LOCK

7547108

$4.79

7

NUT, FLANGE LOCK

7547108

$4.79

7

NUT, FLANGE LOCK

7547108

$4.79

8

Bracket, Mount, Engine, Top

5242692-067

Unavailable

9

Plug, Spark, NGK BR8ES

3070156

$3.99

10

CLAMP, HOSE

7080614

$7.19

10

CLAMP, HOSE

7080614

$7.19

11

HOSE, ENGINE, UPPER [See Cooling System Pg. B1, Ref. 10]

-------

Unavailable

12

Cable, Solenoid/Starter, Red

4010218

$47.99

13

HOSE, ENGINE, LOWER [See Cooling System Pg. B1, Ref. 23]

-------

Unavailable

14

SEAL, CASE, COVER [See Clutch Cover Pg. A12, Ref. 29]

-------

Unavailable

15

ASM., DRIVE CLUTCH, BASIC ATV-06 [See Drive Clutch Pg. A14, Ref. 14]

-------

Unavailable

16

BUSHING-.437 X.770 X.50

5430261

$7.19

17

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

18

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

19

BOLT

7512566

$30.79

20

Washer, Flat

7555806

$1.49

21

Trim, Edge

8360012-04

Unavailable

22

Mount, Engine, Front

1040687-067

$15.56

23

Screw

7515481

$2.63

24

Clamp

7080511

$4.79

25

Boot, Clutch Intake

5410883

$7.99

26

Clamp, Band, Narrow

7080656

Unavailable

27

Mount, Rubber

3110042

Unavailable

27

Mount, Rubber

3110042

Unavailable

28

Washer, Spring Lock

7552603

$1.49

28

Washer, Spring Lock

7552603

$1.49

29

Screw

7512490

$3.99

29

Screw

7512490

$3.99

30

Mount, Engine, Front

1040231-067

Unavailable

31

Asm., Engine, EC38PLE09

1211652

Unavailable

32

LINE, FUEL

8360009-600

Unavailable

33

VALVE, CHECK, VENT

7051011

Unavailable

34

Bracket, Mount, Engine, Rear

5242463-067

$56.99

35

Nut, FLEXLOC

7542411

$3.19

36

Nut, Jam

7542432

$3.99

37

Mount, Torque Stop

3110048

$7.43
