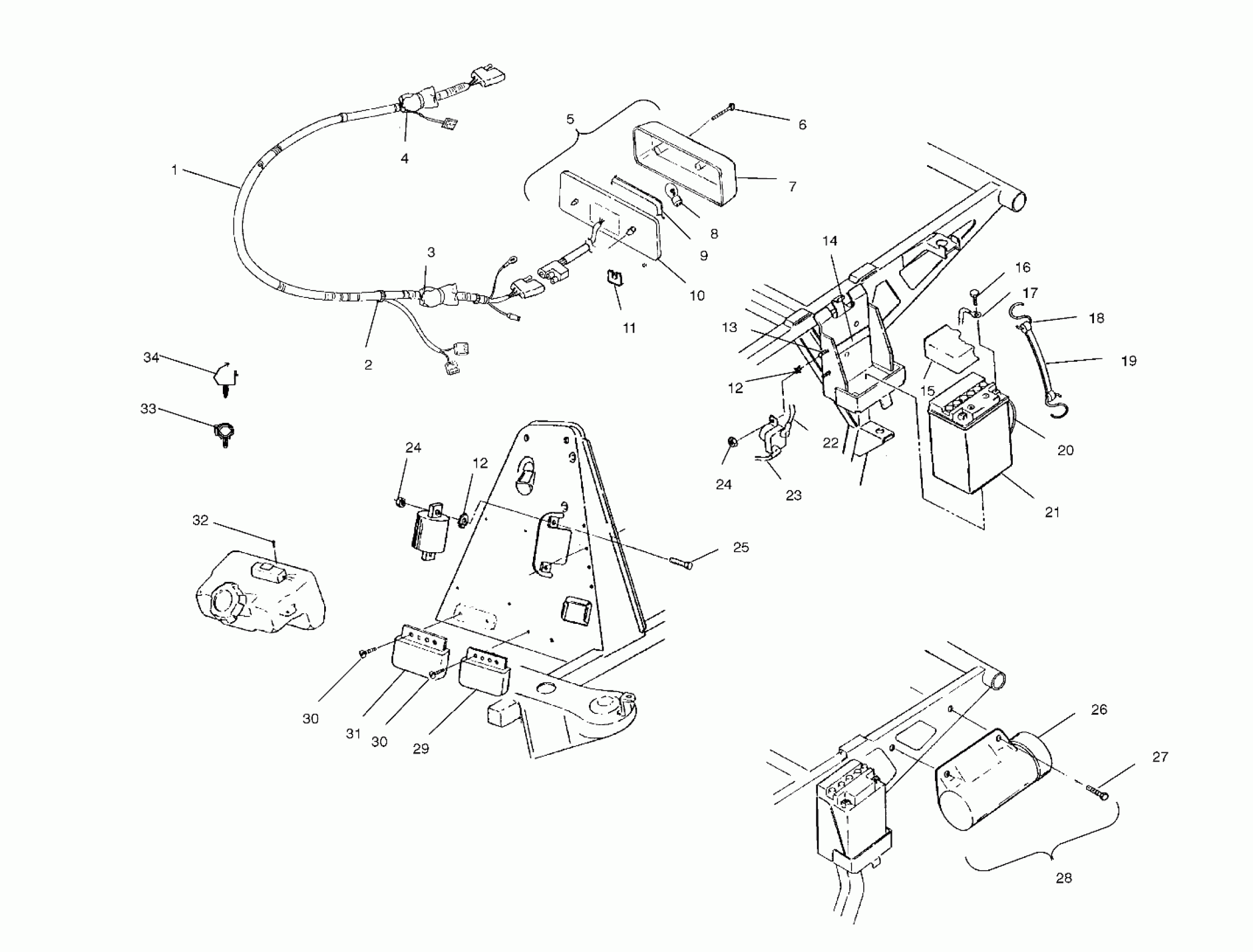

Polaris SCRAMBLER 400 4X4 - A02BG38CA ELECTRICAL/TAILLIGHT - A02BG38CA (4974677467B06) Diagram

#

Description
Price

1

Kit, Fusible Link

2202147

$84.99

1

Harness, Wire, Main

2461008

Unavailable

2

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

3

Kit - Circuit Breaker, 20 AMP

2200593

$68.79

4

Kit - Circuit Breaker, 10 AMP

2201795

$72.84

5

Asm., Taillight, 12V (If built after 1/01/02)

2410319

$84.98

5

Light, Tail/Brake (If built before 1/01/02)

2432038

$84.98

6

Screw

7512088

$1.64

7

Lens

4032085

$36.41

8

Bulb

4030043

$6.46

9

Gasket

4032086

Unavailable

10

Backing

4032087

Unavailable

11

Clip

7670093

Unavailable

12

Washer, Lock

7571602

$4.76

12

Washer, Lock

7571602

$4.76

13

Screw

7512027

$1.19

14

PAD-BATTERY

5810290

$7.27

15

Cover, Battery

5431769

$15.37

16

Kit - Battery Bolt, Short

2200361

Unavailable

17

Cable, Battery/Engine, Black

4010095

Unavailable

18

Hook, Strap, Battery

7010032

$1.59

19

Strap, Holddown, Battery

5410424

$4.84

20

Tube, Battery Vent

5432077

$8.89

21

Battery

4140006

$99.99

22

Cable, Battery/Solenoid, Red

4010094

Unavailable

23

Cable, Solenoid/Starter, Red

4010218

$48.56

24

Nut, Nylok

7541925

$0.79

24

Nut, Nylok

7541925

$0.79

25

BOLT

7512007

$3.97

26

Gasket

5812027

Unavailable

27

SCREW

7517386

$1.19

28

Asm., Tool Box [Incl. 26]

2632221

Unavailable

29

Rectifier, LR39-1

4060208

Unavailable

30

SCREW

7512024

$4.76

30

SCREW

7512024

$4.76

31

Limiter, RPM

4010188

Unavailable

32

SCREW

7512076

$1.19

33

Clip, Rosebud

4020149

$6.35

34

CLIP, ROUTING

7670109

$2.38
