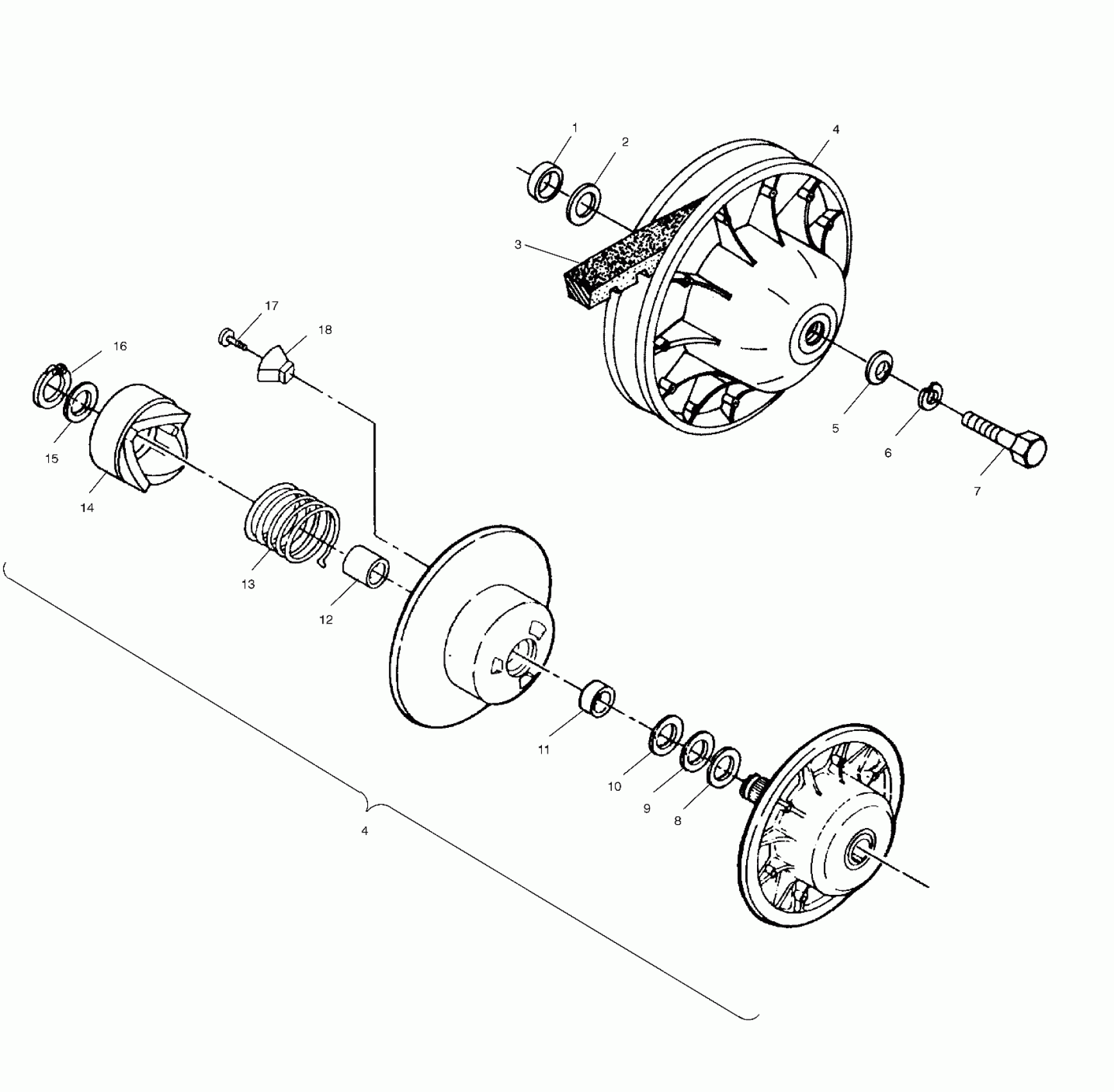

Polaris SCRAMBLER 400 4X4 - A02BG38CA DRIVEN CLUTCH - A02BG38CA (4974677467A13) Diagram

#

Description
Price

1

Spacer, Driven Clutch

5010266

Unavailable

2

BUSHING [3 MAX]

7556120

Unavailable

3

BELT, DRIVE

3211077

$63.99

4

Asm., Driven Clutch [Incl. 8-12,15-18]

1322180

$614.99

4

Asm., Driven Clutch [Incl. 8-12,15-18]

1322180

$614.99

5

Washer, Domed

5220646

$2.39

6

WASHER, SPRING LOCK

7552901

$1.49

7

BOLT

7515382

$2.39

8

Washer [.020]

7555898

Unavailable

9

Washer [.025]

7556076

Unavailable

10

Washer [.030]

7556804

Unavailable

11

BEARING, MOVEABLE, 1/2 INCH

3576504

$23.99

12

BUSHING-MOVEABLE, 1.0 DU

3576511

$27.99

13

Spring, Clutch

7041198

$52.60

14

RAMP, STATIONARY

5131446

$87.99

15

Spacer

5210752

$1.59

16

Ring, Retaining

7710448

$3.19

17

Bolt

7511854

$1.49

18

Button, Ramp

5430766

Unavailable
