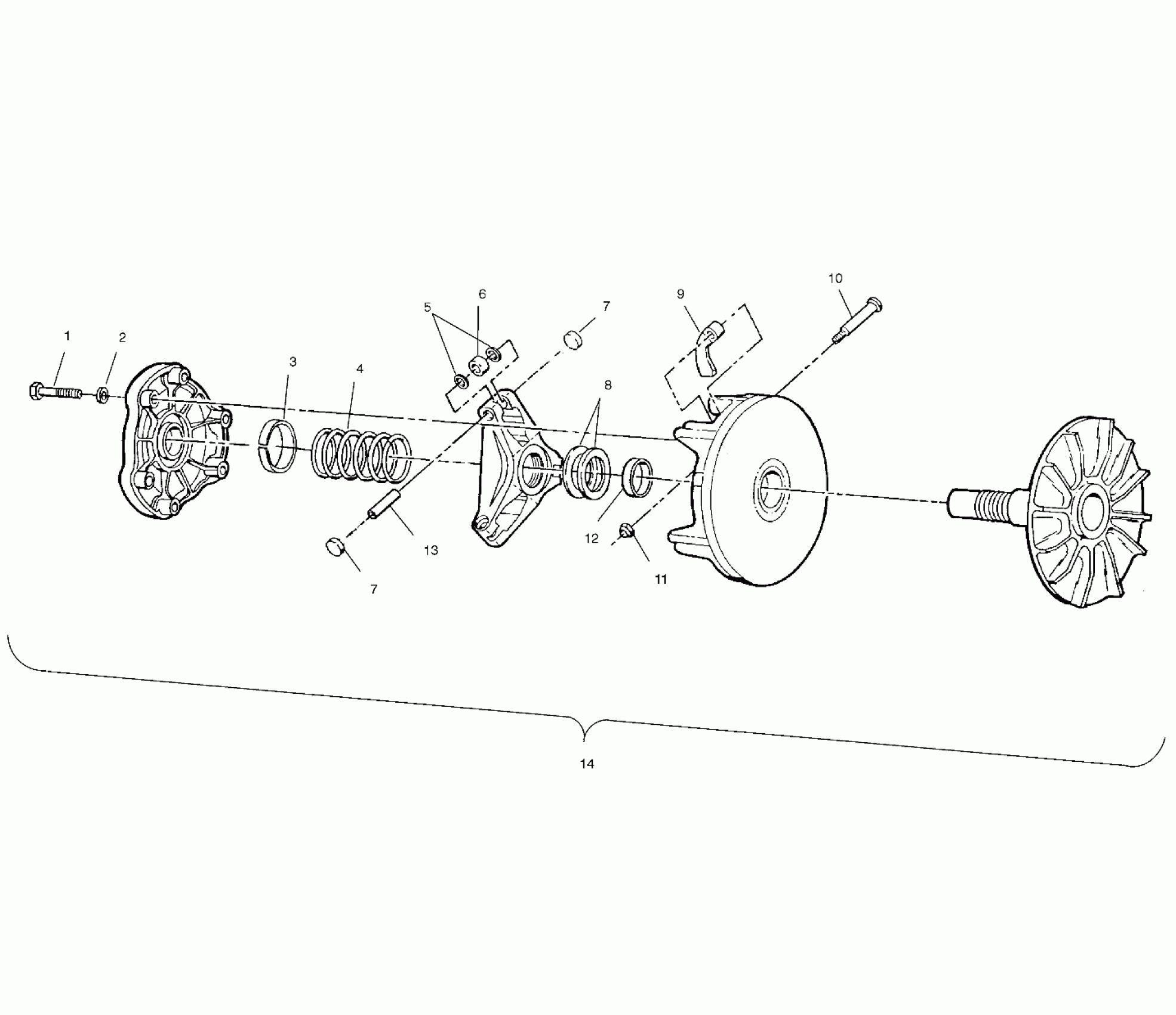

Polaris SCRAMBLER 400 4X4 - A02BG38CA DRIVE CLUTCH - A02BG38CA (4974677467A14) Diagram

#

Description
Price

1

Bolt

7512176

Unavailable

2

WASHER, SPRING LOCK

7552801

$1.59

3

COVER, BEARING

3576510

$9.59

4

Clutch, Spring

7041132

$64.99

5

WASHER,MULTILUBE

5430945

$1.59

6

ASM-ROLLER AND BUSHING

1321457

$40.46

7

Button, Clutch, Stemless

5431936

Unavailable

7

Button, Clutch, Stemless

5431936

Unavailable

8

Spacer [.050]

5210754

Unavailable

8

Spacer [.025]

5242981

Unavailable

8

Spacer [.020]

5210752

Unavailable

8

Spacer [.032]

5210753

Unavailable

9

Weight, Shift [S-55]

5630509

$31.99

10

BOLT, SHOULDER

7512266

$3.19

11

NUT, FLEXLOC

7541906

$3.19

12

BEARING, MOVEABLE, 1/2 INCH

3576504

$23.99

13

PIN-ROLLER

5020422

$2.39

14

Asm., Drive Clutch, ATV-06 [Incl. All Less 4,9]

1321632

$697.13
