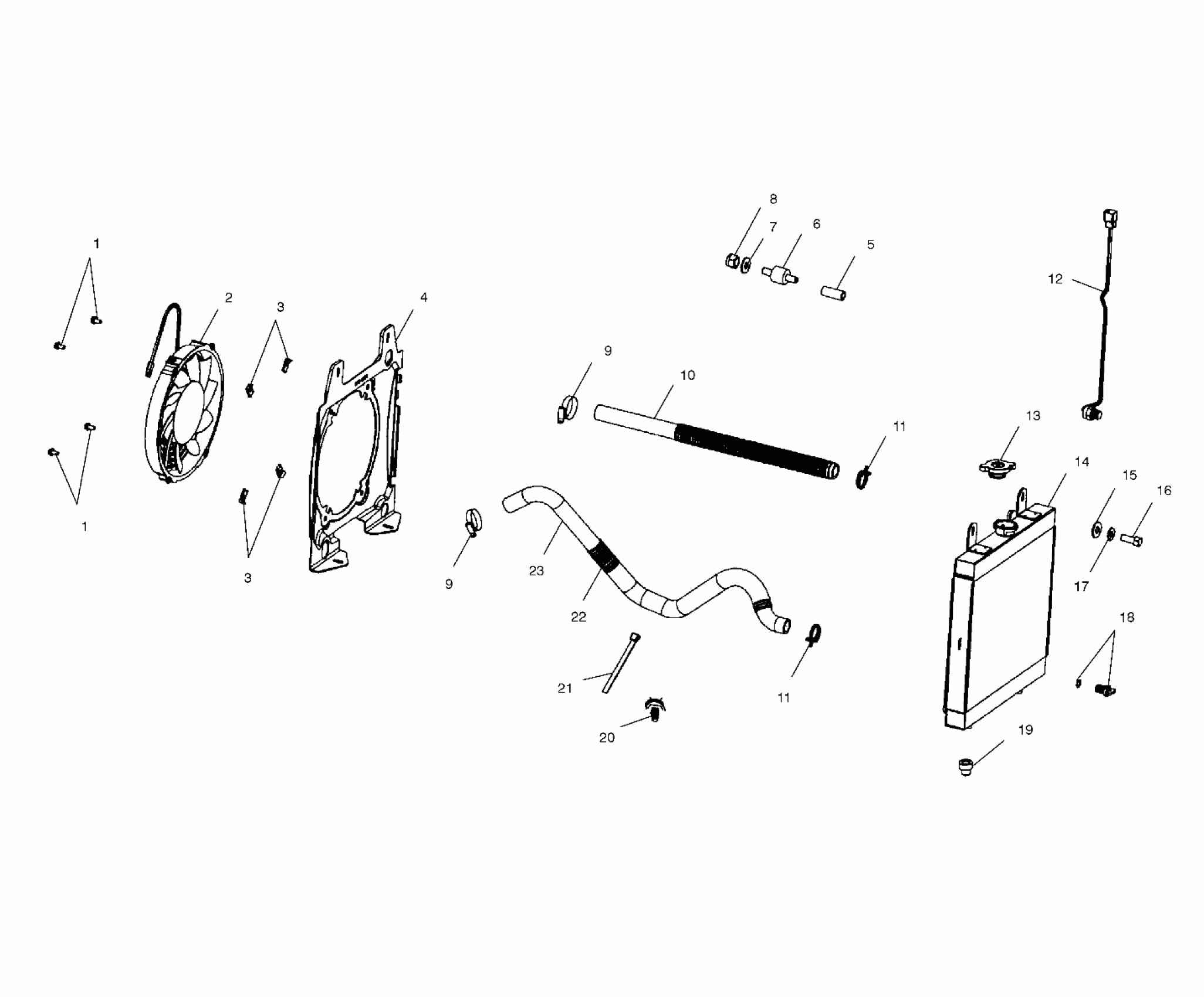

Polaris SCRAMBLER 400 4X4 - A02BG38CA COOLING SYSTEM - A02BG38CA (4974677467B01) Diagram

#

Description
Price

1

Screw

7517659

$3.97

1

Screw

7517659

$3.97

2

Asm., Fan and Motor

2410123

$214.69

3

U-Clip

7670111

Unavailable

3

U-Clip

7670111

Unavailable

4

Shroud

5434043

$73.81

5

Spacer, Radiator Mount

5020937

Unavailable

6

Mount, Rubber

3110032

Unavailable

7

Washer, Flat

7558301

$1.19

8

Nut, Nylok

7542122

$1.19

9

CLAMP, HOSE

7080614

$7.14

9

CLAMP, HOSE

7080614

$7.14

10

Hose, Engine, Upper

5411986

Unavailable

11

Clamp

7080826

$4.76

11

Clamp

7080826

$4.76

12

Sensor, Thermal w/Harness

4010161

$128.24

13

Cap, Pressure

1240093

Unavailable

14

Radiator

1240090

Unavailable

15

Washer, Flat

7558301

$1.19

16

Screw

7512240

$3.97

17

WASHER, SPRING LOCK

7552801

$1.59

18

Valve, Drain

7052296

Unavailable

19

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.56

20

MOUNT, CABLE TIE

7080965

$7.27

21

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

22

Guard, Plastic Hose

5521550

$10.51

23

Hose, Engine, Lower

5411989

Unavailable
