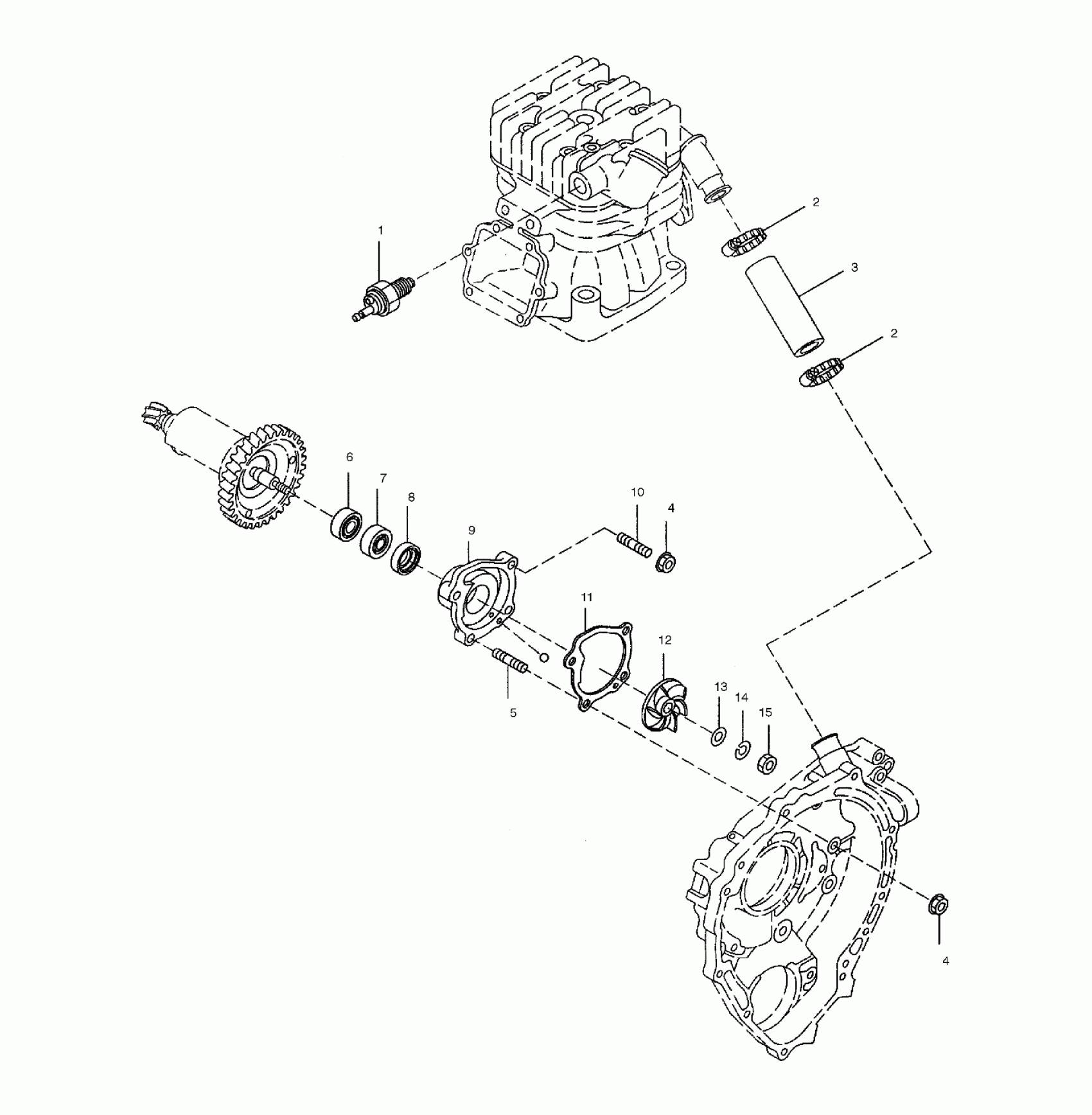

Polaris SCRAMBLER 400 2X4 - A02BA38CA WATER PUMP - A02BA38CA (4969936993D02) Diagram

#

Description
Price

1

Switch, Thermostat

3084284

Unavailable

2

CLAMP, HOSE

3086774

Unavailable

2

CLAMP, HOSE

3086774

Unavailable

3

Hose, Main

3086773

Unavailable

4

NUT, FLANGE

3083856

$2.39

4

NUT, FLANGE

3083856

$2.39

5

Stud

3086772

$3.83

6

Bearing, Ball

3084183

Unavailable

7

Seal, Oil

3084184

Unavailable

8

Seal, Oil

3084185

Unavailable

9

Casing [Incl. 5,6,7,8,10]

3086770

Unavailable

9

Casing [Incl. 5,10]

3086771

Unavailable

10

Stud

3086775

Unavailable

11

Gasket

3084187

$12.39

12

Impeller

3084186

Unavailable

13

Washer

3082206

$1.49

14

Washer, Spring

3080077

$2.39

15

Nut

3083073

$2.39
