Description

Price

1

Cover, Rear

3085032

$82.39

1

Cover, Rear

3085032

$82.39

2

NUT, FLANGE

3083649

$3.99

3

Brush

3084406

Unavailable

4

Asm., Starter [Incl. 1-5,8-10,12-16]

3085393

Unavailable

4

Asm., Starting Motor [Incl. 1-5,8-10,12-17,20-24]

3087043

Unavailable

5

RING, RUBBER

3084405

Unavailable

5

RING, RUBBER

3084405

Unavailable

6

Gasket

3082758

$1.19

7

Bolt, Flange

3086782

Unavailable

7

Bolt, Flange

3086782

Unavailable

8

Cover, Front [Incl. 16]

3085305

$123.02

9

O-RING

3084408

Unavailable

10

Bolt, Through

3084407

Unavailable

11

Bracket

3086780

Unavailable

12

Washer Set

3083754

$2.39

13

Asm., Armature [Incl. 14,15]

3084404

$207.99

14

O-Ring

3083934

Unavailable

15

Bearing

3083777

$31.99

16

O-Ring

3083741

$9.37

17

WASHER

3240134

Unavailable

18

Gasket, Starter

3085283

Unavailable

19

Bolt, Flange

3086781

$4.79

20

CLIP

3084409

$7.19

21

SPRING, RETURN

3084410

$2.47

22

Asm., Gear Shaft [Incl. 17,20-24]

3087030

Unavailable

23

SPRING, WEIGHT

3084411

$15.67

24

CLIP

3084412

$9.59

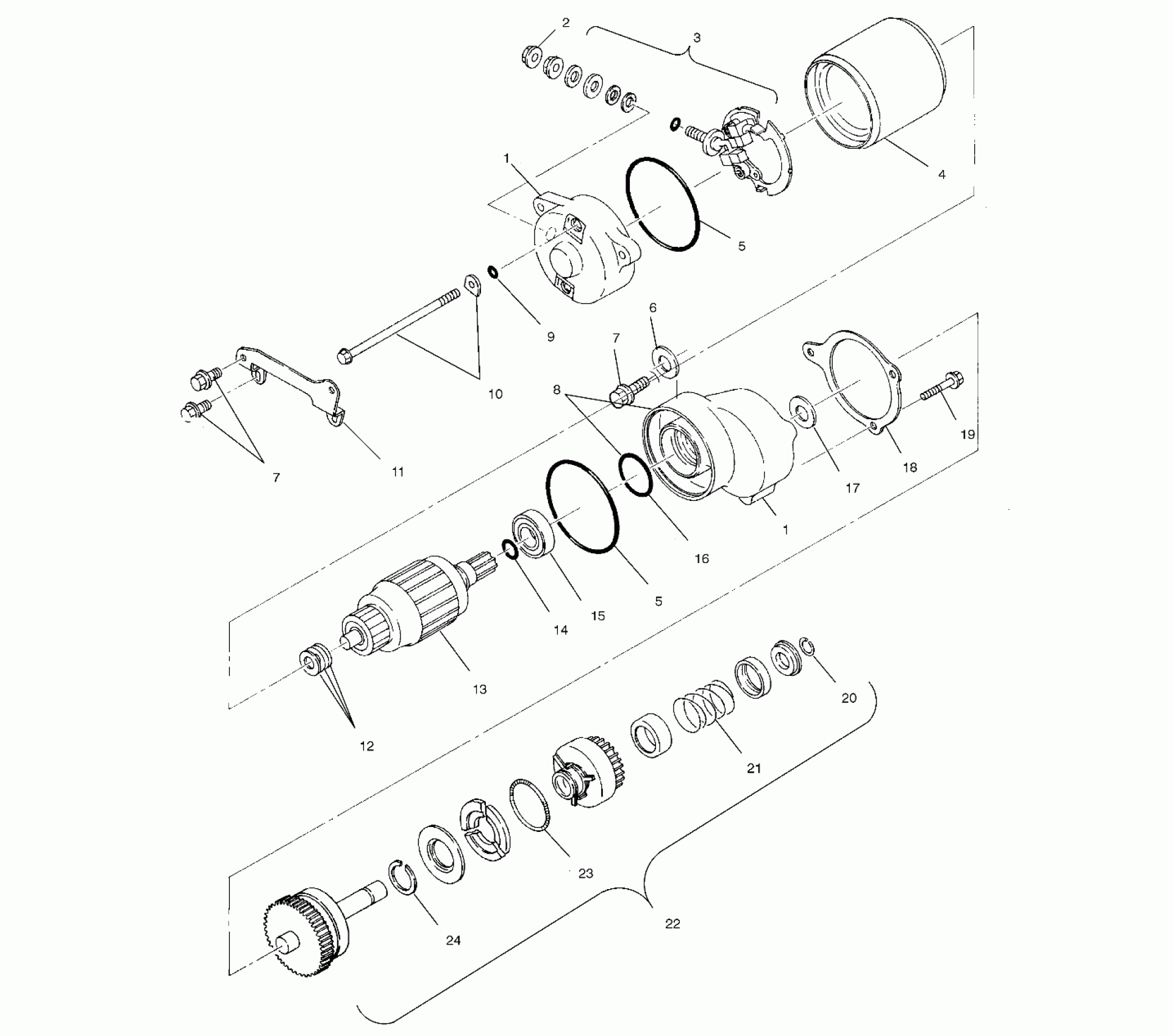

Polaris SCRAMBLER 400 2X4 - A02BA38CA STARTING MOTOR - A02BA38CA (4969936993D03) Diagram

Cover, Rear

Cover, Rear

NUT, FLANGE

Brush

Asm., Starter [Incl. 1-5,8-10,12-16]

Asm., Starting Motor [Incl. 1-5,8-10,12-17,20-24]

RING, RUBBER

RING, RUBBER

Gasket

Bolt, Flange

Bolt, Flange

Cover, Front [Incl. 16]

O-RING

Bolt, Through

Bracket

Washer Set

Asm., Armature [Incl. 14,15]

O-Ring

Bearing

O-Ring

WASHER

Gasket, Starter

Bolt, Flange

CLIP

SPRING, RETURN

Asm., Gear Shaft [Incl. 17,20-24]

SPRING, WEIGHT

CLIP
