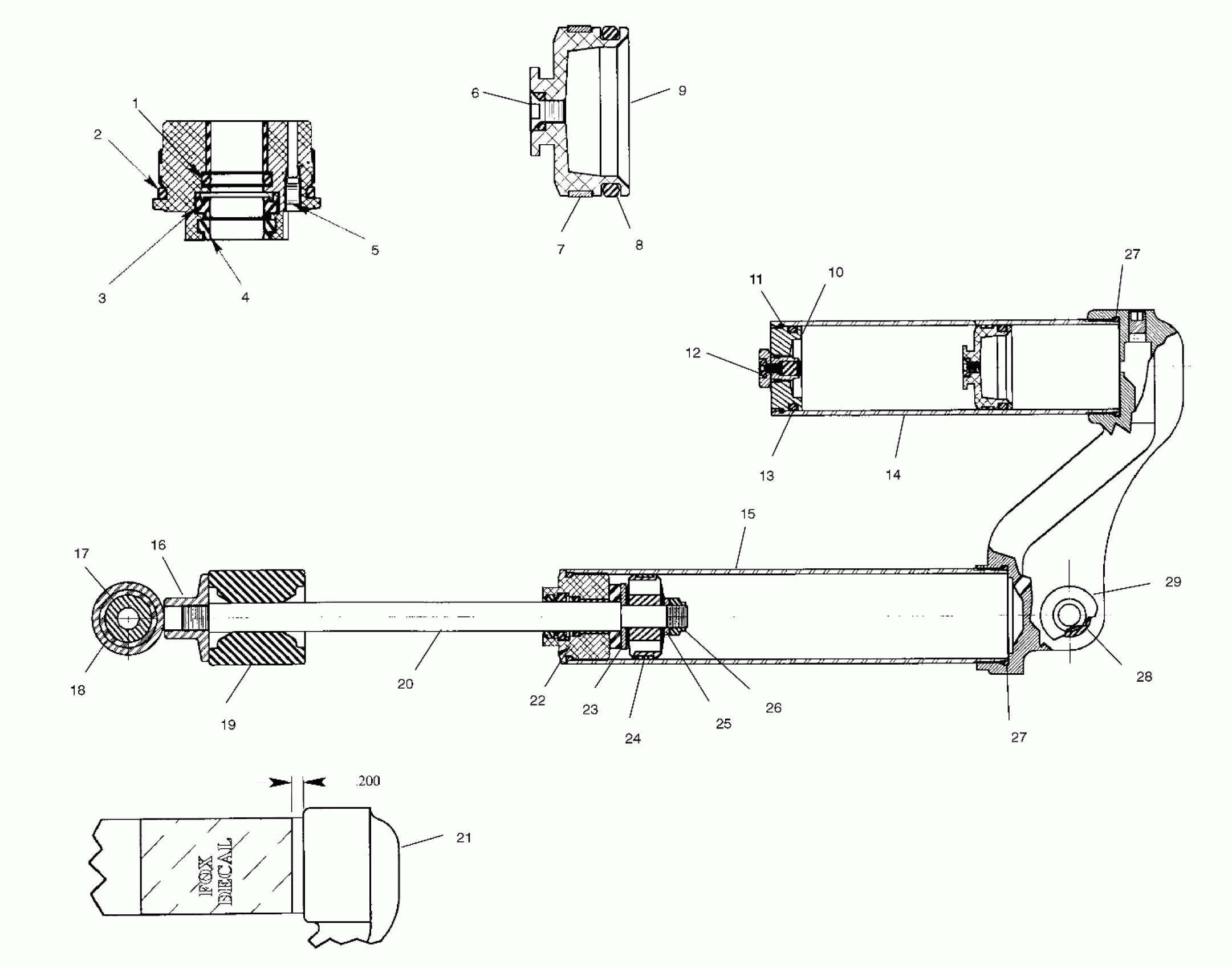

Polaris SCRAMBLER 400 2X4 - A02BA38CA SHOCK (FOX/GAS/RESERVOIR) - A02BA38CA (4969936993C04) Diagram

#

Description
Price

-

Shock, Gas

7041867

Unavailable

1

O-Ring

1500021

$10.99

2

O-Ring

1500020

$10.63

3

Wiper, Inner

1500025

$28.32

4

Wiper, Clear, Outer

1500024

$15.48

5

Asm., Screw

1500287

Unavailable

6

O-Ring

1500023

$2.84

6

Screw

1500018

$5.56

7

Ring, Piston, Floating, Fox

1500006

$19.84

8

O-Ring, Fox End Cap

1500003

$8.89

9

Piston, IFP

1500011

$59.52

10

Asm., Cap, Reservoir, ATV Fox Shock [Incl. 11,12,13]

1500099

$49.21

11

Retaining Ring, ATV Fox Shock

1500097

$4.76

12

Asm., Air Valve

1500072

Unavailable

12

Screw

1500019

$6.35

12

O-Ring

1500022

Unavailable

13

O-Ring, ATV Fox Shock

1500098

$8.89

14

Asm., Reservoir

1500286

$126.98

15

Body

1500283

$61.90

16

Eyelet

1500013

$52.24

17

Bushing

1500102

Unavailable

18

BUSHING, EYELET

1500103

$8.89

19

Bumper, Compression

5410987

Unavailable

20

Shaft

1500284

Unavailable

21

Asm., Cap-Body, Fox ATV

1500282

$180.16

22

Asm., Bearing

1500285

Unavailable

23

Plate, Top-Out

1500017

Unavailable

24

Ring, Piston, Fox

1500002

$31.75

25

Bushing, Back-up

1500015

$6.76

26

Nut, Lock

1500016

$12.70

27

O-Ring, Fox

1500004

$1.83

27

O-Ring, Fox

1500004

$1.83

28

Sleeve

5020657

$15.87

29

Bushing, Eyelet

1500104

Unavailable
