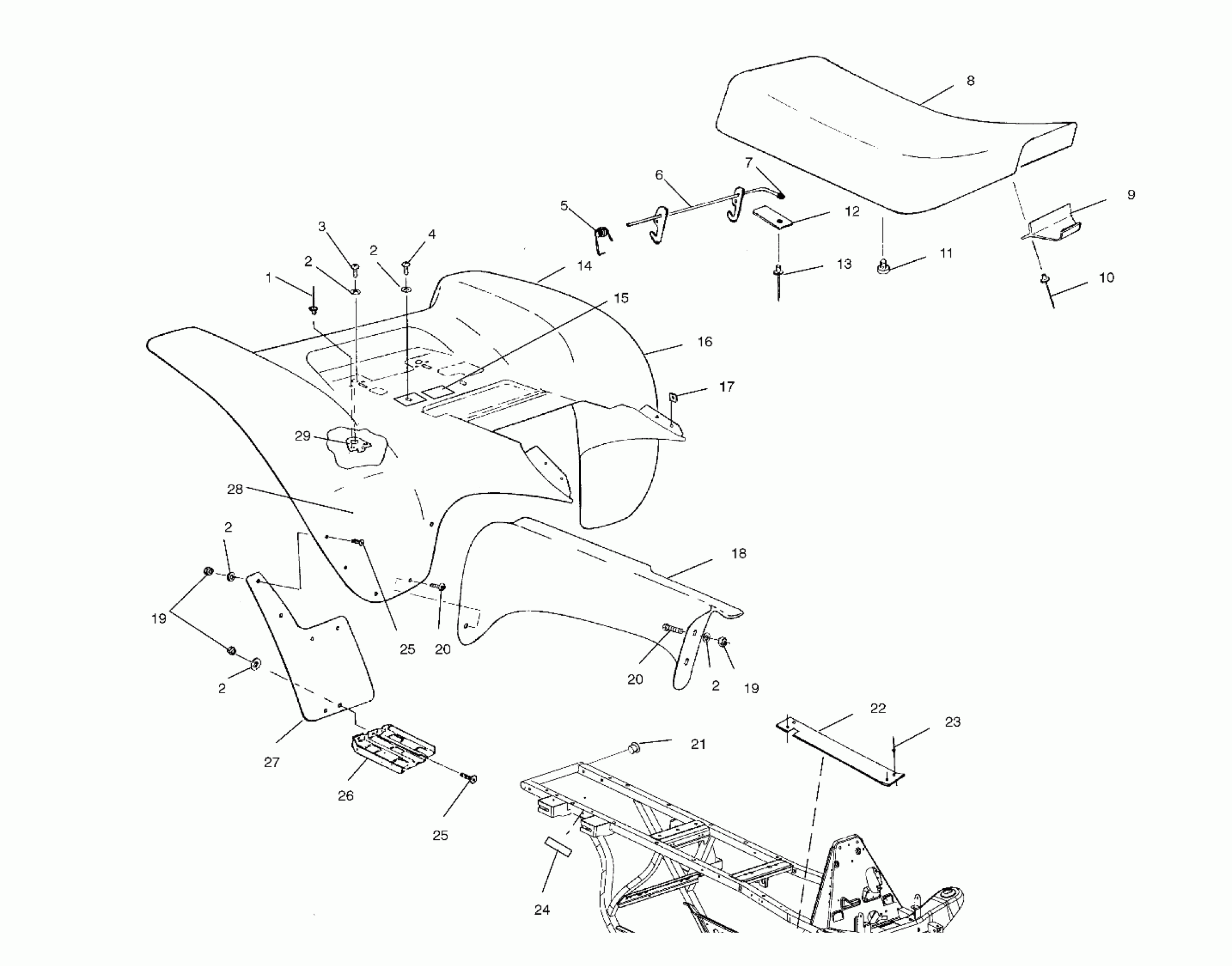

Polaris SCRAMBLER 400 2X4 - A02BA38CA REAR CAB - A02BA38CA (4969936993A04) Diagram

#

Description
Price

1

RIVET

7621472

$1.49

2

Washer, Flat

7555859

$1.49

2

Washer, Flat

7555859

$1.49

2

Washer, Flat

7555859

$1.49

2

Washer, Flat

7555859

$1.49

2

Washer, Flat

7555859

$1.49

3

SCREW

7512232

$1.49

4

SCREW

7512242

$2.39

5

Spring, Latch, Light

7041607

Unavailable

6

Latch, Seat

1040412

Unavailable

7

Cap, Seat Latch

5411392

Unavailable

8

Seat, Blazing Red

2682453-288

$524.99

8

Covering, Seat, Blazing Red

2681769-288

Unavailable

9

Tongue, Seat

5431986

$9.59

10

RIVET

7621479

$1.99

11

BUMPER-RUBBER

5412067

$3.99

12

BRACKET, LEVER RETAINER

5211033

$29.25

13

RIVET

7621403

$1.49

14

Foil, Rear Cab, Small

5810991

Unavailable

15

Decal, Carb/Filter Information

7079901

Unavailable

16

Cab, Rear, Blazing Red

5434014-288

$396.65

17

Nut, Speed, U-Type

7670057

$1.49

18

Shield, Muffler

2632274

Unavailable

18

Foil, Foam

5811113

Unavailable

19

Nut, Nylok

7542122

$1.49

19

Nut, Nylok

7542122

$1.49

20

Screw

7517264

$3.99

20

Screw

7517264

$3.99

21

Plug, End Cap, Ribbed

5432831

$5.59

22

Guard, Clutch

5241403-067

Unavailable

23

RIVET-3/16-.090-.290

7661637

$1.49

24

DECAL-REFLECT.2.88,RED

7079925

$7.19

25

Bolt

7512282

$1.49

25

Bolt

7512282

$1.49

26

FOOTPAD [SEE FRONT CAB PG. A3, REF. 14]

-------

Unavailable

27

Mudflap, Rear, RH

5850148

Unavailable

27

Mudflap, Rear, LH

5812134

$34.99

28

Foil, Rear Cab

5810957

Unavailable

29

Bracket, Rear Seat Holddown

5220880

Unavailable
