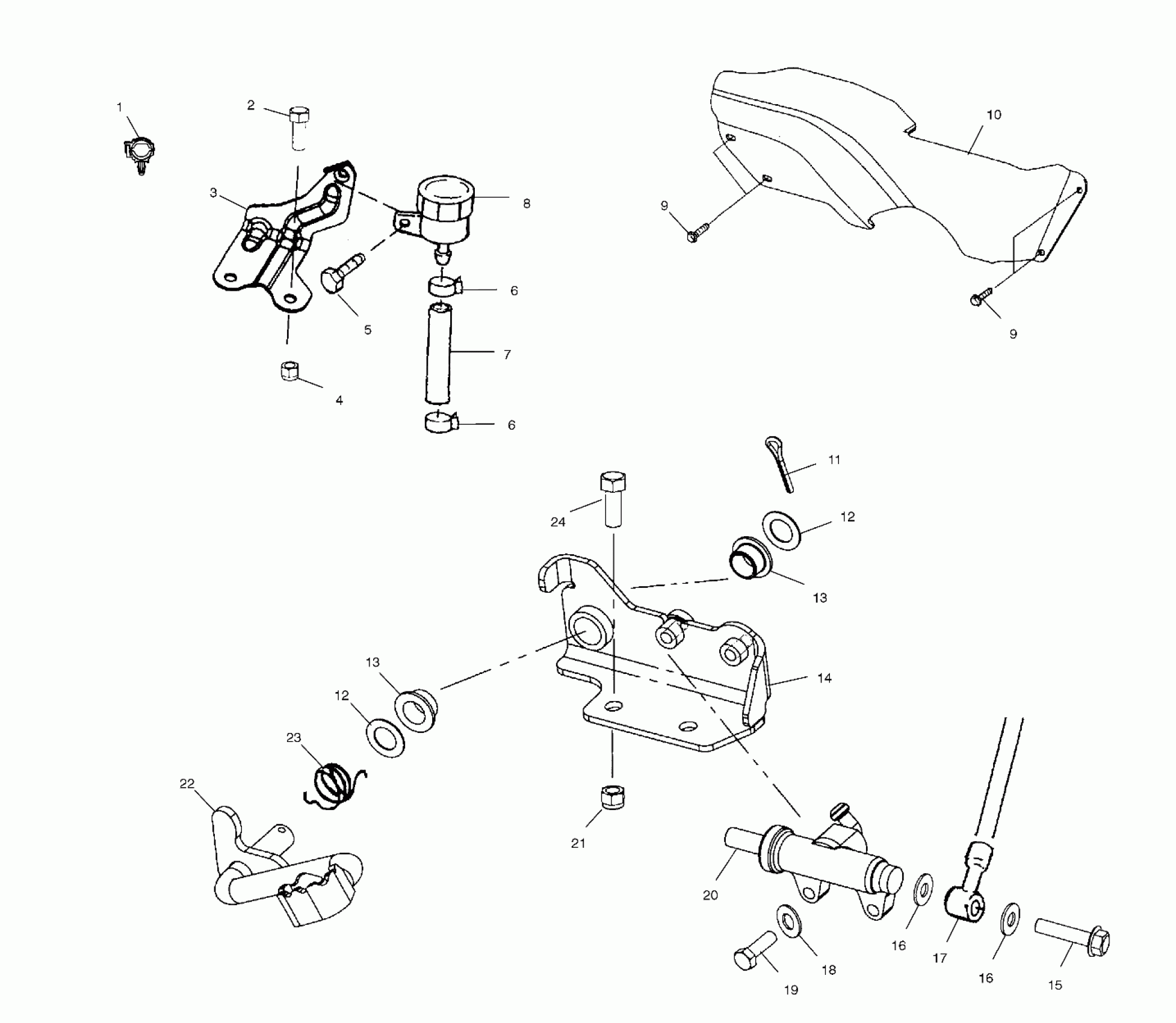

Polaris SCRAMBLER 400 2X4 - A02BA38CA REAR BRAKE MASTER CYLINDER - A02BA38CA (4969936993B11) Diagram

#

Description
Price

1

Clip

7670102

$2.39

2

Bolt

7512113

$3.99

3

Bracket, Reservoir Mount

5244091-067

$5.75

4

Nut, Nylok

7542122

$1.49

5

SCREW

7517386

$1.49

6

HOSE CLAMP, RED

7080003

$1.49

6

HOSE CLAMP, RED

7080003

$1.49

7

Hose, Reservoir

1910404

Unavailable

8

Reservoir

1930854

$35.99

9

Screw

7517916

$6.39

9

Screw

7517916

$6.39

10

Guard, Prop Shaft, Side

5433457

$95.19

11

PIN, COTTER

7661401

$1.49

12

WASHER

7555919

$4.99

12

WASHER

7555919

$4.99

13

BUSHING-PEDAL PIVOT

5431107

$8.79

13

BUSHING-PEDAL PIVOT

5431107

$8.79

14

Mount, Brake

1910375-067

Unavailable

14

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.99

16

Seal

5410988

$4.84

16

Seal

5410988

$4.84

17

LINE, FOOT BRAKE, REAR [See Rear Caliper Mounting Pg. B10, Ref. 6]

-------

Unavailable

18

WASHER, SPRING LOCK

7552801

$1.59

19

Screw

7515179

$2.39

20

Asm., Foot Brake Master Cylinder

1910311

$166.01

21

NUT-5/16-18 NYLOK-Y

7542324

$1.49

22

Rod, Brake

1910377-067

Unavailable

23

SPRING-TORSION,BRAKE

7041750

$8.79

24

Screw

7515321

$1.49
