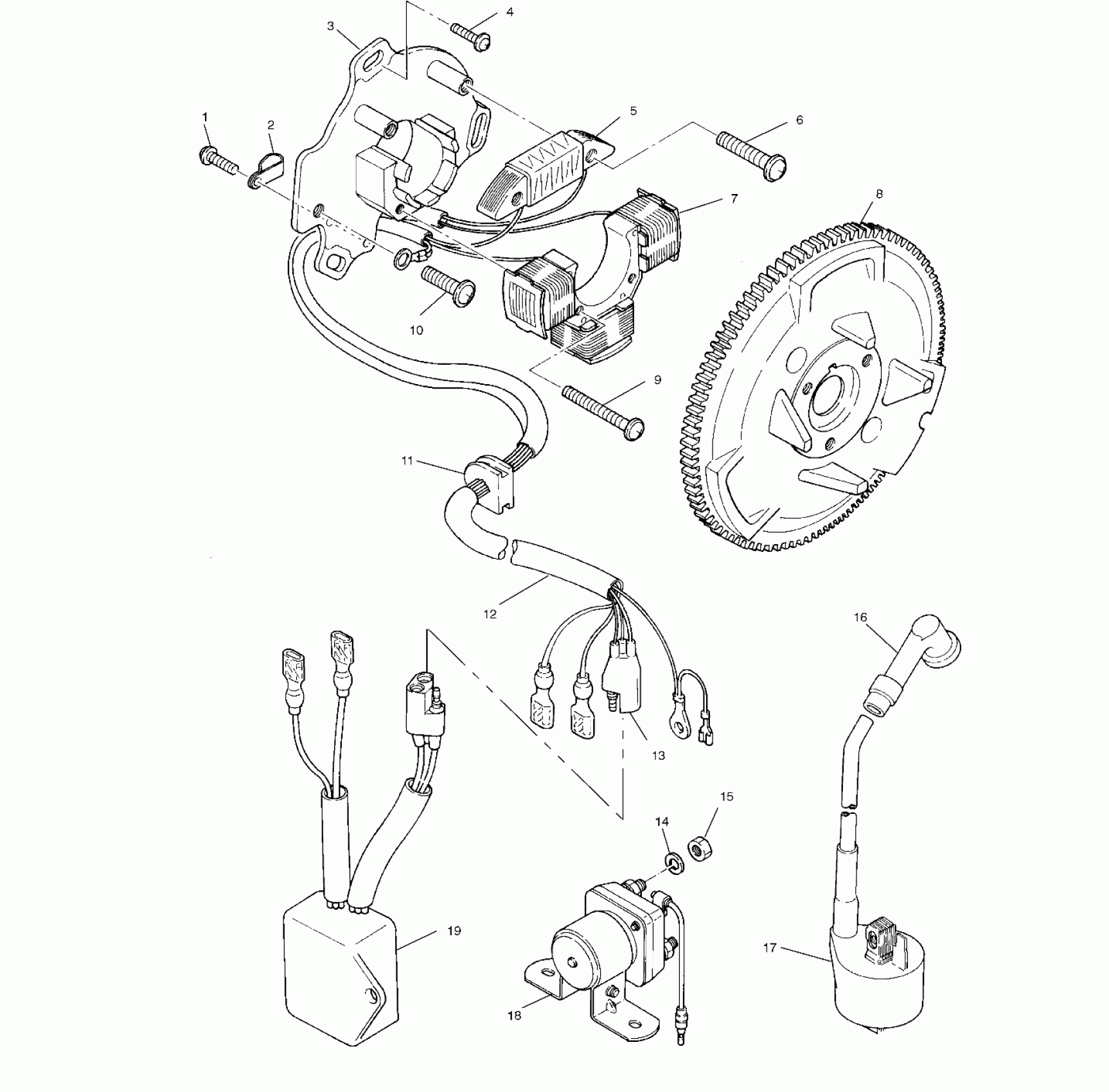

Polaris SCRAMBLER 400 2X4 - A02BA38CA MAGNETO - A02BA38CA (4969936993D04) Diagram

#

Description
Price

1

Screw and Washer

3081256

$3.17

2

Clamp

3081146

$1.19

3

Asm., Plate [Incl. 1-3,5-7,9-13]

3084785

Unavailable

3

Plate, Coil

3084786

Unavailable

4

Screw, Flange

3084766

Unavailable

5

Coil, Exciter

3083422

Unavailable

6

Screw and Washer

3083423

$3.17

7

Stator 1

3084788

Unavailable

8

Flywheel w/Ring Gear

3084784

Unavailable

9

Screw and Washer

3081342

$1.19

10

Screw and Washer

3081260

Unavailable

11

Grommet

3084789

$10.71

12

Harness, Wire

3084787

Unavailable

13

Coupler, 3P

3083909

$23.81

14

Washer, Spring

3080077

$2.38

15

Nut

3083073

$2.38

16

Cap, Spark Plug

4020129

$28.32

17

Coil, Ignition

3083923

Unavailable

18

Switch, Magnetic

3085521

$60.70

19

CDI System

3084790

Unavailable
