Description

Price

-

Kit, Handlebar Block [Incl. 3,16,22]

2200774

Unavailable

1

ASM., THROTTLE CONTROL [See Controls-Throttle Asm./Cable Pg. B6, Ref. 3]

-------

Unavailable

2

Handlebar

1820934-067

Unavailable

3

SCREW

7515189

Unavailable

4

Pad, Handlebar

5521181

Unavailable

5

Pad, Handlebar Cover

2682454

$39.67

6

ASM., MASTER CYLINDER [See Controls-Master Cylinder/Brake Line Pg. B7 for Details]

-------

Unavailable

7

Spacer, Switch, LH

5433903

Unavailable

8

Switch, Handlebar, Hi/Lo/Off

4010423

Unavailable

9

SCREW, SET

7517625

$4.79

10

PLUG, HOLE

5432952

$5.59

11

Grip, Handlebar

5433834-070

$24.27

12

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

12

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

13

NUT-5/16-18 NYLOK-Y

7542324

$1.49

14

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

15

Washer, Flat

7558301

$1.49

16

Nut, Nylok

7542122

$1.49

16

Nut, Nylok

7542122

$1.49

17

Bracket, Headlight

5241973-067

Unavailable

18

Clip, Cable Retaining

7080631

$6.29

19

Bulb, Headlamp

4030061

Unavailable

19

Headlight

2431016

Unavailable

20

Guard, Headlight

1040579-067

Unavailable

21

BOLT

7512240

$3.99

22

Block, Handlebar Retainer

5630616-067

Unavailable

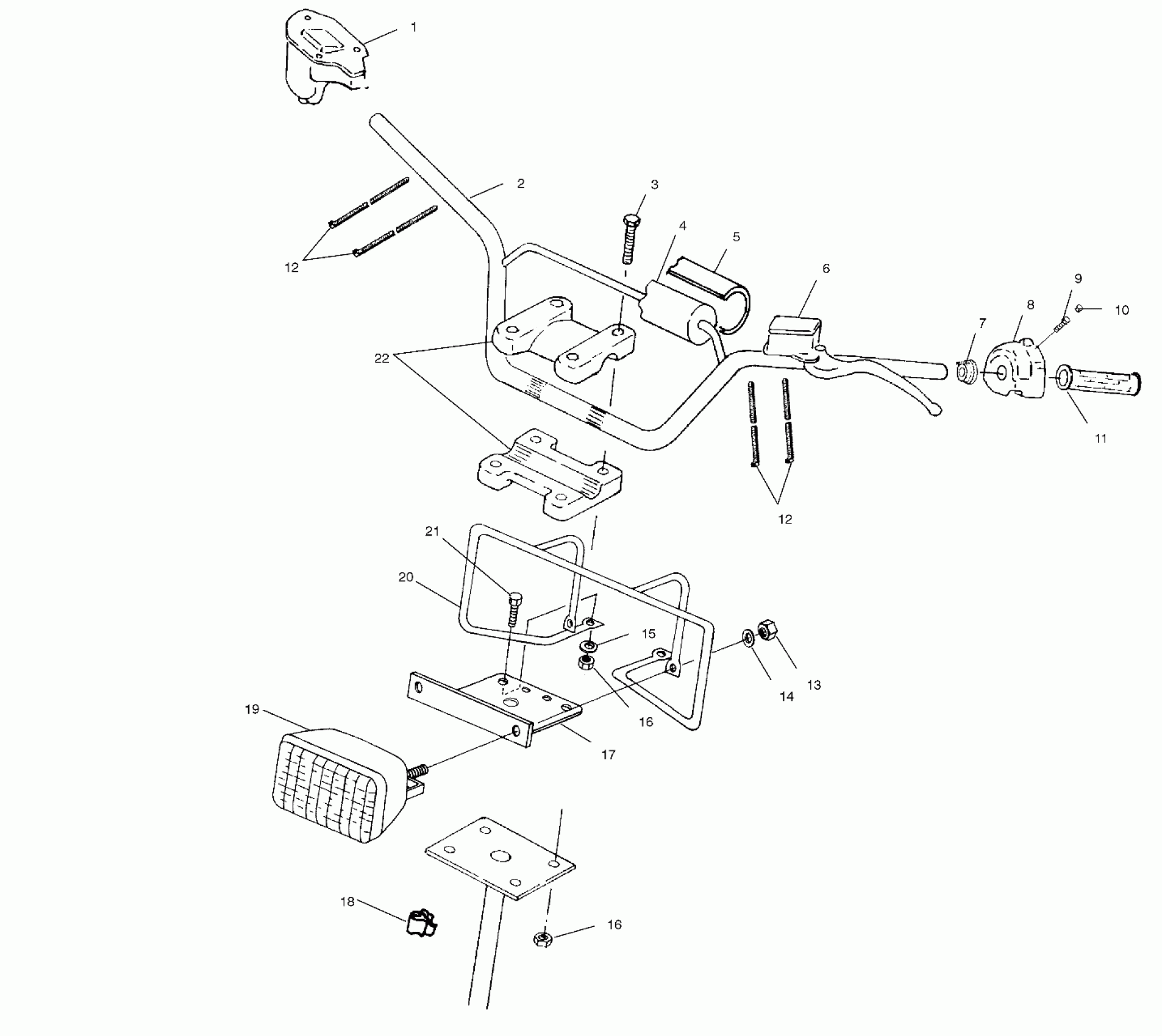

Polaris SCRAMBLER 400 2X4 - A02BA38CA HANDLEBAR/HEADLIGHT - A02BA38CA (4969936993B04) Diagram

Kit, Handlebar Block [Incl. 3,16,22]

ASM., THROTTLE CONTROL [See Controls-Throttle Asm./Cable Pg. B6, Ref. 3]

Handlebar

SCREW

Pad, Handlebar

Pad, Handlebar Cover

ASM., MASTER CYLINDER [See Controls-Master Cylinder/Brake Line Pg. B7 for Details]

Spacer, Switch, LH

Switch, Handlebar, Hi/Lo/Off

SCREW, SET

PLUG, HOLE

Grip, Handlebar

CABLE-TIE,DIA12-50MM,WTHR-RES.

CABLE-TIE,DIA12-50MM,WTHR-RES.

NUT-5/16-18 NYLOK-Y

WASHER-.344X.688X.063 FL-Y

Washer, Flat

Nut, Nylok

Nut, Nylok

Bracket, Headlight

Clip, Cable Retaining

Bulb, Headlamp

Headlight

Guard, Headlight

BOLT

Block, Handlebar Retainer
