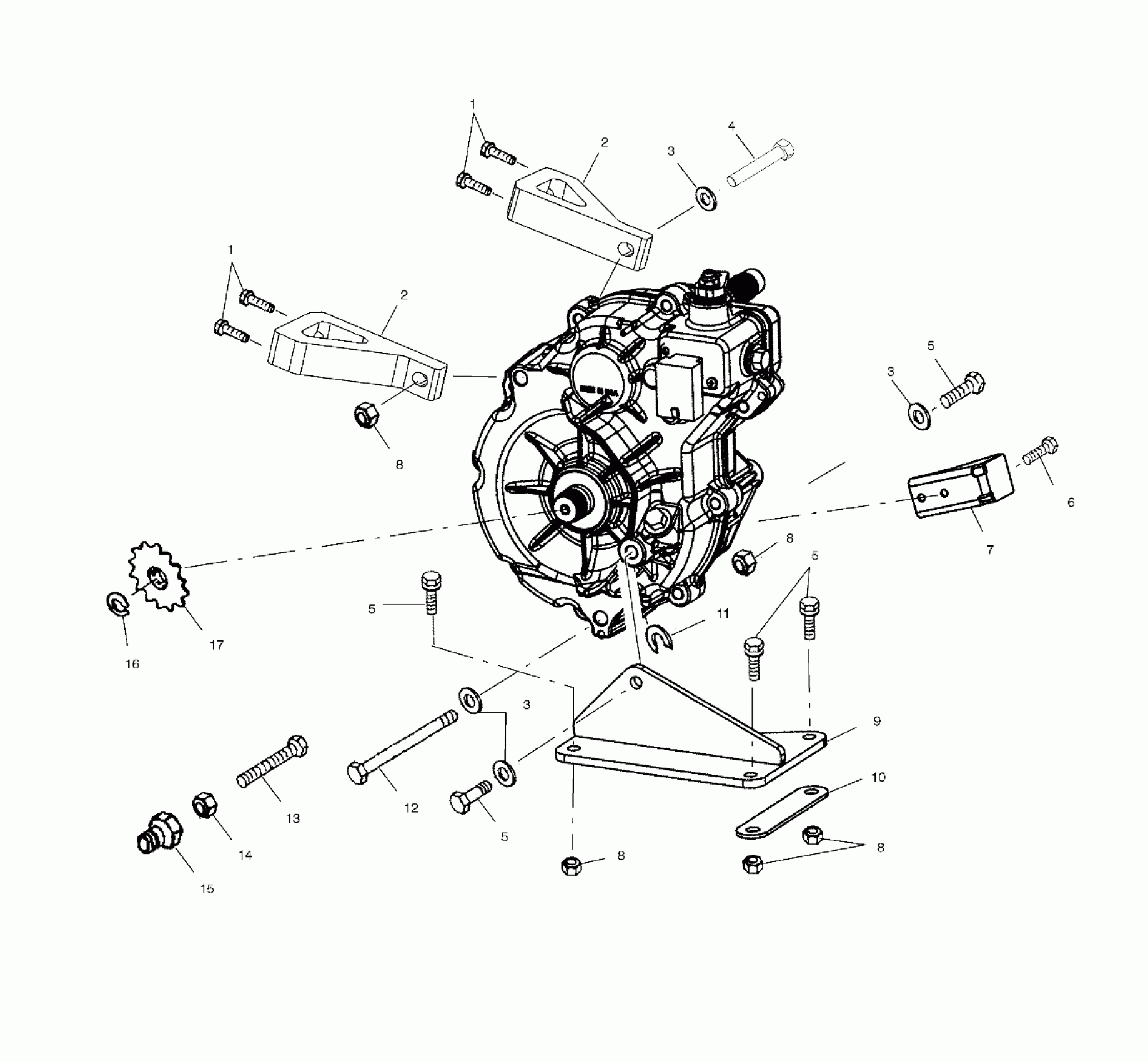

Polaris SCRAMBLER 400 2X4 - A02BA38CA GEARCASE MOUNTING - A02BA38CA (4969936993C09) Diagram

#

Description
Price

1

SCREW

7517632

$5.59

1

SCREW

7517632

$5.59

2

Mount, Transmission, Rear

5132046

$35.99

2

Mount, Transmission, Rear

5132046

$35.99

3

Washer

7555806

$1.49

3

Washer

7555806

$1.49

3

Washer

7555806

$1.49

4

Screw

7517642

$7.99

5

Screw

7512492

$1.49

5

Screw

7512492

$1.49

5

Screw

7512492

$1.49

5

Screw

7512492

$1.49

6

Screw

7512325

$2.39

7

Bracket, Stop, Torque

1012785-067

$12.39

8

Nut, Flange

7547089

$4.79

8

Nut, Flange

7547089

$4.79

8

Nut, Flange

7547089

$4.79

8

Nut, Flange

7547089

$4.79

9

Mount, Transmission

1012886-067

Unavailable

10

Spacer

5243296-067

$5.91

11

Shim [.020]

5210764

Unavailable

11

Shim [.010]

5211065

Unavailable

11

Shim [.030]

5211517

Unavailable

12

SCREW

7517646

$7.19

13

Screw

7517631

$5.59

14

Nut

7542440

Unavailable

15

PLUG, DRAIN [See Gearcase Pg. C8, Ref. 36]

-------

Unavailable

16

RING, RETAINING

7710434

$3.99

17

Sprocket, 13T

3221041

$43.99
