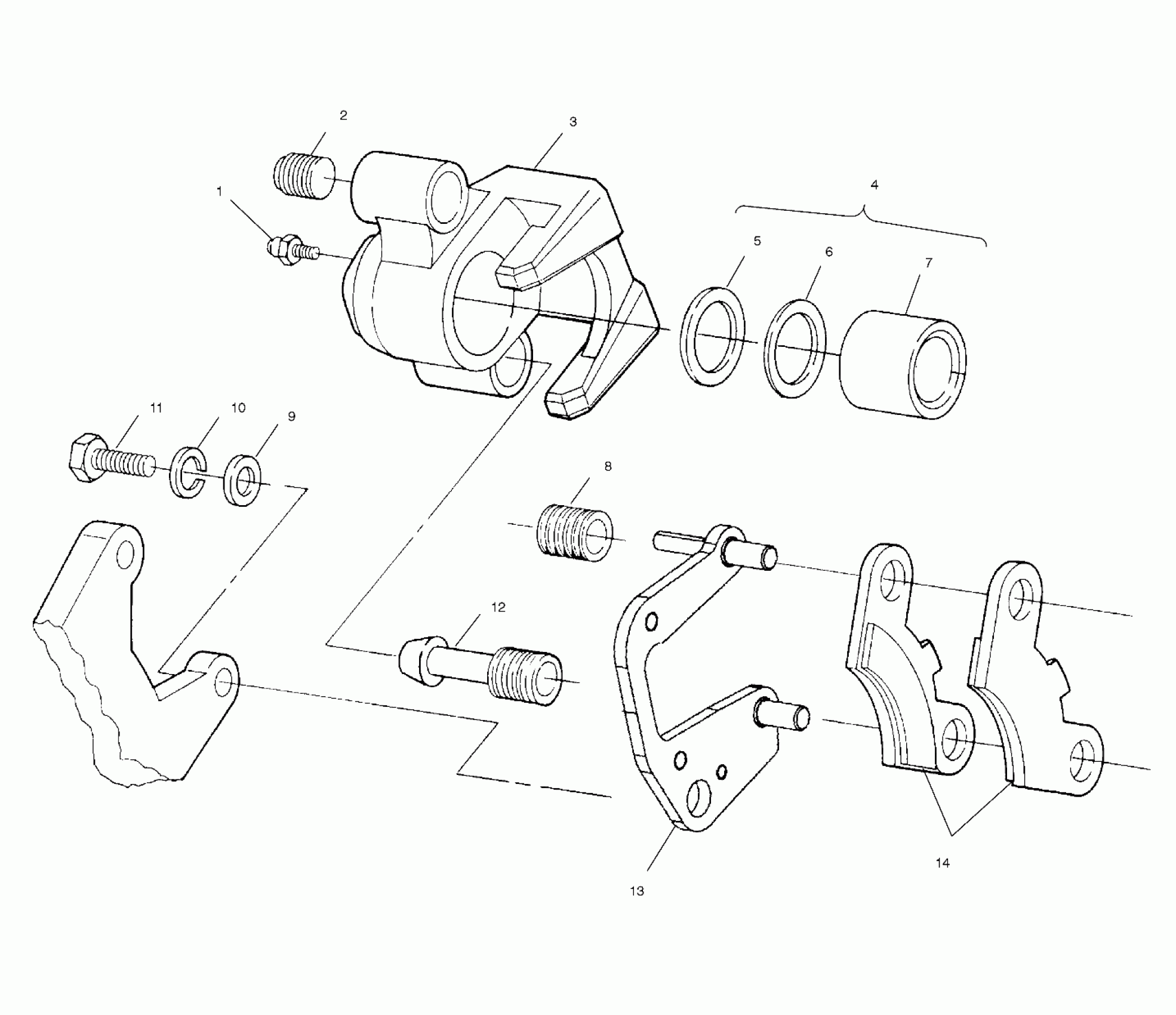

Polaris SCRAMBLER 400 2X4 - A02BA38CA FRONT BRAKE - A02BA38CA (4969936993B02) Diagram

KIT-BOOT,FRONT BRAKE [Incl. 8,12]

1930642

$11.19

Asm., Front Brake Caliper, LH [Incl. 1-8]

1910547

Unavailable

Asm., Front Brake Caliper, RH [Incl. 1-8]

1910548

Unavailable

Screw, Bleeder

7080352

$3.19

Screw, Socket Set

7515489

$5.59

Caliper, Brake, LH [If built after 5/02/02]

5133407

Unavailable

Caliper, Brake, RH [If built after 5/02/02]

5133408

Unavailable

Caliper, Brake, RH [If built before 5/02/02]

5132961

Unavailable

Caliper, Brake, LH [If built before 5/02/02]

5132960

Unavailable

Kit, Piston and Seal [Incl. 5-7]

1930665

$55.99

SQUARE RING-MOLDED (.094) [.094]

5410779

$10.51

Ring, Square, Molded [.103 x .134]

5410780

$10.51

PISTON, BRAKE, LONG

5132294

$54.04

Boot, Pin Seal

5410494

Unavailable

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

WASHER, SPRING LOCK

7552901

$1.49

SCREW

7512365

$1.49

Boot, Bushing

5410495

Unavailable

Mount, Caliper

1910412

Unavailable

Kit, Brake Pad, Front

2201398

Unavailable
