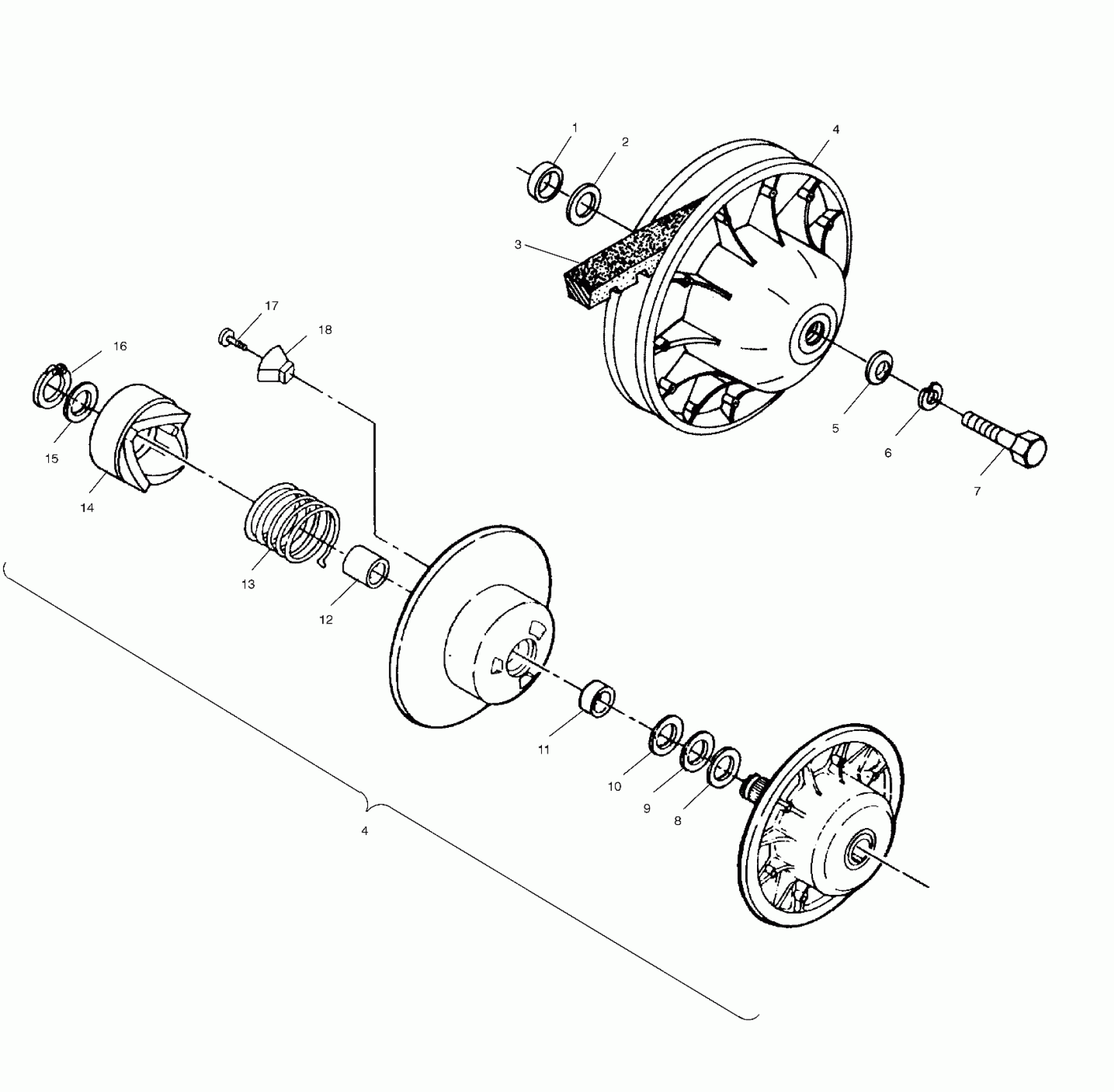

Polaris SCRAMBLER 400 2X4 - A02BA38CA DRIVEN CLUTCH - A02BA38CA (4969936993B09) Diagram

#

Description
Price

1

Spacer, Driven Clutch

5010266

Unavailable

2

BUSHING [3 MAX]

7556120

Unavailable

3

BELT, DRIVE

3211077

$75.99

4

Asm., Driven Clutch [Incl. 8-12,15-18]

1322180

Unavailable

4

Asm., Driven Clutch [Incl. 8-12,15-18]

1322180

Unavailable

5

Washer, Domed

5220646

$2.38

6

WASHER, SPRING LOCK

7552901

$1.19

7

BOLT

7515382

$2.38

8

Washer [.020]

7555898

Unavailable

9

Washer [.025]

7556076

Unavailable

10

Washer (.030]

7556804

Unavailable

11

BEARING, MOVEABLE, 1/2 INCH

3576504

$23.81

12

BUSHING-MOVEABLE, 1.0 DU

3576511

$27.78

13

Spring, Clutch

7041198

$56.65

14

RAMP, STATIONARY

5131446

$93.08

15

Spacer

5210752

$1.59

16

Ring, Retaining

7710448

$3.17

17

Bolt

7511854

$1.19

18

Button, Ramp

5430766

$6.35
