Description

Price

1

Screw

7517659

$3.99

1

Screw

7517659

$3.99

2

Asm., Fan and Motor

2410123

$180.79

3

U-Clip

7670111

Unavailable

3

U-Clip

7670111

Unavailable

4

Shroud

5434043

$74.39

5

Spacer, Radiator Mount

5020937

Unavailable

6

Mount, Rubber

3110032

$7.99

7

Washer, Flat

7558301

$1.49

8

Nut, Nylok

7542122

$1.49

9

CLAMP, HOSE

7080614

$7.19

9

CLAMP, HOSE

7080614

$7.19

10

Hose, Engine, Upper

5411986

Unavailable

11

Clamp

7080826

$4.79

11

Clamp

7080826

$4.79

12

Sensor, Thermal w/Harness

4010161

$103.99

13

Cap, Pressure

1240093

Unavailable

14

Radiator

1240090

Unavailable

15

Washer, Flat

7558301

$1.49

16

Screw

7512240

$3.99

17

WASHER, SPRING LOCK

7552801

$1.59

18

Valve, Drain

7052296

Unavailable

19

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

20

Strap, Panduit, Panel Tie

7080890

$5.75

21

MOUNT, CABLE TIE

7080965

$7.19

22

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

23

Guard, Plastic Hose

5521550

Unavailable

24

Hose, Engine, Lower

5411989

Unavailable

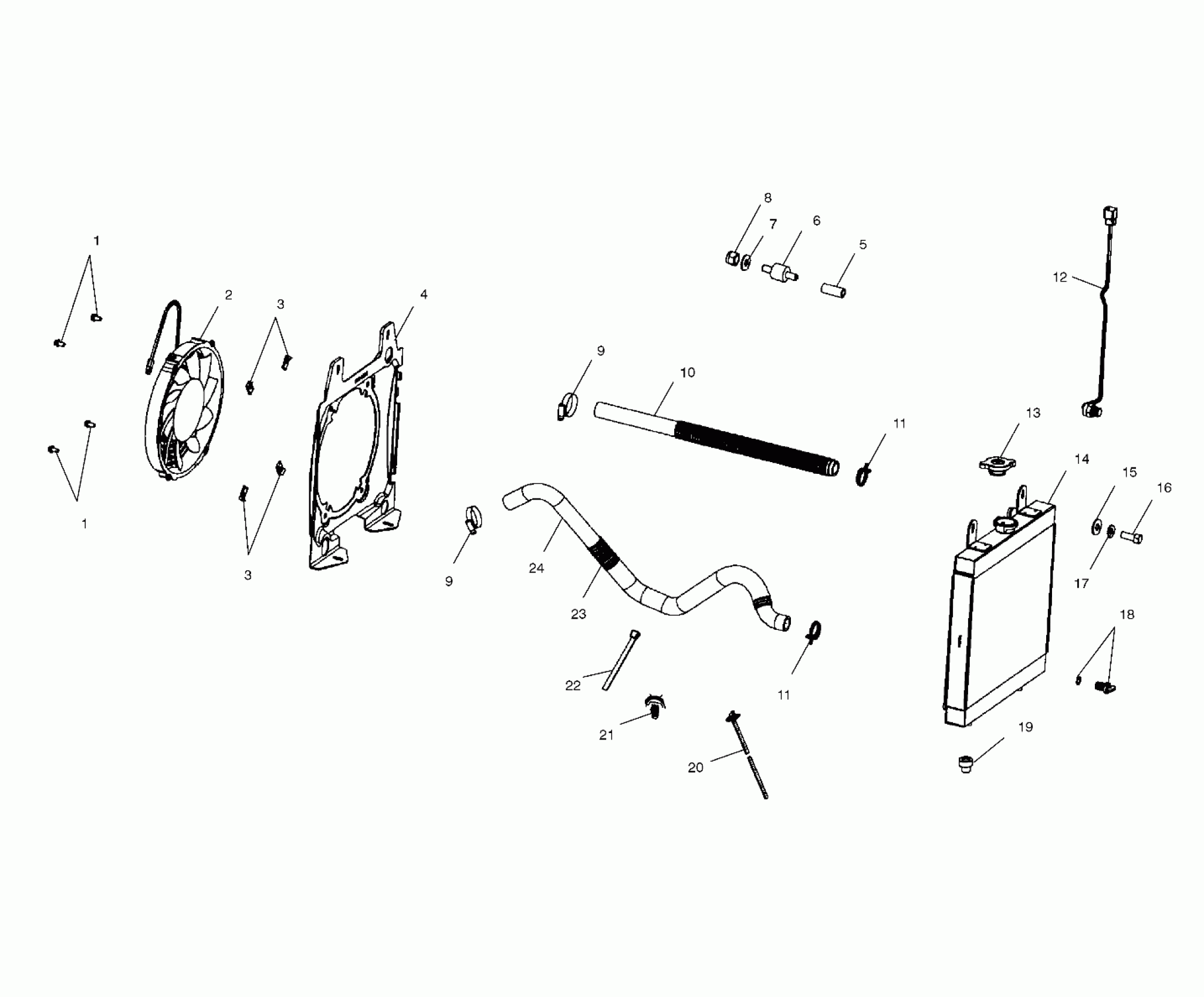

Polaris SCRAMBLER 400 2X4 - A02BA38CA COOLING SYSTEM - A02BA38CA (4969936993A07) Diagram

Screw

Screw

Asm., Fan and Motor

U-Clip

U-Clip

Shroud

Spacer, Radiator Mount

Mount, Rubber

Washer, Flat

Nut, Nylok

CLAMP, HOSE

CLAMP, HOSE

Hose, Engine, Upper

Clamp

Clamp

Sensor, Thermal w/Harness

Cap, Pressure

Radiator

Washer, Flat

Screw

WASHER, SPRING LOCK

Valve, Drain

BUSHING-MOUNT,LOWER RADIATOR

Strap, Panduit, Panel Tie

MOUNT, CABLE TIE

CABLE-TIE,DIA12-50MM,WTHR-RES.

Guard, Plastic Hose

Hose, Engine, Lower
