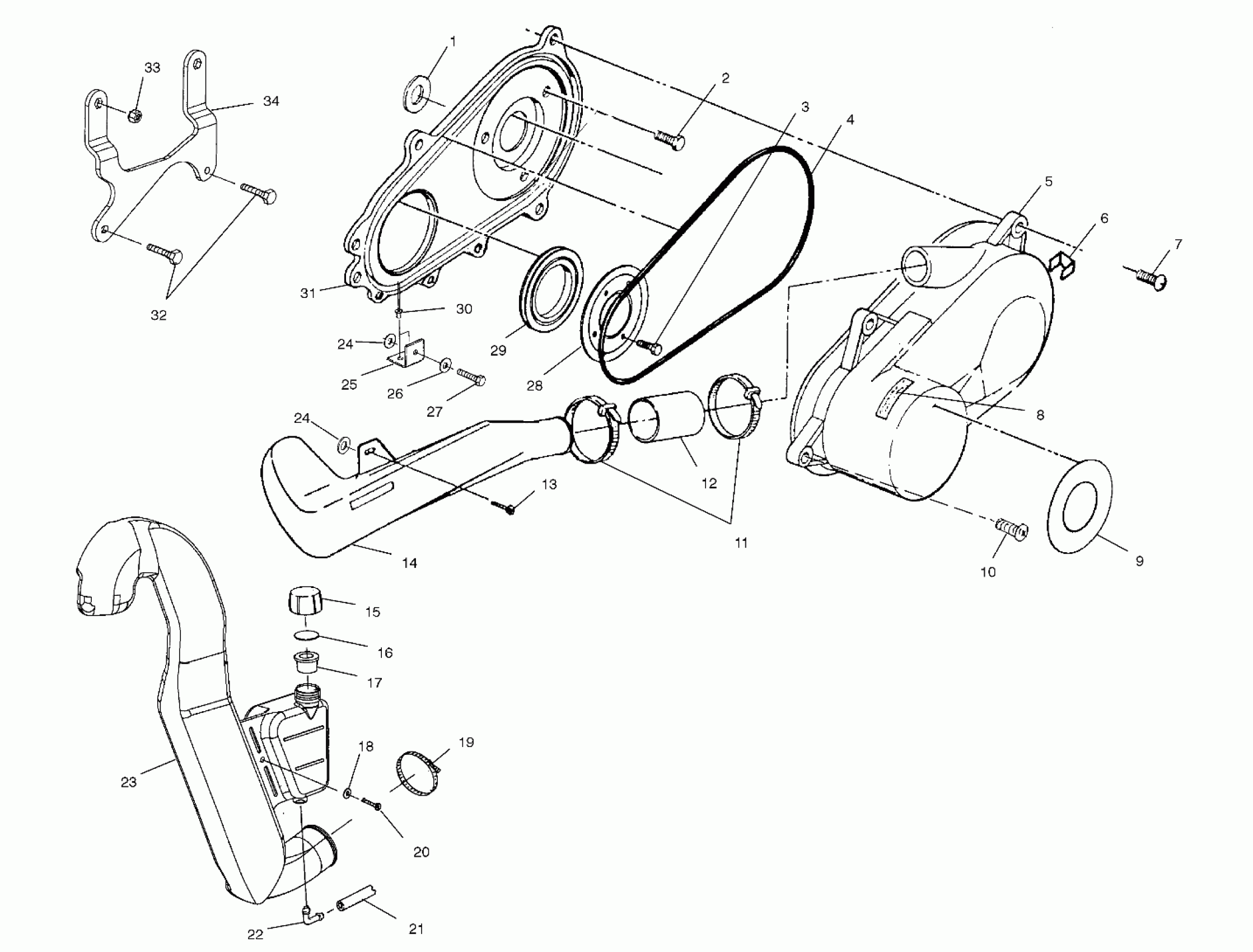

Polaris SCRAMBLER 400 2X4 - A02BA38CA CLUTCH COVER - A02BA38CA (4969936993C01) Diagram

#

Description
Price

1

Seal, Cover, Inner

5411180

$24.27

2

Screw

7517860

Unavailable

3

SCREW AND WASHER [SEE CRANKCASE AND CYLINDER PG. C12, REF. 15]

-------

Unavailable

4

Seal, Cover, Clutch

5521301

$30.88

5

Cover, Clutch, Front

5433542

$179.99

6

Clip, Cover, Clutch

7670051

$2.99

7

Screw

7512093

$1.49

8

Decal, Warning, Clutch Cover

7078689

Unavailable

9

Decal, Automatic Transmission

7074782

Unavailable

10

SCREW

7512094

$1.59

11

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

12

Boot, Intake, Clutch

5410421

$11.19

13

Screw

7517916

$6.39

14

Duct, Clutch, Air Outlet

5432615

Unavailable

15

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

16

GASKET-OVERFLOW CAP

5810279

$2.41

17

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

18

Washer

7555783

$3.99

19

Clamp, Band, Narrow

7080656

Unavailable

20

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

21

FUEL LINE

8450003-1525

Unavailable

22

Fitting, Barbed, 90 Degree

7052065

$7.19

23

Duct, Clutch Inlet

5433342

Unavailable

24

Washer, Nylon

7555932

$2.39

24

Washer, Nylon

7555932

$2.39

25

Bracket, Clutch Cover

5242693-067

Unavailable

26

Washer

7555935

$2.39

27

Screw

7512098

$1.59

28

Bracket, Seal, Retainer

5222446-067

Unavailable

29

Seal, Case, Cover

5410575

Unavailable

30

RIVET-3/16-.090-.290

7661637

$1.49

31

Kit, Inner Clutch Cover [Incl. 7,10]

2201159

$141.65

32

SCREW

7517386

$1.49

33

Nut

7547067

$6.23

34

Bracket, Clutch Cover

5242208-067

Unavailable
