- SCRAMBLER 400 2X4 - A02BA38CA
CARBURETOR - A02BA38CA (4969936993C14)

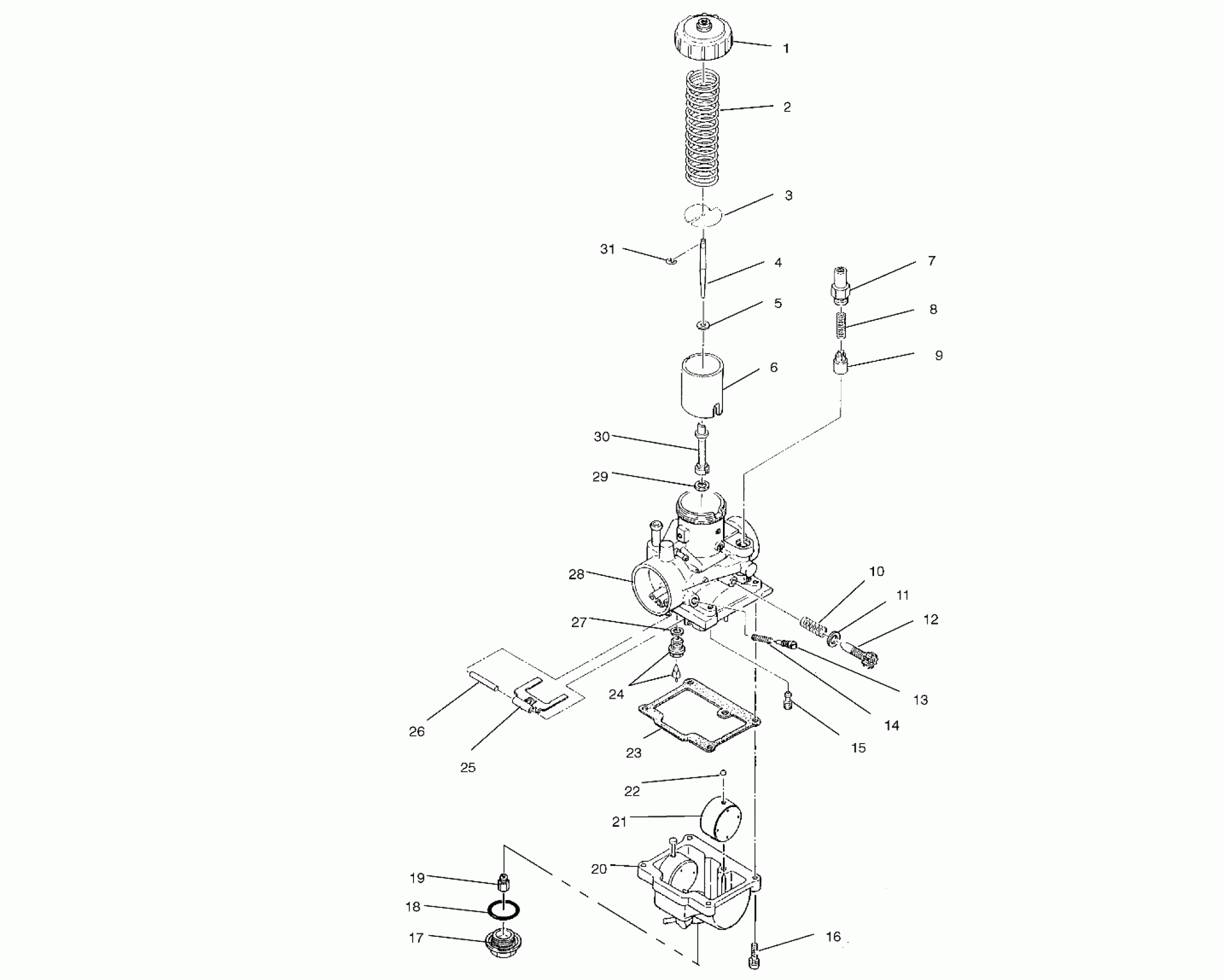

Polaris SCRAMBLER 400 2X4 - A02BA38CA CARBURETOR - A02BA38CA (4969936993C14) Diagram
#
Description
Price
1
Asm., Top
3130184
$32.37
2
Spring, Throttle
3130496
$28.32
3
Plate, Throttle
3130027
$9.70
4
Needle, Jet [6CEY6-3]
3130476
$24.27
5
Packing
3130355
$7.19
6
Valve, Throttle [1.5]
3130494
Unavailable
7
Cap, Plunger
3130199
$28.32
8
Spring
3130006
$8.89
9
Asm., Plunger
3130328
$32.37
10
Spring, Throttle Adjuster
3130436
Unavailable
11
Washer
3130447
Unavailable
12
Screw, Throttle Stop
3130009
$19.99
13
Adjuster
3130011
$19.99
14
Spring, Air Adjuster
3130012
$8.89
15
Jet, Pilot [#25]
3131325
Unavailable
16
Screw
3130025
$3.19
17
Screw, Guide
3130432
$27.99
18
O-RING
3130239
Unavailable
19
Jet, Main [#240]
3130549
Unavailable
20
Asm., Float Chamber
3130443
Unavailable
21
Asm., Float
3130430
$43.56
22
Cap
3130237
$4.03
23
Gasket
3130020
$16.17
24
Valve, Needle [2.5]
3131385
$67.99
25
Arm, Float
3130018
$24.27
26
PIN, FLOAT
3130361
$8.89
27
Packing
3130047
$4.84
28
Asm., Carburetor [Incl. 1-31]
3131404
Unavailable
29
Ring, Main Jet
3130596
Unavailable
30
Jet, Needle
3130429
Unavailable
31
E-Ring
3130003
Unavailable
